aEmpress - aEMP

Elegant area luminaires
Configure this product Features Specifications Videos

Product Overview

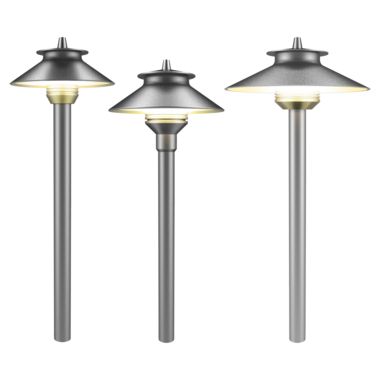

The aEmpress range are area luminaire available in 1 or 3 LED. Available in copper/brass or aluminum constructions. An RGBW version is also available for use with ZDClink® Controllers.

Features

Total Lumens 51-210 lm Power Consumption 2.2 W | 4.4 W | 7.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | RGBW: 11-15 Vac/dc, 50/60 Hz Installation Requirements Downward direction only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 4.0 lb (1.8 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Darksky Color Options Warm White RGBW Wildlife-friendly Quickship Quickship Available Data Sheet

Specifications

Videos
Product Highlights | Path Lights
Introducing the Essential Series range of path lights from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Downloads

Data Sheet Install Guide
IES Files aEmpress ZIP (5.08 KB) DXF Files aEmpress ZIP (39.05 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

aEMP _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise aEmpress below

Input Voltage

12 Vac/Vdc

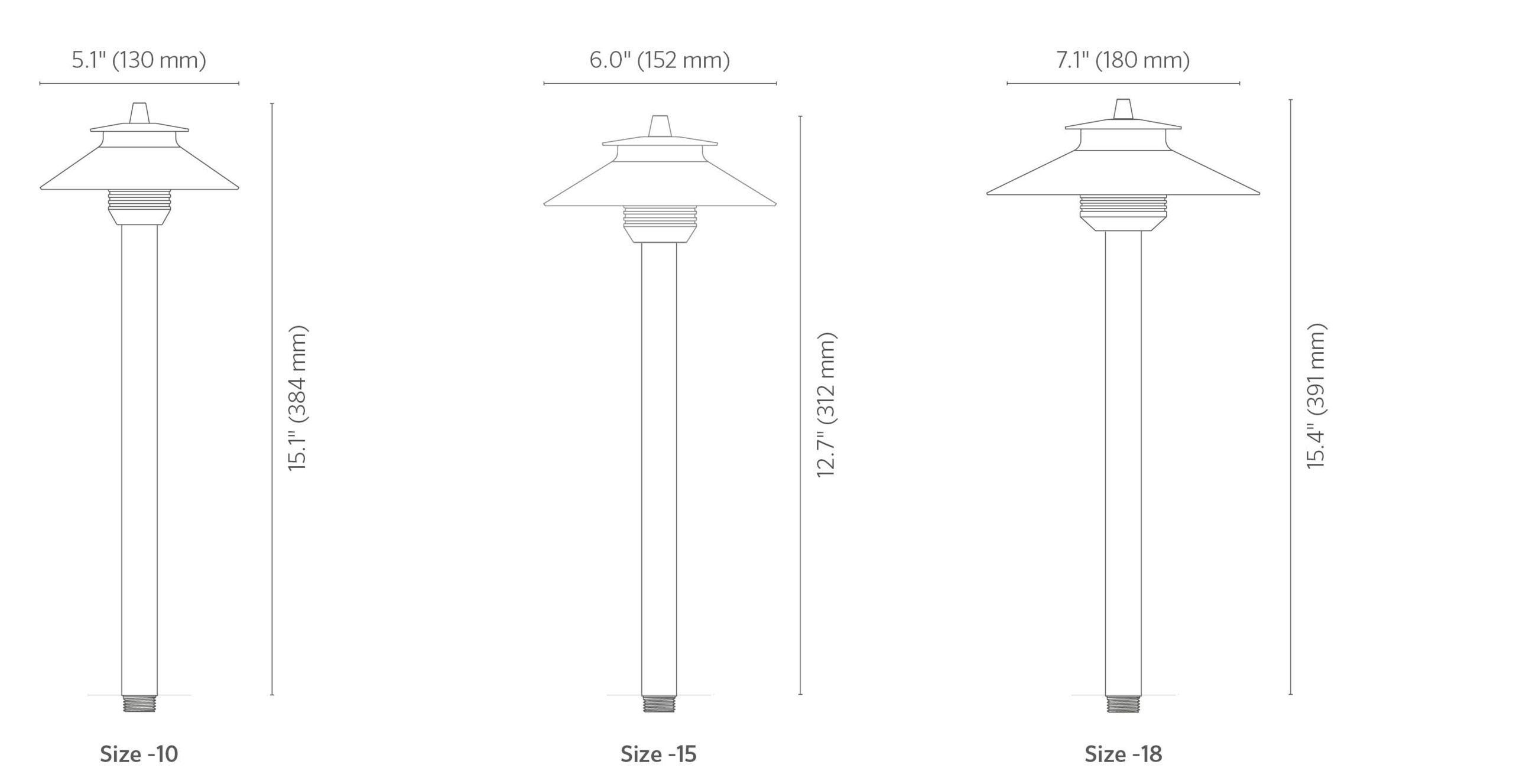

Size

Required

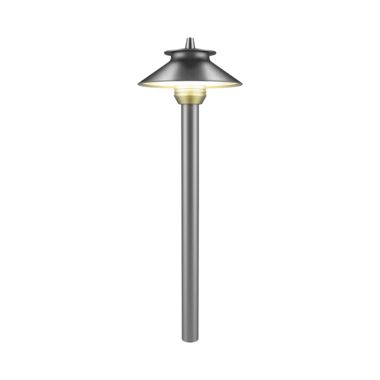

5.1" (130 mm) diameter (10)

5.1" (130 mm) diameter (10)

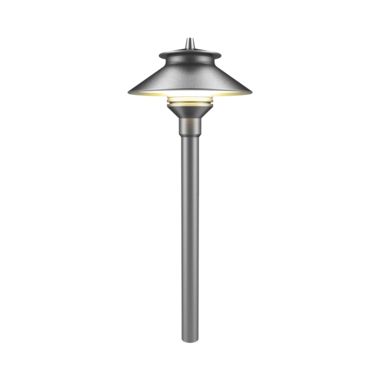

6.0" (152 mm) diameter (15)

6.0" (152 mm) diameter (15)

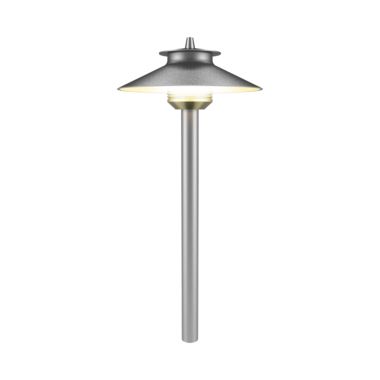

7.1" (180 mm) diameter (18)

7.1" (180 mm) diameter (18)

Material

Required

Copper/Brass

Aluminum (A)

Die-cast A380 aluminum with stainless steel hardware. Available in powder-coated finishes only.

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W (1LED)

51-83 lm

2.2 W

51-83 lm, for ZD control

4.4 W (3LED)

162-210 lm, Size -15 and -18 Only

4.4 W

162-210 lm, for ZD control, Size -15 and -18 0nly

4.5 W

74 lm, Wildlife-friendly, for ZD control, Size -18 only

7.2 W

For ZDC control, Size -15 and -18 only

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Wildlife-Friendly (T)

Wildlife-Friendly (T)

Amber (585 to 595 nm)

Height

Required

12" (300 mm) Riser (12R)

18" (450 mm) Riser (18R)

24" (600 mm) Riser (24R)

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Natural Copper (CU)

Natural Copper (CU)

More info
Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Included with product.

Required

ProAim™ Ratcheting Stake

ProAim™ Ratcheting Stake

10" (250 mm) adjustable stake for ½"-14 NPSM threads

More info

Accessories

Mounting & Installation

Specify Separately

Super J-Box Stake

Super J-Box Stake (SJ)

2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake.

More info
Post Mount

Post Mount (PM)

Suitable for use on 1/2" NPSM ground-mount luminaires and is specified separately.

More info
Ground Mount

Ground Mount (GM)

The Ground Mount is a 4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit.

More info
Versabox®

Versabox® (VB-050)

A 1.5" (38 mm) brass cap with ½"-14 NPSM threads.

More info
Line Mount

Line Mount (LNM)

In-ground mounting accessory with cavity for mini transformers.

More info

Riser & Couplings

Specify Separately

Straight Riser

Straight Riser (‒)

An aluminum straight riser with 0.8'' (12 mm) OD and 1/2''-14 Male NPSM x2 threads.

More info
Straight Coupling

Straight Coupling (COUP)

An aluminum straight coupling 1.3" (32 mm) x 2.0" (51 mm).

More info
Copper Straight Riser

Copper Straight Riser (—)

1.2'' (30 mm) OD and 1/2''-14 Male and Female NPSM threads

More info

Power Supplies

Specify Separately

Multi-Tap Transformer

Multi-Tap Transformer (PROLINK)

The industry's most reliable multi-tap transformer.

More info
ZDClink® Lighting Controller

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer

Dimmable Mini Transformer (ST-120-DIM)

60 W, 120 V to 12 Vac step-down transformer.

More info
Non-Dimmable Mini Transformer

Non-Dimmable Mini Transformer (ST-UV)

30 W universal voltage step-down transformer.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

More info

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info
Heat Shrink Wire Connectors - Medium

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee: Essential Series

Custom Color Setup Fee: Essential Series (Custom RAL Color Setup)

Custom RAL colour setup fee

More info
