dLuna-7

dLuna-7 - dLUN7

Stylish directional luminaire in 3, 6, or 9 LED.

Configure this product Features Specifications Videos

Product Overview

The dLuna-7 is a stylish directional luminaire with superior illumination and precise engineering. An RGBW version is also available for use with ZDClink^® Controllers.

Features

Total Lumens 558 lm Power Consumption 4.4 W | 9.3 W | 12.2 W | 11.0 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac/dc, 50/60 Hz Installation Requirements Upward Direction Only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 5.1 lb (2.3 kg) Compliance

Color Options Warm White

Warm White

RGBW

Quickship

Data Sheet

Specifications

Videos

Product Highlights | Directional

Introducing the Essential Series range of directional luminaires by Lumascape.

Webinar | Essential Series

Watch our short webinar introducing the Essential Series by Lumascape.

Downloads

Data Sheet Install Guide

IES Files dLuna-7 ZIP (9.73 KB) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

dLUN7 _ _ _ _ _ _ _ _

Login to view pricing

Reset to Default Clear Selected Add

Customise dLuna-7 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

4.4 W (3LED)

235 lm

9.3 W (6LED)

421 lm

12.2 W (9LED)

558 lm

12.2 W

558 lm, for ZD control

11.0 W

For ZDC control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

For ZDC control

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Spot (SP)

20º beam angle

Flood (FL)

35º beam angle

Flood

45º beam angle, for ZDC control

Wide Flood (WF)

60º beam angle

Compliance

Required

North America

UL listed

International (E)

International (E)

Bracket mount, UL listed and CE approved. Required for shipment outside of North America

Shielding

Required

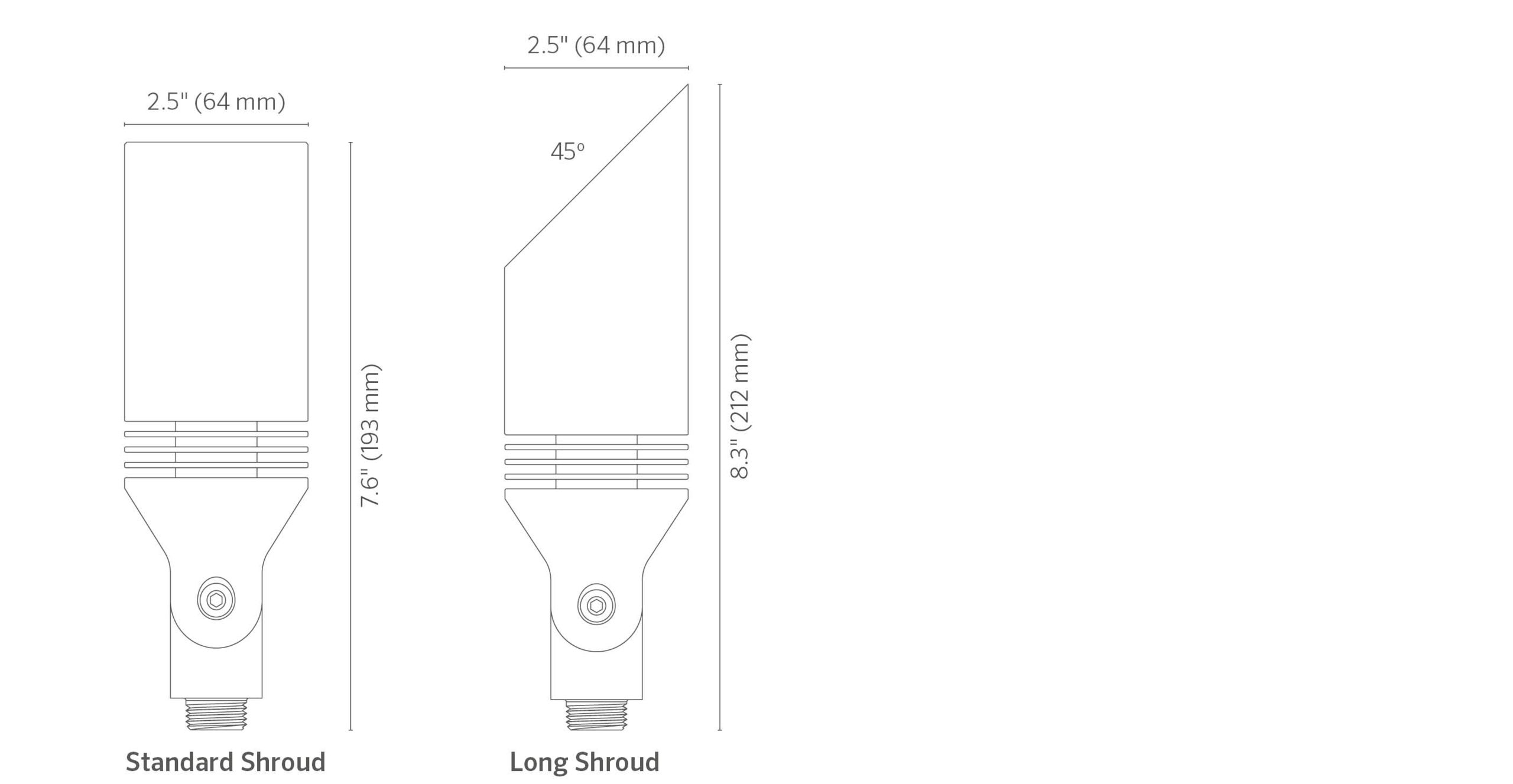

Standard Shroud

90º Straight Shroud

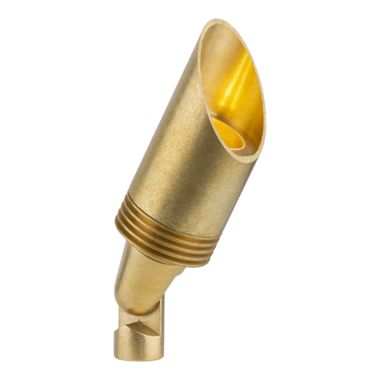

Long Shroud (LS)

45º Angled Shroud

Finish

Required

Natural Brass (BS)

Natural Brass (BS)

Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info

Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info

Mounting & Installation

Included with product.

Required

ProAim™ Ratcheting Stake

ProAim™ Ratcheting Stake

10" (250 mm) adjustable stake for ½"-14 NPSM threads

More info

Accessories

Mounting & Installation

Specify Separately

Lens Accessories

Specify Separately

Power Supplies

Specify Separately
