Centria C3

C3
LS1015

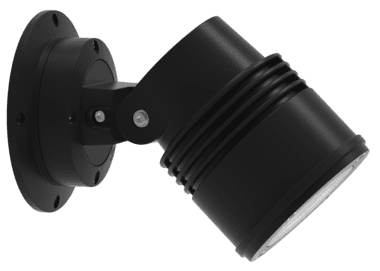

A compact and versatile surface mount luminaire with remote driver
Configure this product

Product Overview

The LS1015 is one of the most compact and versatile surface mount luminaires in its class, featuring light output and energy efficiency surpassing 35W Metal Halide. Available in white, colour changing and tunable white light engines, the LS1015 is packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations including two axes of adjustment, making it ideal for direct or indirect applications.

Accessories

LS6104 Glare Shield



Specifications

Features

Lumen Output 1,655lm Power Consumption 25W Control Protocol PowerSync (DMX/RDM, 0-10V) IP Rating IP66 / IP67 IK Rating IK7 Colour Options Cool White Warm White RGBW RGBA Tunable White Download Datasheet

Product Configurator

Customise Centria C3 below

Colour System

Single Colour

Single Colour

Colour Changing

Colour Changing

Tunable White

Tunable White

Light Engine

Required

22W (22W)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (BLU)

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4CW)

Dynamic Colour (4CW)

RGBW

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

40° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

10° x 40°

Wide Horizontal (WH)

Wide Horizontal (WH)

60° x 20°

Wide Vertical (WV)

Wide Vertical (WV)

20° x 60°

Input Voltage

Required

30 - 48V DC (13)

30 - 48V DC (13)

Low Voltage

Control

Required

Non dimmable (ND)

For single colour, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and colour changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required - order separately.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult factory for pricing

More info

Accessories

External Glare Shield

External Shield - Black (LS6104-BL)

External Shield - Black (LS6104-BL)

External Shield - Anodic Silver (LS6104-SL)

External Shield - Anodic Silver (LS6104-SL)

External Shield - White (LS6104-WT)

External Shield - White (LS6104-WT)

External Shield - Custom Colour (LS6104-CC)

External Shield - Custom Colour (LS6104-CC)

Order to match luminaire powder coat colour.
