Erden Brass EB2

Erden Brass EB2 - LS3320

An architectural-grade, medium-powered in-ground

Configure this product Features Specifications Accessories

Product Overview

The Erden Brass EB2 is a medium-powered in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols using line voltage. Available in white, color-changing and tunable white light engines.

Features

Lumen Output 810 lm Power Consumption 9 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage Low Voltage 30 to 48 Vdc Control Protocol DMX/RDM, Artnet Weight 4.0 lbs (1.8kg) Drive-Over With OptiClear lens and pre-installation kit (LS647-K) IP Rating IP68 IK Rating IK8 Static Load Rating 6,614 lb (3,000 kg) Environment Inherently protected, suitable for use in poured concrete Compliance

Color Options Warm White

Data Sheet

Specifications

Accessories


LS6388	Pre-Installation Kit
LS6389	Pipe Clamp

Downloads

Data Sheet

LS3320_LS3326_LS3720_DB_IN_____250203.pdf PDF (1.96 M) LS3320_LS3326_LS3720_PI_IN_____250125.pdf PDF (683.37 KB) LS3320_LS3326_LS3720_CM_IN_____250203.pdf PDF (338.41 KB) DXF Files LS332x.zip ZIP (499.12 KB)

Technology

Product Configurator

LS3320 _ _ _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Erden Brass EB2 below

Installation Type

Select the installation type you require.

Required

Pipe Clamping Kit

Pre-Installation

Direct Burial

Light Engine

Required

9 W (09D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Lens

Required

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round flush type, stainless steel, polished (D)

Round flush type, brass, tumbled (P)

Round flush type, brass, tumbled with glare shield (U)

Round flush, stainless steel, polished (M)

Round flush, brass, tumbled (K)

Round flush, brass, tumbled with glare shield (V)

Connection Type

For Ingrounds

Required

½” NPT Adaptor (82)

½” NPT Adapter with hook up wire for hard wired installations, includes MicroAntileach

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

12°

Narrow (NR)

14°

Narrow Medium (NM)

20°

Narrow Medium (NM)

25°

Medium (ME)

35°

Wide (WD)

45°

Wide (WD)

50°

Wide Flood (WF)

55°

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

60° x 20°

Internal Accessory

Internal Accessories for LS332x

Required

Wall Wash Lens (W)

Internal Louver (L)

No Internal Accessory (N)

Housing Depth

Required

Pre-Install Blockout (23)

More info

Direct Burial (21)

More info

Pipe Clamping Kit (26)

Cable Entry

Required

Side (N)

Bottom (Q)

Input Voltage

Required

30 to 48 Vdc (13)

Low Voltage

Control

Required

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

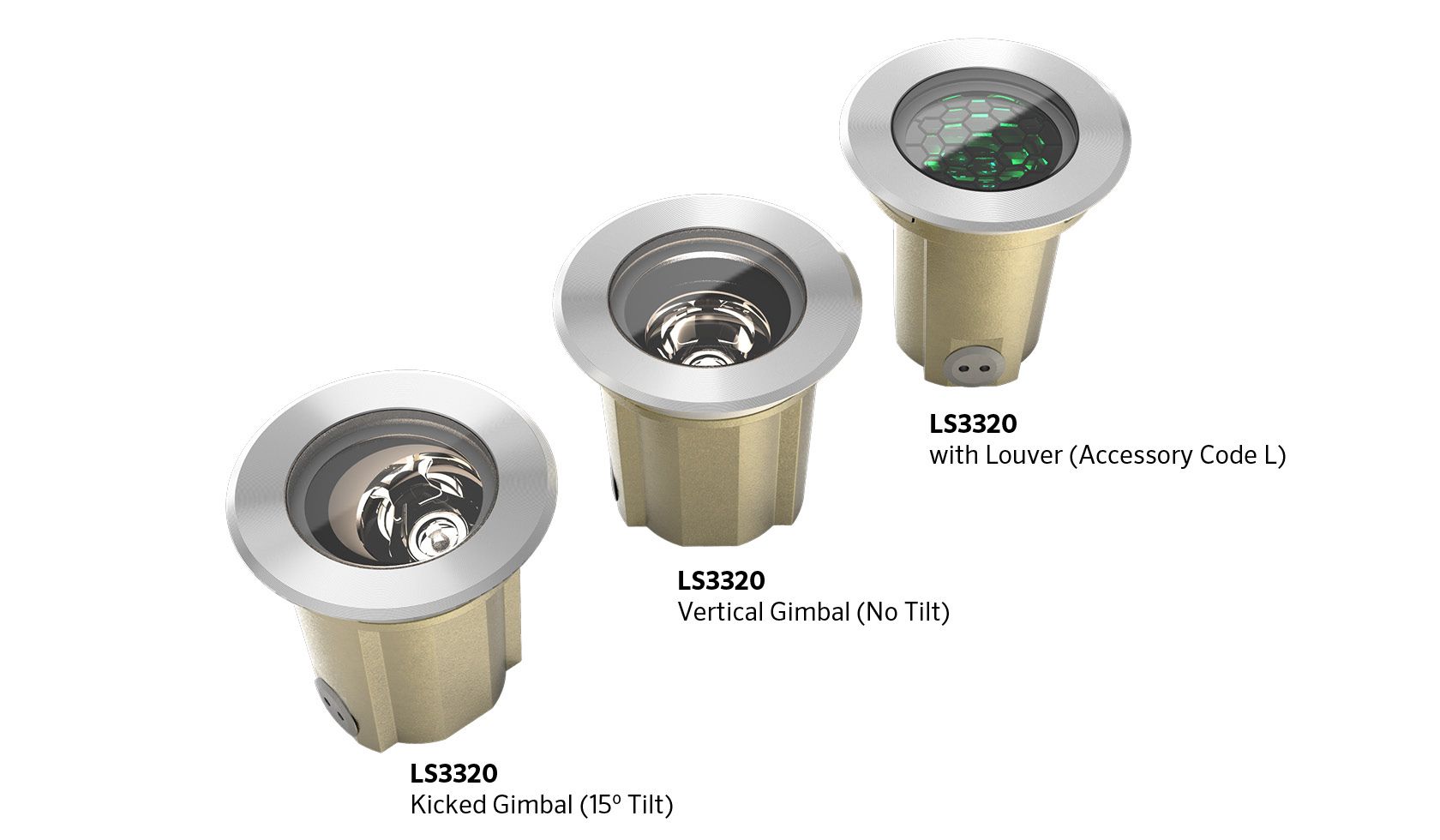

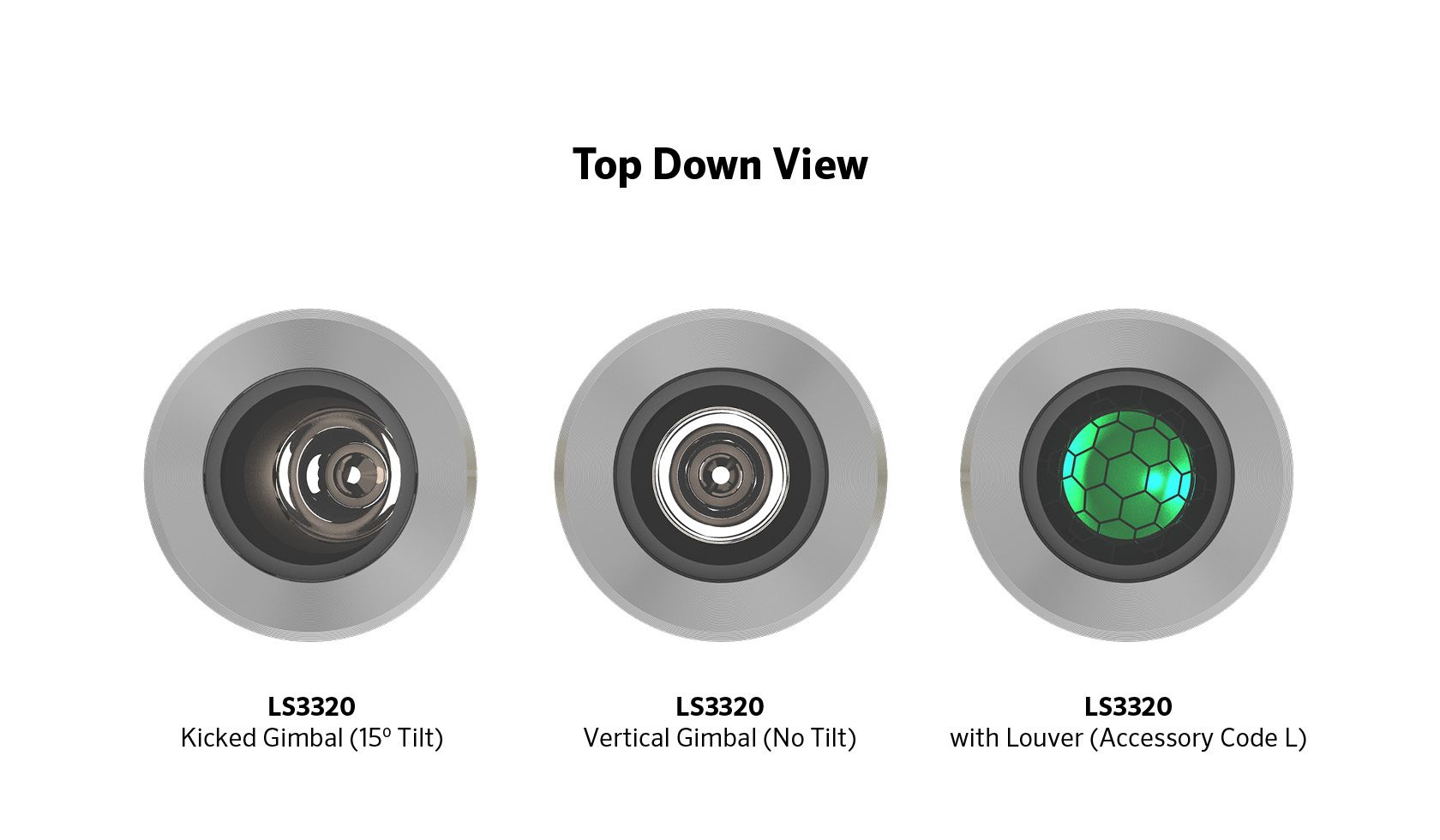

Tilt

Required

Tilt 0 ̊ (U)

Tilt 15° (W)

Accessories

Pre-Installation Options

Pre-Installation Kit (LS6388)

Acts as a concrete blockout and is intended for installation before the luminaire. This method ensures the luminaire is not damaged during concreting or other site works.

Pipe Clamping Kit (LS6389)

For installing the luminaire in a 4" (100mm) PVC pipe supplied by others.
