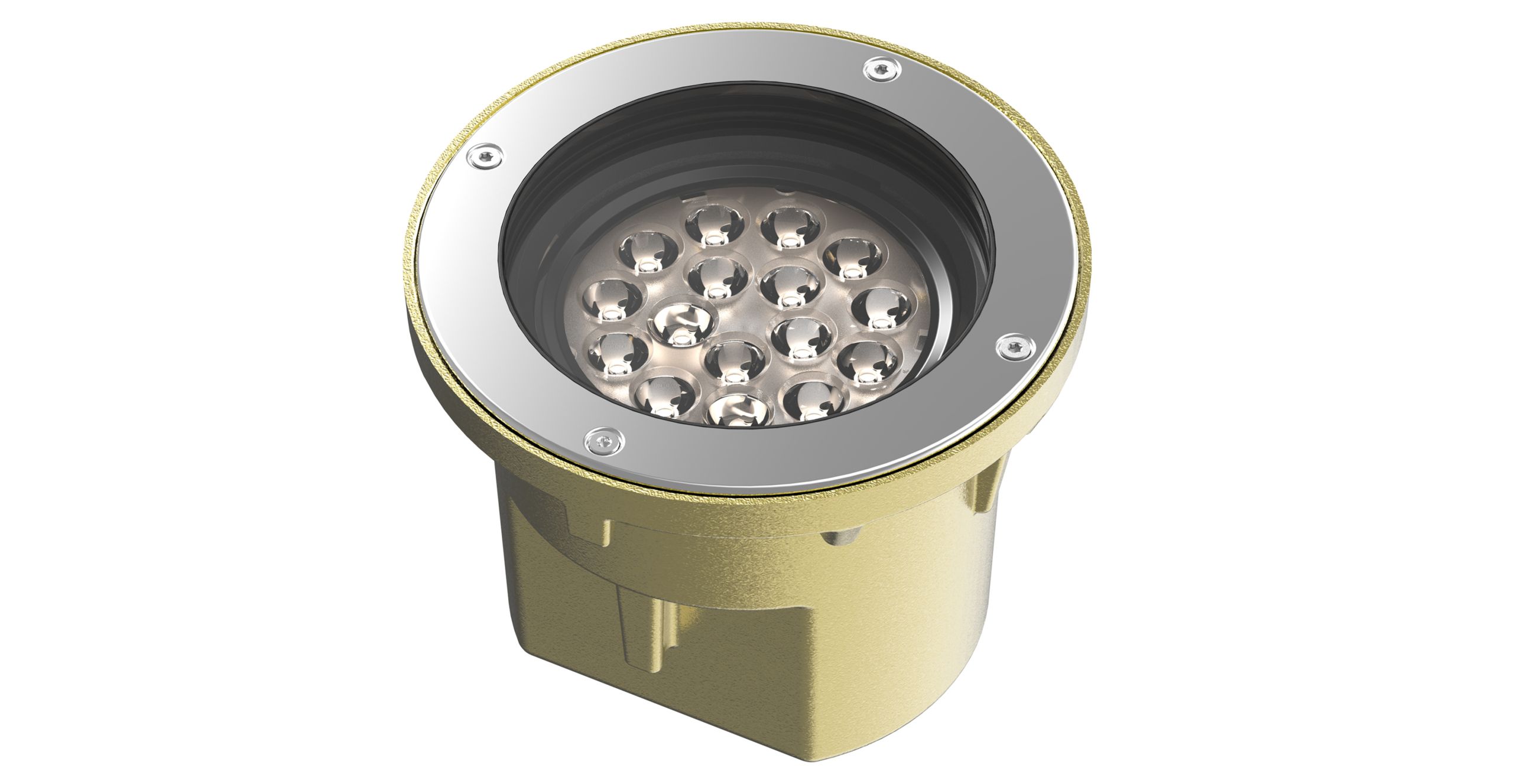

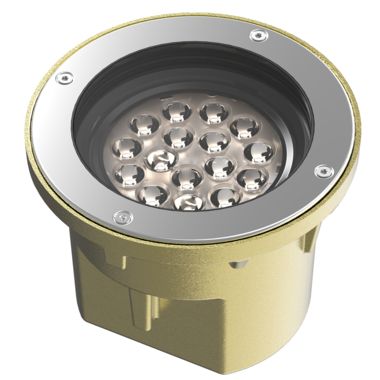

Erden Brass EB3 Foundation - LS3332

A robust and compact, high-performance in-ground luminaire designed for challenging environments.

Product Overview

The Erden Brass EB3 Foundation is a robust and compact in-ground luminaire, delivering an impressive output of 1,400 lumens. IP68 factory-sealed, and featuring a die-cast brass body, it is designed for reliability and superior outdoor performance in the most challenging of environments.

Highly versatile, the Erden Brass EB3 Foundation offers two orientations (vertical and a 15° tilted), a selection of stainless-steel and brass lids, glare control louvers, and the choice between direct burial or a pre-installation sleeve for mounting in concrete. This luminaire can also be rotated 360º within its pre-installation sleeve for easy aiming without the need for disassembly or unsealing.

Available in symmetrical and elliptical beam options and 0-10 V dimming or non-dimmable configurations. Ideal for a variety of projects, the Erden Brass EB3 is the perfect blend of durability, performance, and style for any outdoor applications.

Features

Total Lumens 1,400 lm Power Consumption < 14 W Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Typical Lifetime > 179,506 hours @ 122ºF (50ºC) Ambient Temperature (B10, L90, TM21 Projected) IP Rating IP68 IK Rating IK8 Compliance ETL - USA & Canada CE RCM FCC Color Options Warm White Cool White Data Sheet

Specifications

Accessories


Pre-Installation Kits
LS6387 Pre-Installation Kit Blockout

Product Configurator

Orientation

Select the orientation required
