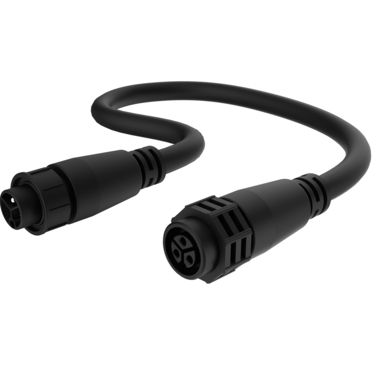

Jumper Cable Powersync™ Extra Low Voltage 16AWG (1.5mm²) - LS6427

Jumper Cable - Powersync4, Low Voltage, CE/CCC/UL, 16 AWG / 1.5 mm²

Product Overview

3-core 16 AWG (1.5mm²) cable. Compatible with all luminaires with Type 63 connectorized supply cable option. Supplied fitted with an IP68 connector for pairing with the first connectorized luminaire in a Powersync™, Low Voltage circuit.

Note:  Select the corresponding cable type according to the integrated controls of the chosen luminaire. Contact Lumascape for more information.

Suitable for use with

LS9010 Linealux L1 Linear Facade Luminaire
LS9015 Vestalux V1 Linear Facade Luminaire
LS9016 Vestalux V2 Linear Facade Luminaire
LS9260 Faisca F6 Marker Light

Product Configurator

Customise Jumper Cable Powersync™ Extra Low Voltage 16AWG (1.5mm²) below

Control Type

Select the corresponding cable type according to the integrated controls of the chosen luminaire.

Required

Non-Dimmable (ND)

4-core cable

PowerSync (PS)

4-core cable

Cable Length

Jumper Cable Extra Low Voltage Powersync™ 16AWG (1.5mm²) for use in CE and UL installations.

Required

1 ft / 0.3m (001)

2 ft / 0.6m (002)

3 ft / 1m (003)

4 ft / 1.2 m (004)

6 ft / 2m (006)

10 ft / 3 m (010)

16 ft / 5m (016)

26 ft / 8 m (026)

33 ft / 10m (033)
