Evoca LED EV7 - LS793LED

A compact, shallow-depth inground luminaire ideal for applications requiring a low-profile appearance.

Product Overview

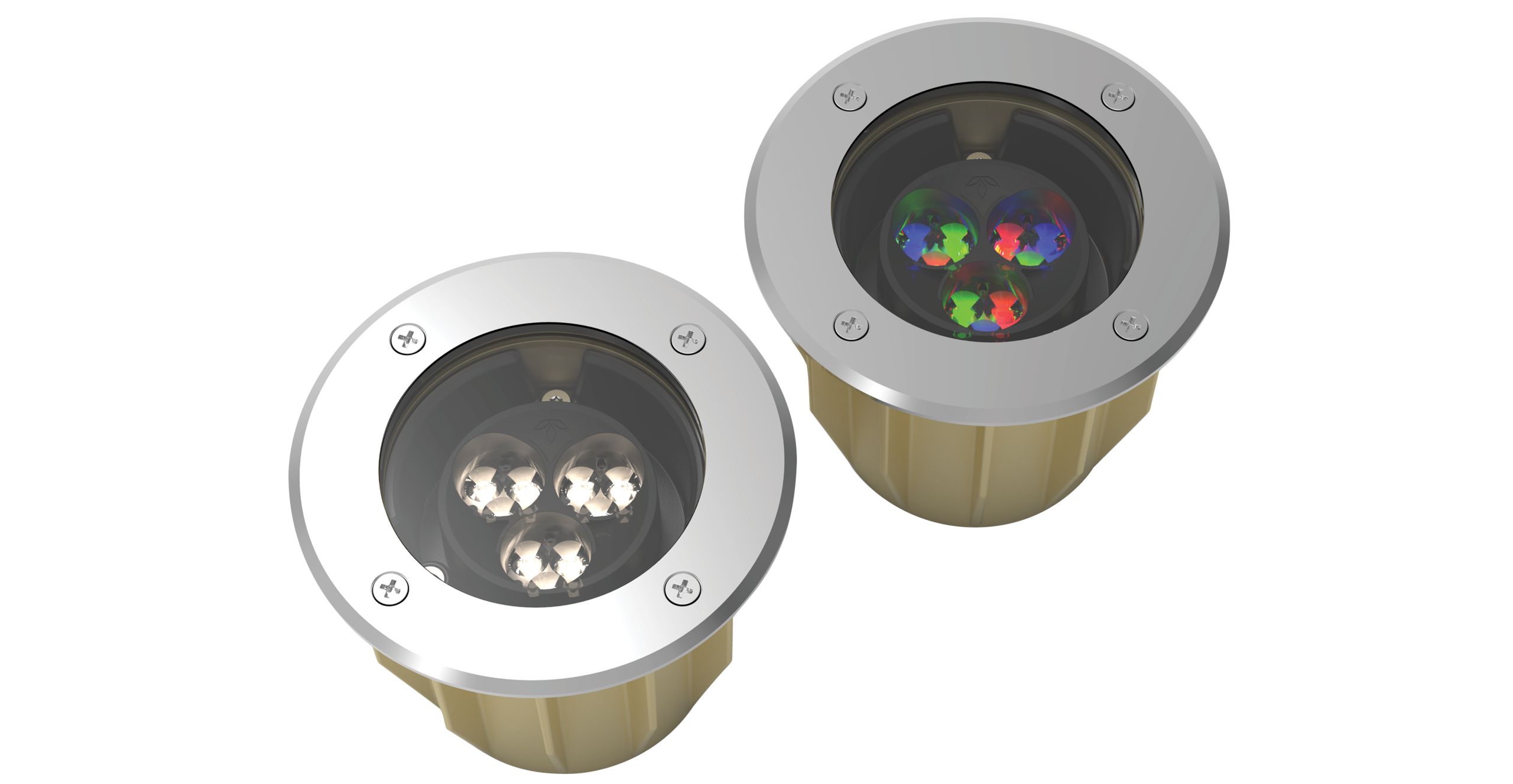

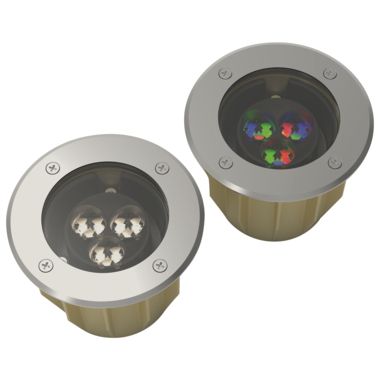

The Evoca EV7 is a compact, shallow-depth in-ground luminaire, for applications requiring a very compact form factor, and features a 3 W, 6 W or 9 W LED module with output similar to a 75 W MR16.  The compact size allows the luminaire to be used without appearing to dominate the architecture or landscape.  For better control of light, a factory set tilt option is available, as well as dimming for single color via Lumascape's d5 driver technology.

Features

Lumen Output 590 lm Power Consumption < 10 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 103,400 hours (B10, L90, TM21 Projected) Control Protocol PWM (0-10V, DMX, DALI) Diameter 4.4" (112 mm) Static Load Rating 1,650 lb (750 kg) IP Rating IP68 IK Rating IK9 Compliance ETL - USA & Canada CE UKCA RCM Color Options Warm White Cool White RGB Blue (470 nm) Data Sheet

Specifications

Product Configurator

Customise Evoca LED EV7 below

Light Engine

Required

3W (3)

6W (6)

9W (9)

Light Source

Required

Static White (H6)

Static White (H6)

3,000 K (80 CRI, 3 SDCM)

Static White (W4)

Static White (W4)

4,000 K (80 CRI, 3 SDCM)

Single Color (B4)

Single Color (B4)

Blue (470 nm)

Dynamic Color (M4)

Dynamic Color (M4)

RGB

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Linear Horizontal (LH)

Linear Horizontal (LH)

40° x 10°

Linear Vertical (LV)

Linear Vertical (LV)

10° x 40°

Cable Entry

Required

Side (N)

Side (N)

Bottom (Q)

Bottom (Q)

Input Voltage

Required

12 Vac, 60 Hz or 12 to 24 Vdc (13)

12 Vac, 60 Hz or 12 to 24 Vdc (13)

12-15 Vac, 60 Hz or 12-24 Vdc (23)

12-15 Vac, 60 Hz or 12-24 Vdc (23)

PWM Dimmable Driver

Tilt

Required

Tilt 0 ̊ (U)

Tilt 0 ̊ (U)

Tilt 15° (W)

Tilt 15° (W)
