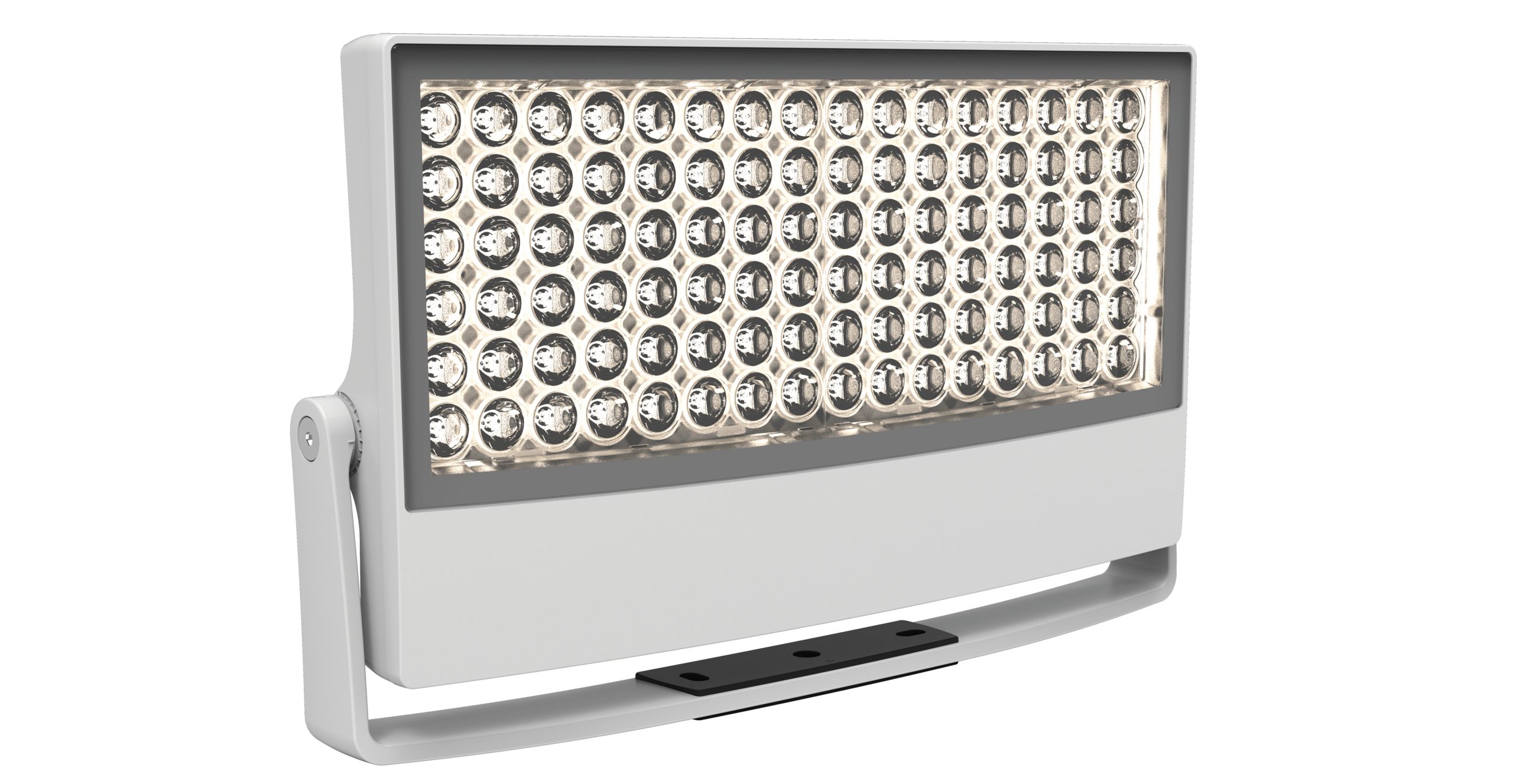

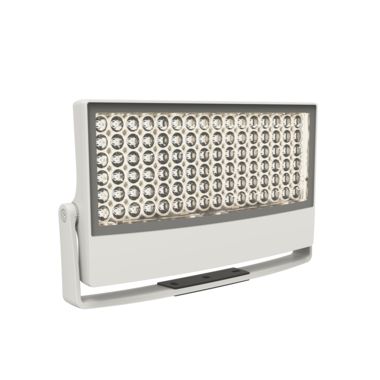

Quadralux Q8 Foundation - LS9182

An extra large, high-output spotlight designed to achieve a peak intensity of up to 1.26 Million Candela.

Product Overview

Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple
orientations. Supplied standard with designer optics providing superb color-over-angle consistency. Available with integrated 0-10 V dimming or as non-dimmable.

Features

Lumen Output 14,740 lm LED Power 118 W, 130 W Power Consumption 119 W, 132 W Typical Lifetime > 60,000 hrs Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK9 Vibration Resistance 3G Rating (ANSI 136.31) Compliance ETL - USA & Canada CE RCM Colour Options Warm White Cool White Download Datasheet

Specifications

Accessories


LS6226 Accessory Holder
LS6227 Cross Hatch Louvre
LS6228 45° Louvre
LS6229 Custom Visor
LS6317 3.0" (76 mm) Pole Clamp
LS6318 4.0"  (102mm)  Pole Clamp
LS6319 4.5"  (114mm)  Pole Clamp
LS6320 5.0"  (127mm)  Pole Clamp

Product Configurator

Customise Quadralux Q8 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

119 W (119D)

132 W (132D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Connection Type

Required

Single Entry (84)

Single Entry (84)

For the connection to the supply circuit via flexible cable, up to 6 ft (1.8m) in length. Single entry

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

4.5°

Sharp Narrow (NX)

Sharp Narrow (NX)

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Mounting

Required

Standard Bracket (S)

3G Rated Bracket (G)

Vibration Resistance (ANSI C136.31)

Input Voltage

Required

120/277 Vac, 60 Hz (09)

120/277 Vac, 60 Hz Input Voltage

Control

Required

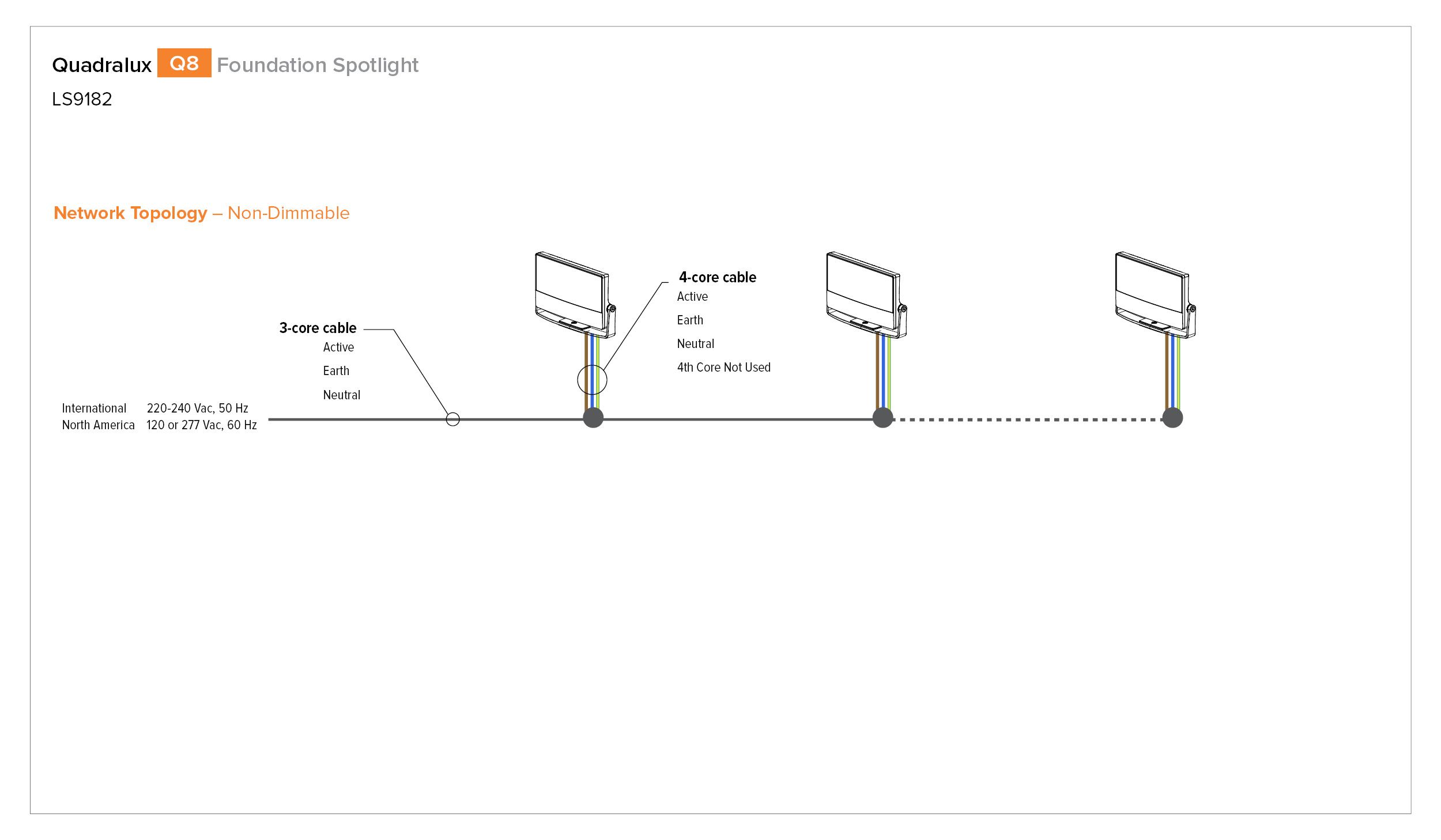

Non-dimming (ND)

For single color, non-dimming applications only.

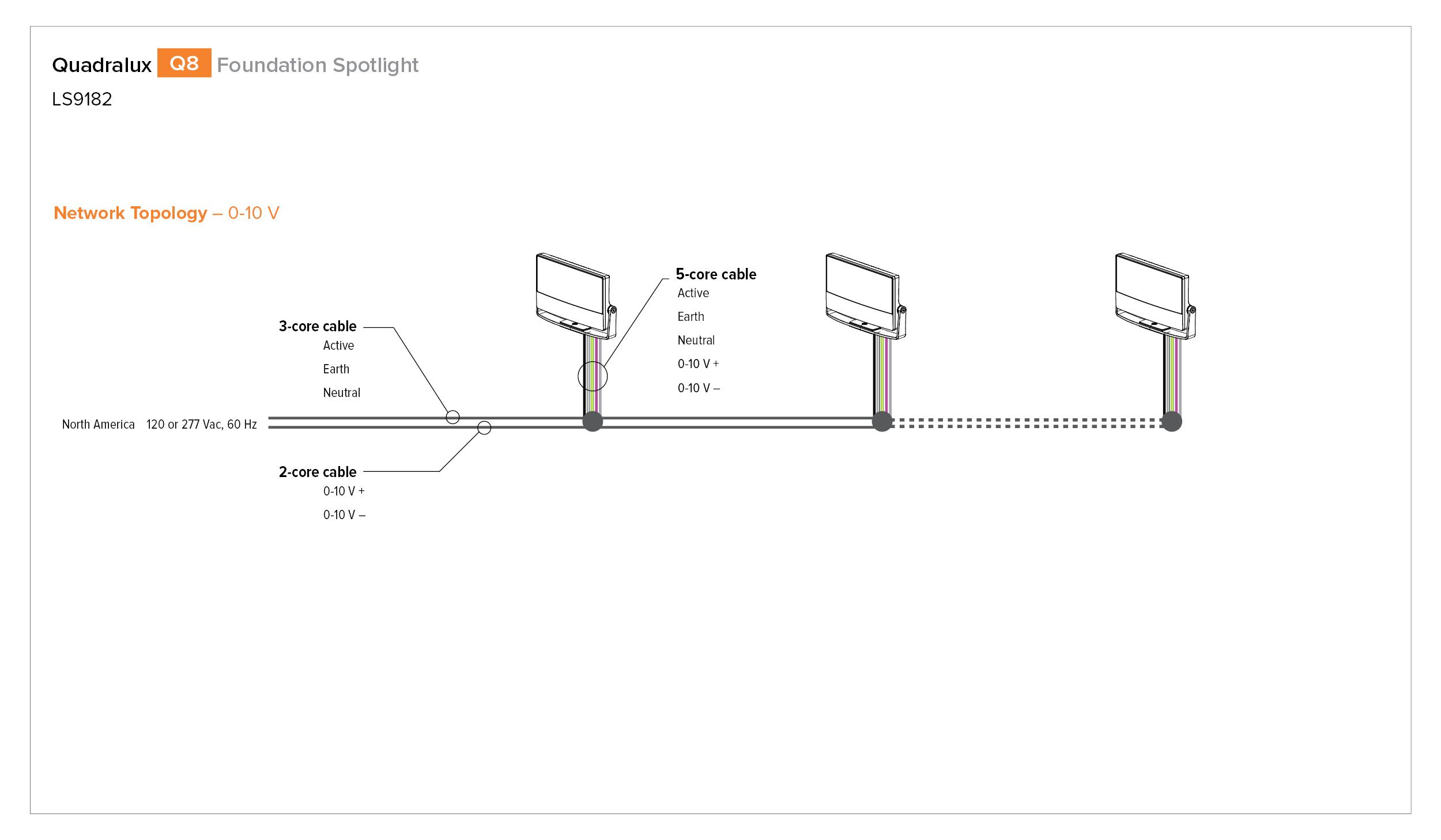

0-10 V (AH)

For single color dimming applications via 0-10 V.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Cable Length

For custom cable length contact Lumascape.

Required

6 ft / 1.8m (006)

14/4 SJOW Cable

Accessories

Accessory Holder

Order to match luminaire powdercoat colour

Accessory Holder (LS6226)

Required for all shielding and glare control accessories

More info

Louvre

Provides additional glare control. Available in black only.

Cross Hatch Louvre (LS6227)

Cross Hatch Louvre (LS6227)

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

45º Visor (LS6228)

45º Visor (LS6228)

More info

Mounting & Installation

Luminaire must be ordered with a 3G rated bracket. Order to match luminaire powder-coat colour.

3.0" Pole Clamp (LS6317)

3.0" Pole Clamp (LS6317)

(76 mm)

More info
4.0" Pole Clamp (LS6318)

4.0" Pole Clamp (LS6318)

(102 mm)

More info
4.5" Pole Clamp (LS6319)

4.5" Pole Clamp (LS6319)

(114 mm)

More info
5.0" Pole Clamp (LS6320)

5.0" Pole Clamp (LS6320)

(127 mm)

More info
