Medina LED ME1

ME1
LS134LED
A versatile downlight luminaire designed ideal for modern architectural designs
Configure this product

Product Overview

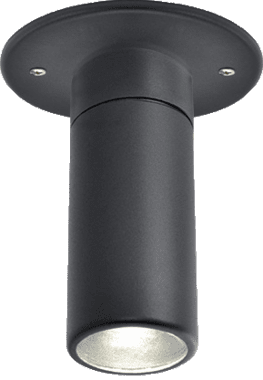

The LS134LED Medina is designed for external spaces where a recessed downlight is not practical. The luminaire is constructed from either copper or powder coated aluminum, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and now features new Lumascape d5 driver technology for advanced dimming and control options.

Features

Lumen Output 403lm Power Consumption 6W Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Medina LED ME1 below

Light Engine

Required

6W (6)

6W (6)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

Required

12-15V, 60Hz or 12-24V DC (23)

12-15V, 60Hz or 12-24V DC (23)

PWM Dimmable Driver

Finish

Required

Black (BL)

Black (BL)

Black powder coat

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powder coat

Polished Copper (CU)

Polished Copper (CU)
