rFin - rFIN

Recessed luminaire in 1 or 2 LED.
Configure this product Features Specifications Videos

Product Overview

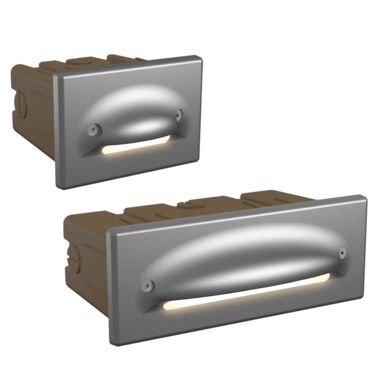

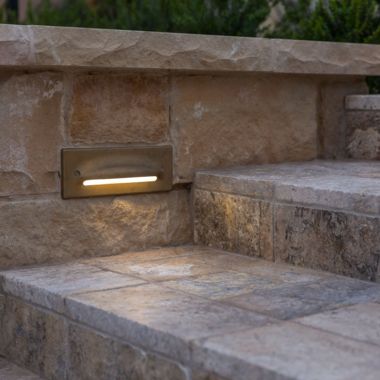

The rFin is a stylish recessed wall luminaire available in 1 or 2 LED.

Features

Total Lumens 43-81 lm Power Consumption 2.2 W | 4.4 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz Installation Requirements Recessed Installations Only Typical Lifetime White: 72,000 hrs BUG Rating B0-U1-G0 Weight 3.6 lb (1.6 kg) Compliance UL - USA & Canada UL-NOM CE RCM RoHS Dark Sky Color Options Warm White Quickship Quickship Available Data Sheet

Specifications

Videos
Product Highlights | Wall Lights
Introducing the Essential Series range of wall lights from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Downloads

Data Sheet Install Guide
IES Files rFin-13 ZIP (977 B) Product Flyer - Essential Series PDF (965.93 KB)

Technology

Product Configurator

rFIN _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise rFin below

Input Voltage

12 Vac/Vdc

Size

Required

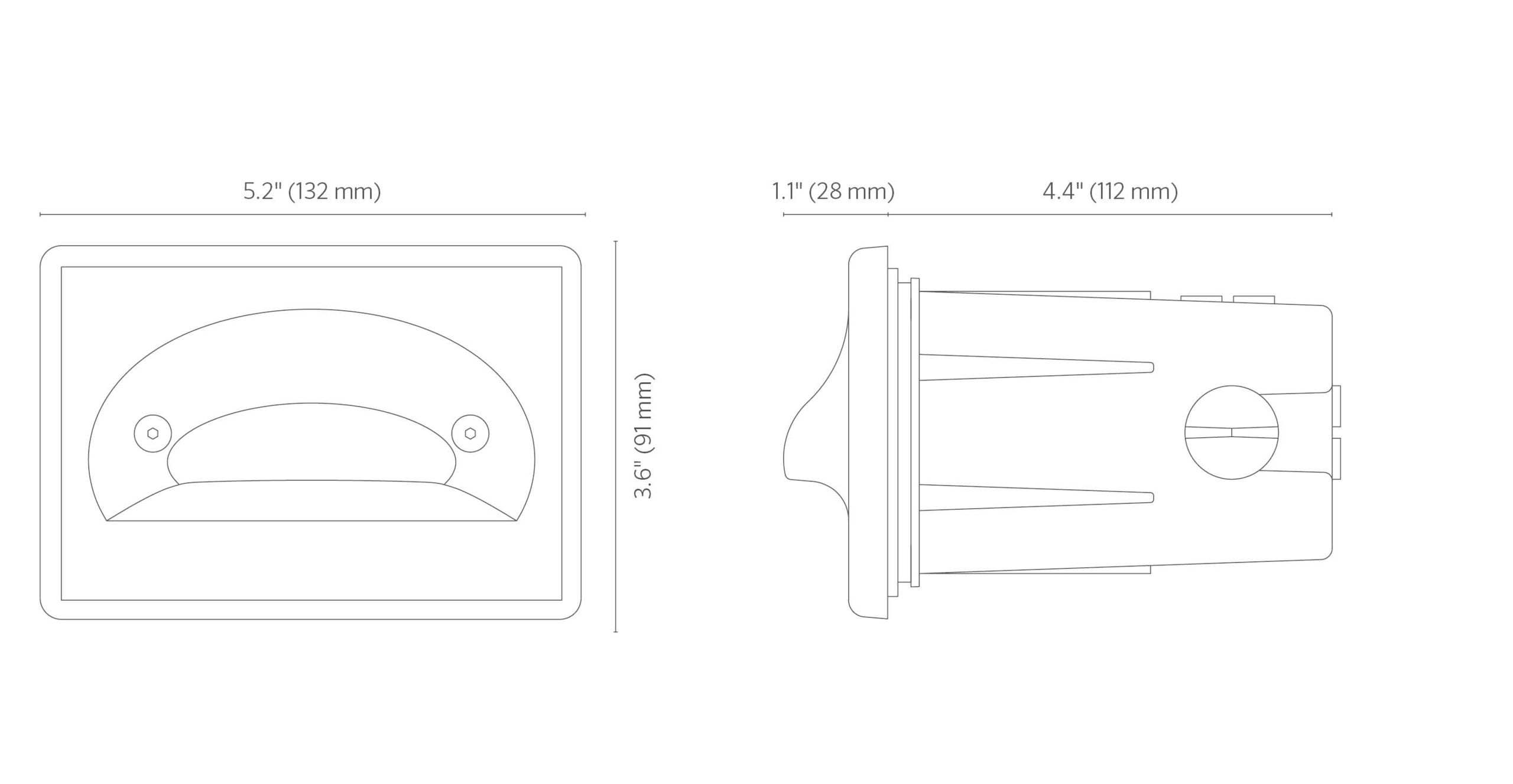

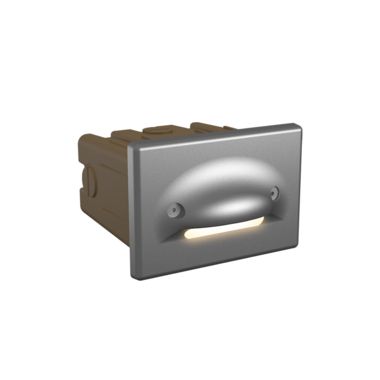

5.2" (132 mm) Wide (13)

5.2" (132 mm) Wide (13)

5.2" (132 mm) x 3.6" (191 mm)

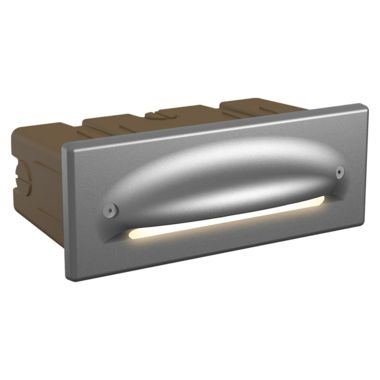

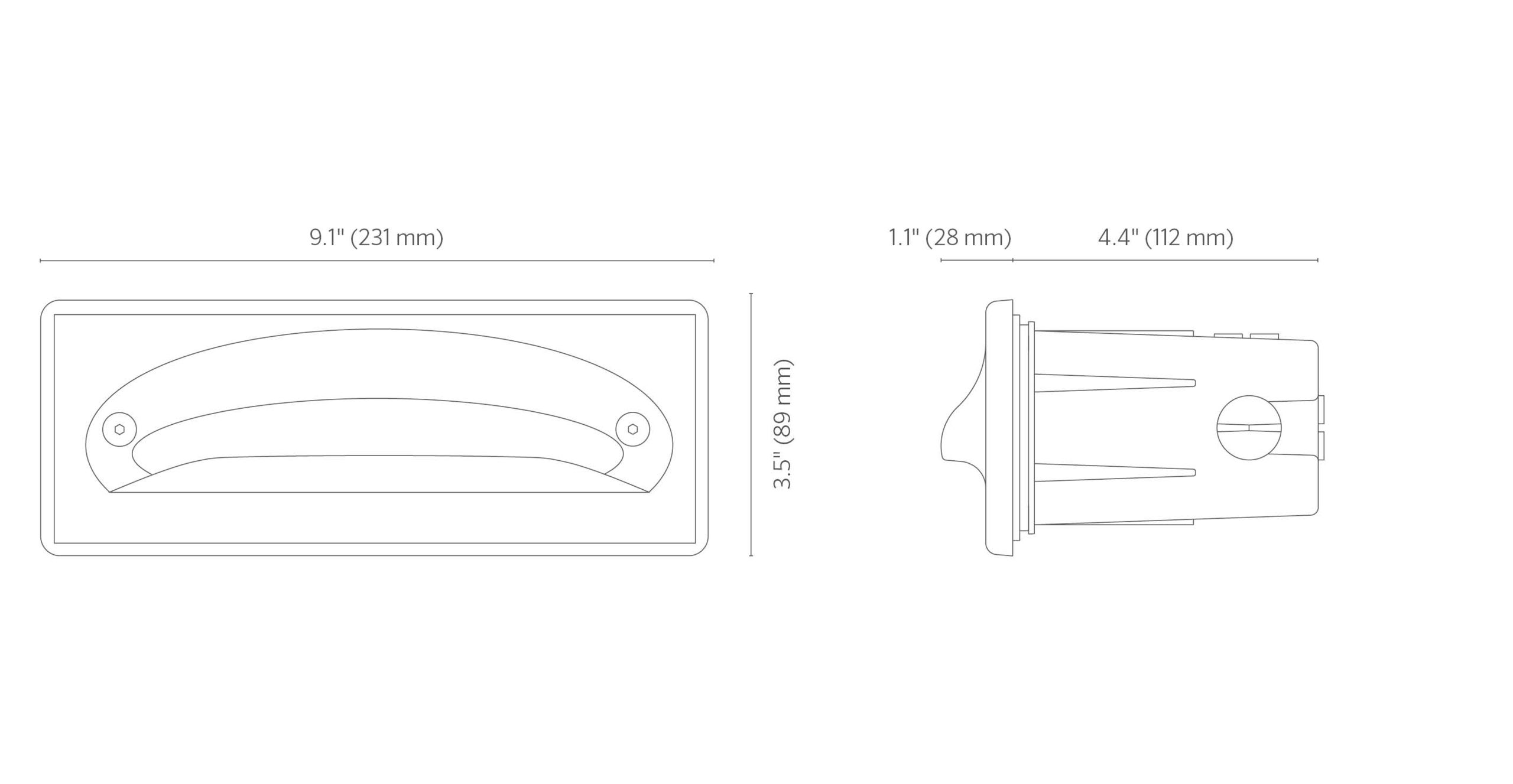

9.1" (231 mm) Wide (23)

9.1" (231 mm) Wide (23)

9.1" (231 mm) x 3.5" (189 mm)

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

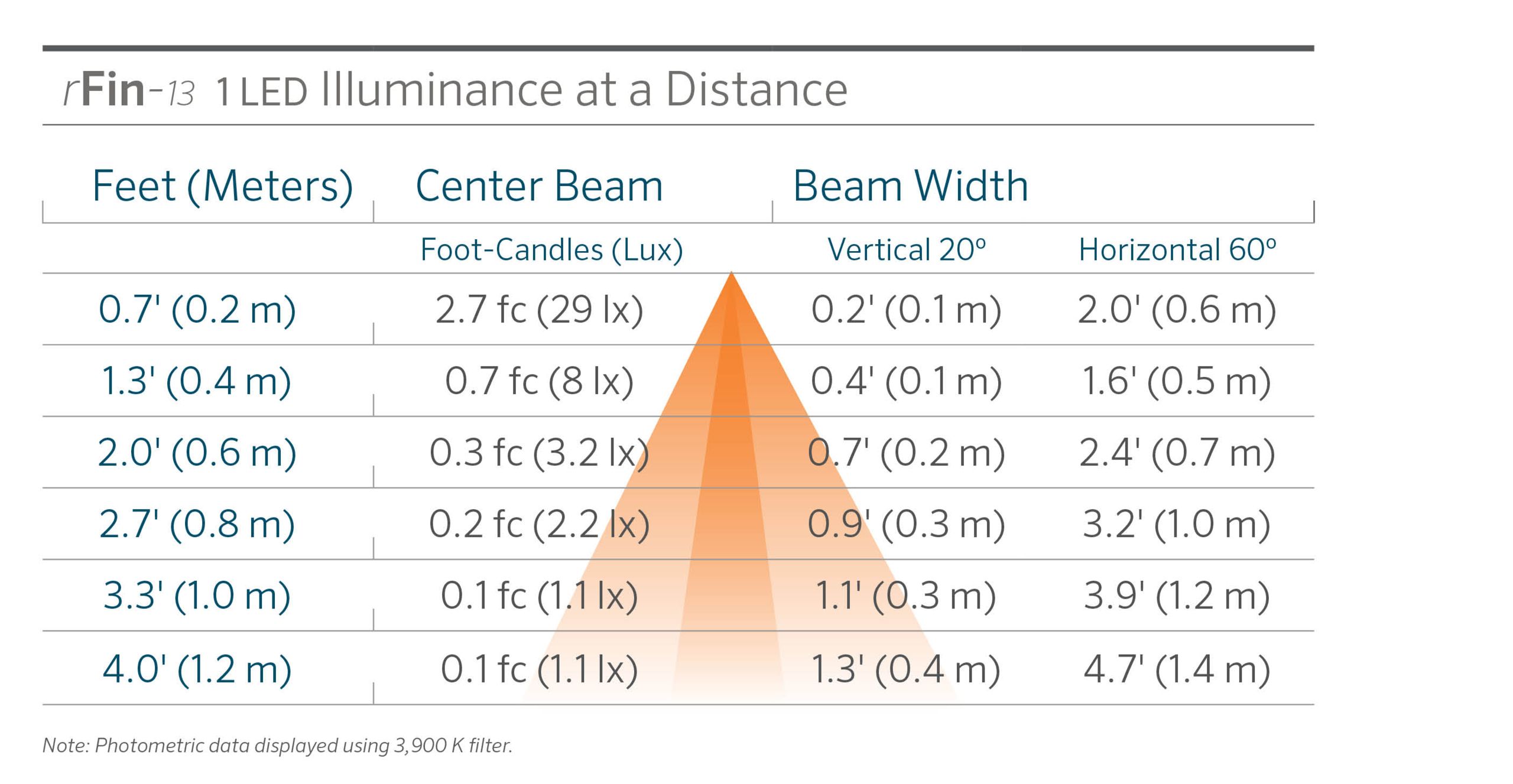

2.2 W (1LED)

43 lm, Style -13 Only

2.2 W

43 lm, for ZD control, Style -13 only

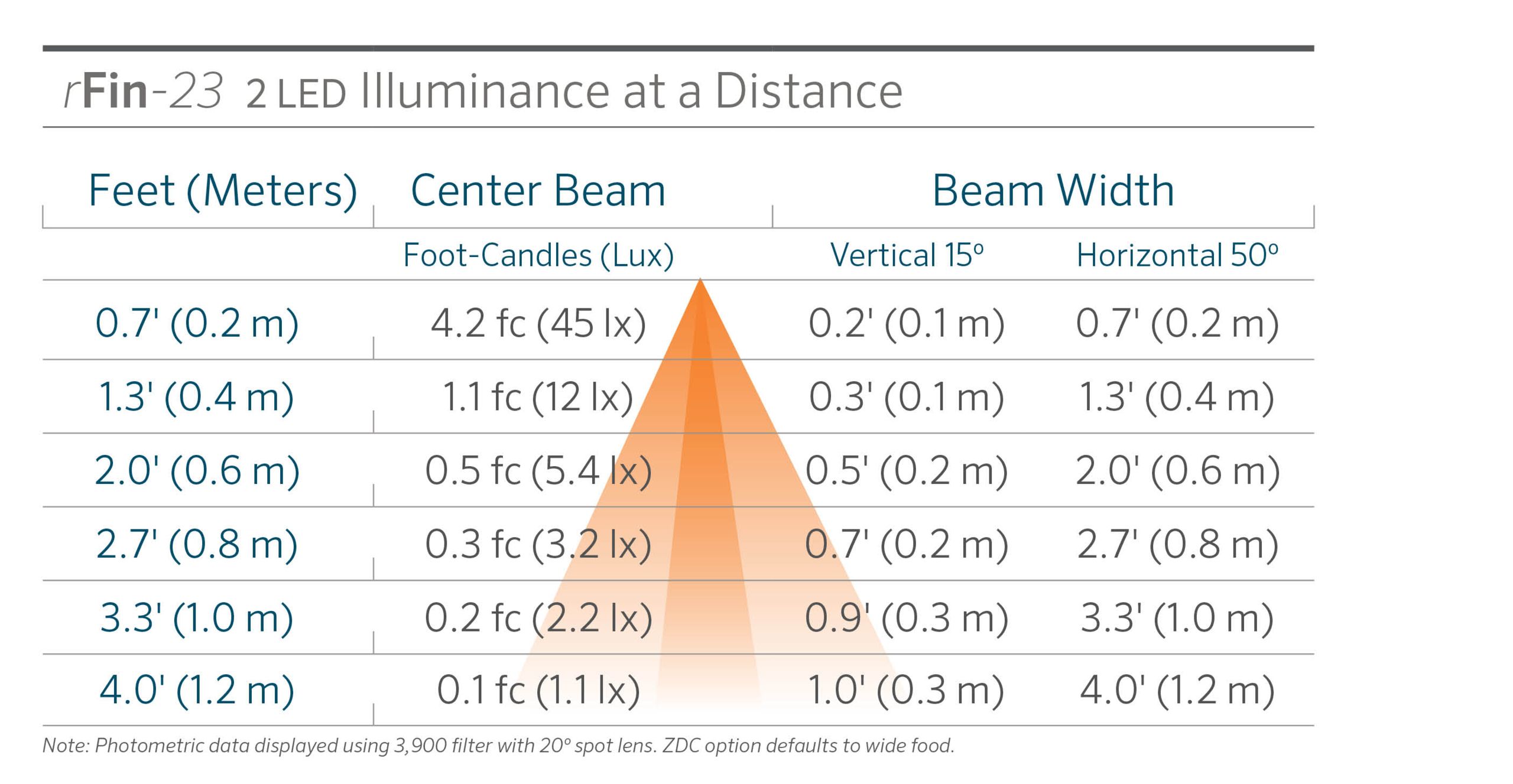

4.4 W (2LED)

81 lm, Style -23 Only

4.4 W

81 lm, for ZD control, Style -23 only

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Natural Brass (BS)

Natural Brass (BS)

Antique Bronze (AB)

Antique Bronze (AB)

Natural brass material with brushed antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Antique Tumbled (AT)

Antique Tumbled (AT)

Natural brass material with tumbled antique effect. Finish sealed with a clear TGIC powder-coat finish layer.

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Mounting & Installation

Included with product.

Required

Pre-Installation Kit Ships with Product

rFin pre-installation kit includes back box with cover.

Accessories

Pre-Installation Kit

Includes Sleeve with Cover. Specify Separately

Ship Separately (250022040000)

More info

Ship Separately (250022030000)

More info

Connection Kit

Specify Separately

Wall Light Connection Kit

Wall Light Connection Kit (EKITWALL)

More info

Power Supplies

Specify Separately

Multi-Tap Transformer

Multi-Tap Transformer (PROLINK)

The industry's most reliable multi-tap transformer.

More info
ZDClink® Lighting Controller

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

More info
Dimmable Mini Transformer

Dimmable Mini Transformer (ST-120-DIM)

60 W, 120 V to 12 Vac step-down transformer.

More info
Non-Dimmable Mini Transformer

Non-Dimmable Mini Transformer (ST-UV)

30 W universal voltage step-down transformer.

More info

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads.

More info

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads.

More info

Supplemental Surge Protection

Specify Separately

In-Line Surge Arrestor

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

More info

Wire Connections

Specify Separately

Heat Shrink Wire Connectors - Small

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info
Heat Shrink Wire Connectors - Medium

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee: Essential Series

Custom Color Setup Fee: Essential Series (Custom RAL Color Setup)

Custom RAL colour setup fee
