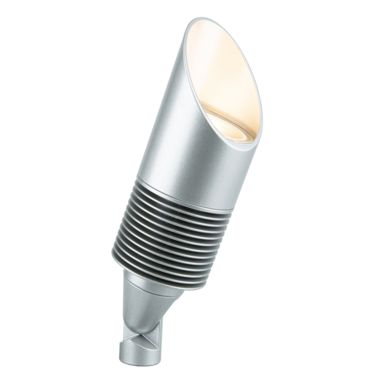

dAxis-9 - dAXS9

Super J-Box Stake (SJ)

2.0" (51 mm) metal cap with ½"-14 NPSM threads over an 11" (279 mm) ground stake.

Post Mount (PM)

Suitable for use on 1/2" NPSM ground-mount luminaires and is specified separately.

Ground Mount (GM)

The Ground Mount is a 4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit.

Mini Mount (MM-050)

Versabox® (VB-050)

A 1.5" (38 mm) brass cap with ½"-14 NPSM threads.

Treebox® (TB)

A dual ½"-14 NPSM threads with wire compartment.

Gutter Mount (GM-SS)

A 4.4" (112 mm) aluminum cap with ½"-14 NPSM threads and wire compartment; 2.0" schedule 40 conduit.

Wall Plate 1-Gang (WP-1G-050)

1-gang wall plate with 1/2''-14 NPSM threads.

Wall Plate, Round (WP-RD-050)

5'' (127 mm) round wall plate with 1/2''-14 NPSM threads.

Non-Penetrating Tree Ring (TR)

Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.

Line Mount (LNM)

In-ground mounting accessory with cavity for mini transformers.

Straight Riser (‒)

An aluminum straight riser with 0.8'' (12 mm) OD and 1/2''-14 Male NPSM x2 threads.

Angled Sign-Light Riser (―)

An aluminum angled sign-light riser with 0.8'' (12 mm) OD, 45º bend, and 1/2''-14 NPSM x2 threads.

Straight Coupling (COUP)

An aluminum straight coupling 1.3" (32 mm) x 2.0" (51 mm).

Coupling, 90-deg, 1/2'' NPSM (ELBW-050)

An aluminum 90º coupling 1.3" (32 mm) x 2.0" (51 mm).

Coupling, T, 1/2'' NPSM (TMNT-050)

An aluminum T Coupling, ½" NPSM Thread.

Hex Baffle (250015260000)

2'' (50 mm) diameter (MR-16)

Linear Spread Lens (250013550000)

2'' (50 mm) diameter (MR-16)

Solite Spread Lens (250015240000)

2'' (50 mm) diameter (MR-16)

Multi-Tap Transformer (PROLINK)

The industry's most reliable multi-tap transformer.

ZDClink® Lighting Controller (ZDClink)

A combined lighting controller and transformer (120 Vac to 14 Vac) that offers powerline zoning, dimming, RGBW color changing, and optional Wi-Fi control via Luxor Technology™

Dimmable Mini Transformer (ST-120-DIM)

60 W, 120 V to 12 Vac step-down transformer.

Non-Dimmable Mini Transformer (ST-UV)

30 W universal voltage step-down transformer.

6 W Plug-in Transformer (MT-6W)

Standard North American Type A, Class 2 transformer with 6 W capacity and 1’ (300 mm) flying leads.

30 W Plug-in Transformer (MT-30W)

Standard North American Type A, Class 2 transformer with 30 W capacity and 1’ (300 mm) flying leads.

In-Line Surge Arrestor (SURGE-MOD)

Provides two additional layers of surge protection (up to 10KW) to any 12 Vac/dc LED luminaire.

Heat Shrink Wire Connectors - Small (WCHSSM20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

Heat Shrink Wire Connectors - Medium (WCHSMD20)

Tin-coated copper butt splices with adhesive-filled heat shrink tubes.

H1 LED Replacement Kit, Soft, 2700 K (KITH1W)

LED Board Only

H1 LED Replacement Kit, Soft, 3000 K (KITH1S)

LED Board Only

ZD H1 LED Replacement Kit, Warm, 2700 K (KITZDH1W)

LED Board Only

ZD H1 LED Replacement Kit, Warm, 3000 K (KITZDH1S)

LED Board Only

ZDC 6LED Replacement Kit, Round, RGBW (KITZDC6)

LED Board Only

Custom Color Setup Fee: Essential Series (Custom RAL Color Setup)

Custom RAL colour setup fee
