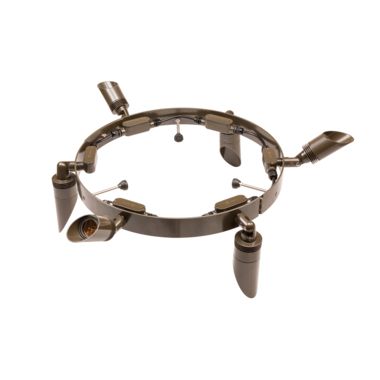

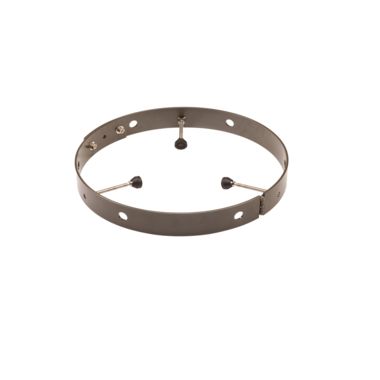

Non-Penetrating Tree Ring - TR

Adjustable, drill-free, non-penetrating tree ring, accommodates up to six luminaires.
Configure this product Features Specifications

Product Overview

Features Include:

  • TGIC powder-coat finish
  • Design for 9-20" (229-508 mm) diameter trees
  • Compatible with ½" NPT threads
  • Accommodates up to six (8) luminaires
  • Mounting hardware included

Suitable for use with
dAXS7 dAxis-7 At-Grade

Features

Quickship Quickship Available Data Sheet

Specifications

Downloads

Data Sheet Install Guide
DXF Files Tree Ring ZIP (729.57 KB)

Product Configurator

TR _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Non-Penetrating Tree Ring below

Size

Required

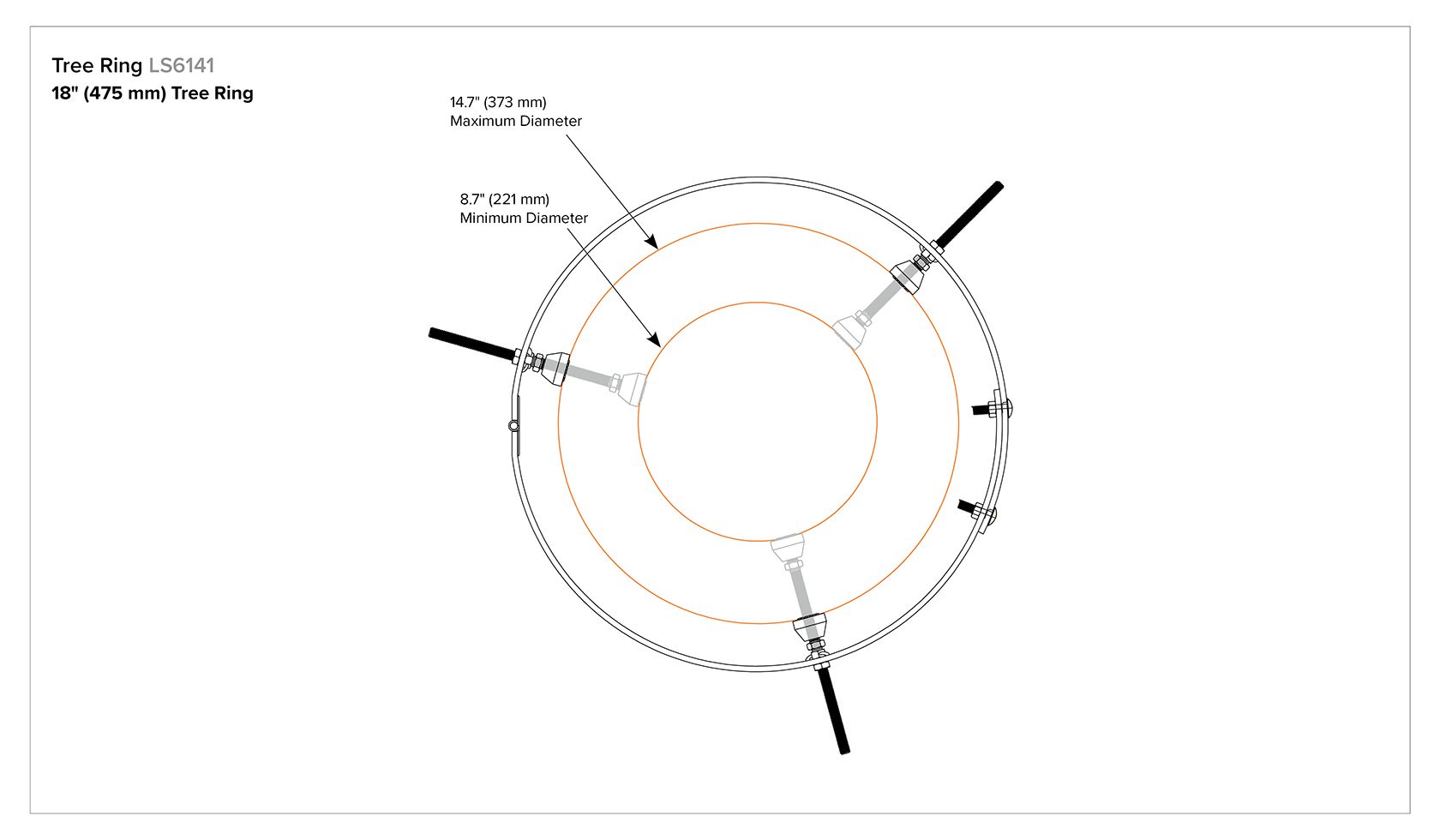

18" (475 mm) Tree Ring (18)

Capable of mounting diameters between 8.7" (221 mm) and 14.7" (373 mm)

24" (610 mm) Tree Ring (24)

Capable of mounting diameters between 8.7’’ (221 mm) and 14.7’’ (373 mm)

Positions

Required

Eight Position (8P)

Eight through holes. Designed for ½’’-14 NPSM threads and requires a lock ring to secure luminaire in place.

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

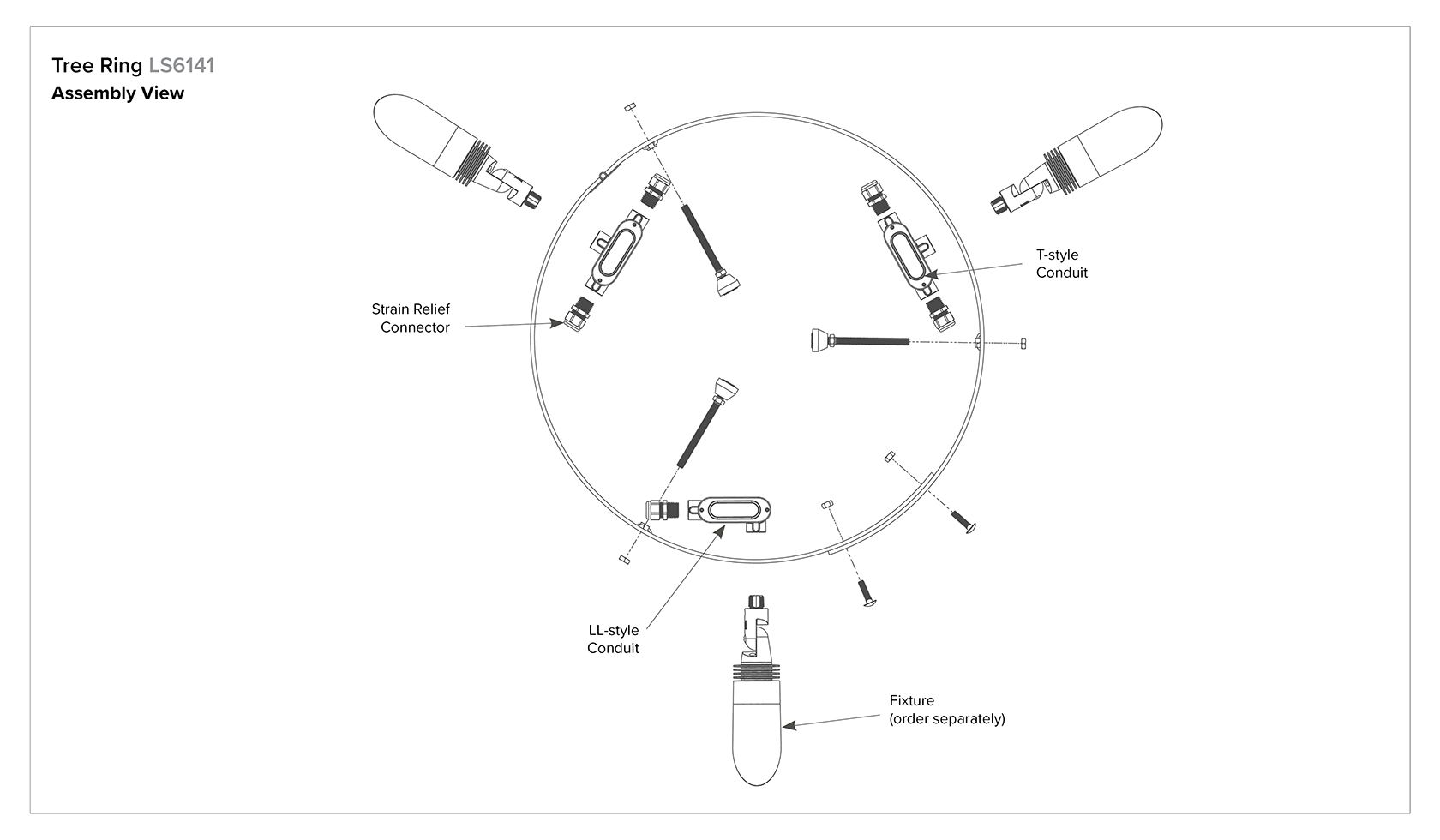

Accessories

Conduit Body

Specify separately. Order to match color of Tree Ring.

LL-Style Conduit Body

LL-Style Conduit Body (TRJBLL)

Order one per Tree Ring and includes strain relief connectors

More info
T-Style Conduit Body

T-Style Conduit Body (TRJBT)

T-Style Conduit Body suitable for use on the Tree Ring.

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee: Essential Series

Custom Color Setup Fee: Essential Series (Custom RAL Color Setup)

Custom RAL colour setup fee
