Reed RD2 - LS1252

A recessed wall luminaire with a slim, rectangular profile and excellent forward throw distribution.

Product Overview

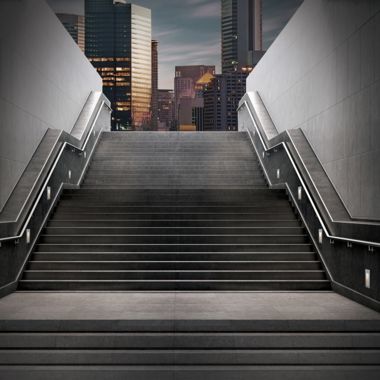

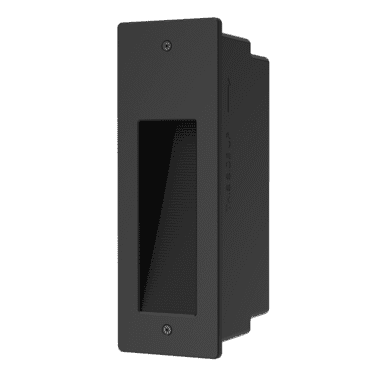

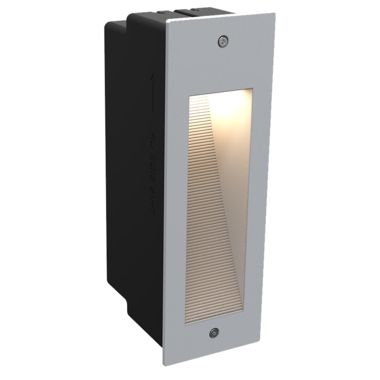

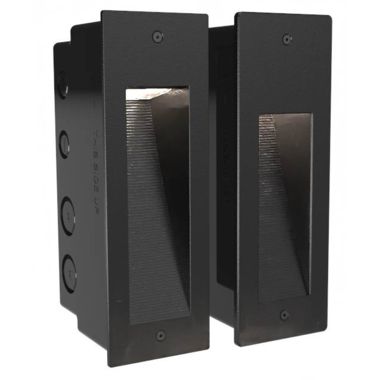

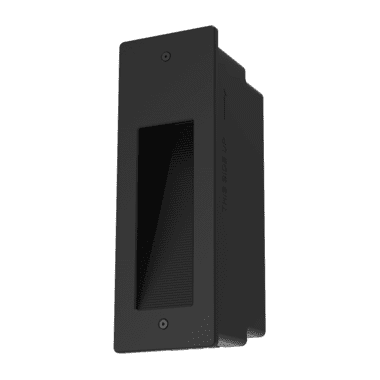

The Reed RD2 is a recessed wall luminaire with a slim, vertical rectangular profile. It provides over 200 delivered lumens in a forward throw distribution with a medium narrow beam. Multiple fittings can be used to effectively illuminate wide pathways, stairways and cycleways.

Features

Lumen Output 215 lm Power Consumption < 9 W Typical Lifetime > 60,000 hrs (B10, L70, TM21 Reported) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Protocols DALI, 0-10 V Weight 1.2 lb (0.5 kg) IP Rating IP66/67 IK Rating IK9 BUG Rating B0-U2-G1 Compliance UL - USA & Canada CE RCM ADA Compliant Color Options Warm White Cool White Data Sheet

Specifications

Accessories


LS6335 Pre-Installation Mounting Kit

Product Configurator

Customise Reed RD2 below

Power Consumption

For all PowerSync Controlled Luminaires

Required

9 W (09D)

9 W

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Style

Required

Recessed Baffle (RB)

Recessed Baffle

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Medium Throw (MD)

Medium Throw (MD)

50º x 30º

Input Voltage

Required

120/277 Vac, 60 Hz (09)

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

0-10 V (AH)

For single color dimming applications via 0-10 V.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
