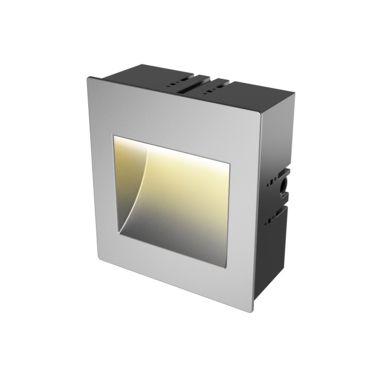

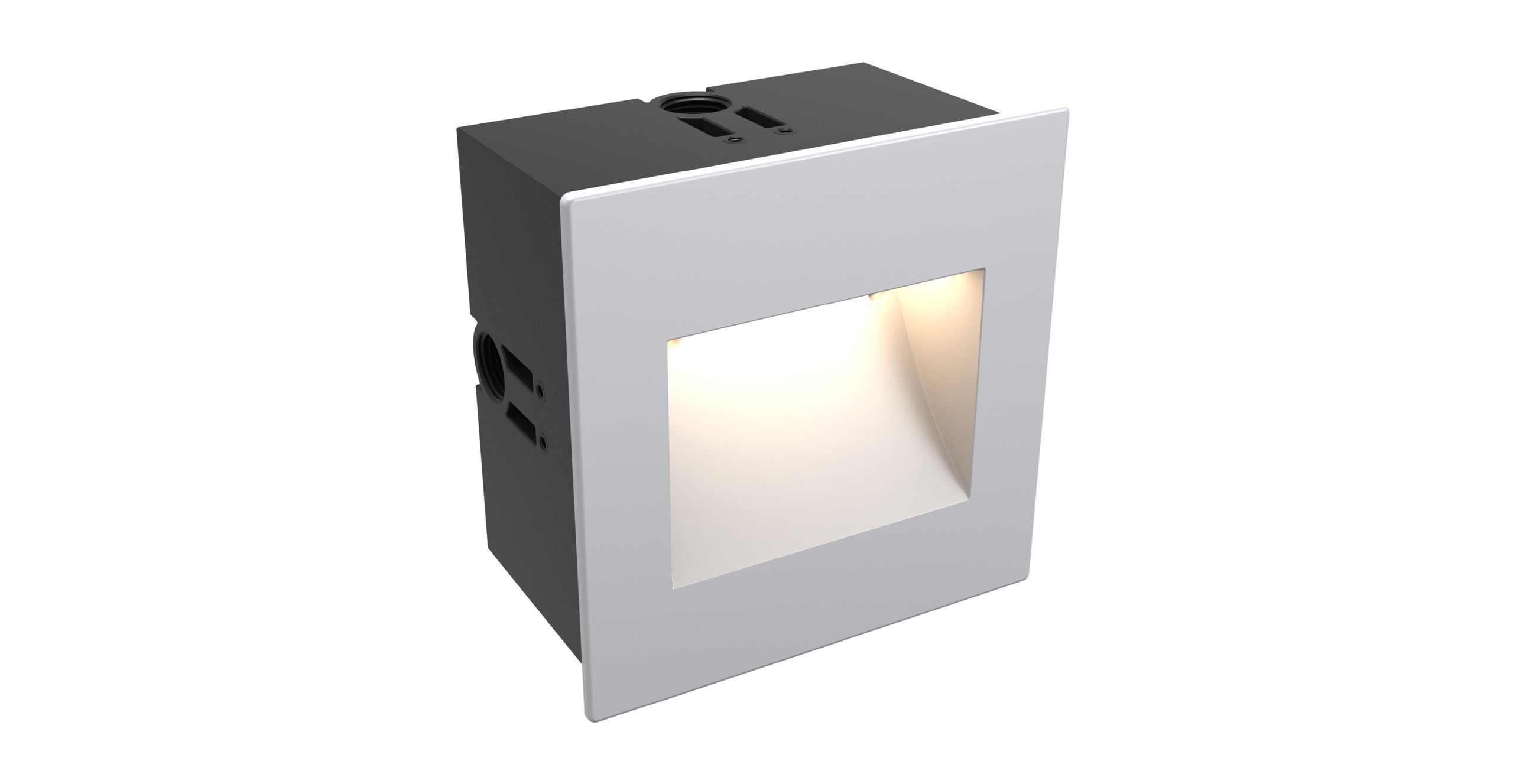

Nook NK2 - LS1260

A recessed, wall-mounted luminaire that offers beautiful lighting transitions in a compact design.
Configure this product Features Specifications Videos

Product Overview

The slender luminaire delivers an optimal amount of light exactly where it is needed. Only the Nook NK2 step light provides every specification needed to satisfy lighting requirements for a luminaire in its class including wide 12' spacing, tamper-resistant features, factory sealed construction, minimal glare and various configurations to exceed the needs of lighting designers.

Supplied with
LS6332 Pre-Installation Kit

Features

LED Power 4 W, 8 W Power Consumption 410lm 8W Typical Lifetime > 60,000 hrs (B10, L70, TM21) Input Voltage 120-277 Vac, 50/60 Hz Dimming 0-10 V, Phase-Dimming IP Rating IP66 IK Rating IK7 Compliance UL - USA & Canada Color Options Warm White Data Sheet

Specifications

Videos
Product Highlights | Nook NK2
An introduction to the Nook NK2, recessed wall-mount luminaire by Lumascape.
Webinar | Nook NK2
Watch the webinar showcasing the unique features of Lumascape's new products, the Nook NK2.

Downloads

Data Sheet Install Guide
DXF Files LS1260 ZIP (305.99 KB) IES Files LS1260 ZIP (14.1 KB) Height and Spacing Tool V4 XLSX (687.95 KB)

Technology

Product Configurator

LS1260 _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Nook NK2 below

Light Engine

Required

4 W (04)

8 W (08)

LED Type

Required

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important (e.g., grazing and accent lighting)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Optics

Required

Frosted Lens (F)

Style

Required

Square (SQ)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Medium Throw (MD)

Input Voltage

Required

120-277 Vac, 50/60 Hz (09)

120-277 Vac, 50/60 Hz (09)

Mains Voltage

Control

Required

Phase-Dimmable (PD)

Phase-Dimmable & 0-10 V (PA)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Required Pre-Installation Kit

Specify Separately

Pre-Installation Kit (LS6332)

Required pre-installation kit used for mounting the Nook NK4 on any flat surface.

More info

Replacement Parts

Specify Separately

120-277 Vac, 0-10 V, 700 mA Replacement Driver (DVRUV700)

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee

Custom Color Setup Fee (Custom RAL Color)

Custom RAL colour setup fee

More info
