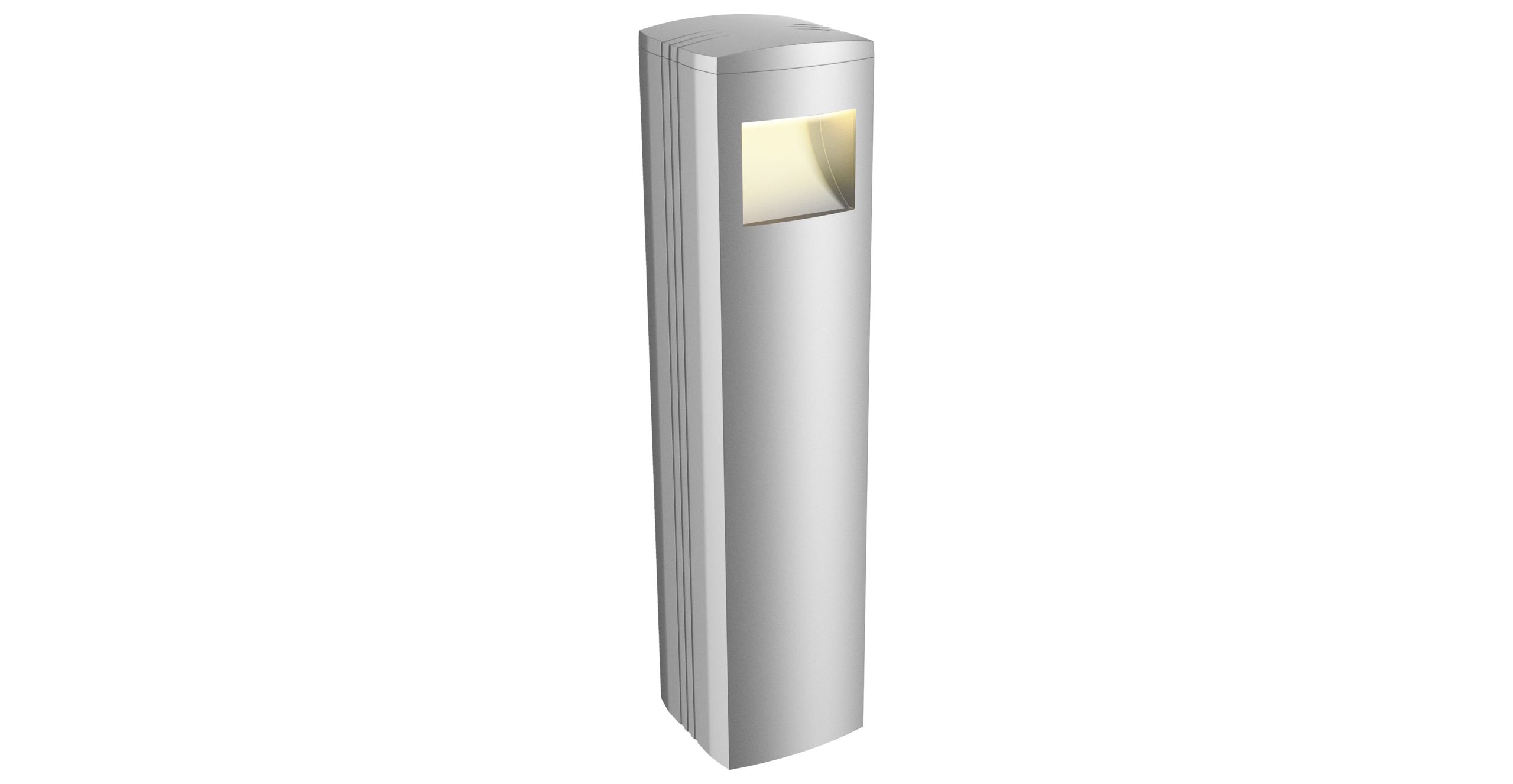

Rise RS8 - LS2388

The strongest, most versatile bollard in the industry.

Product Overview

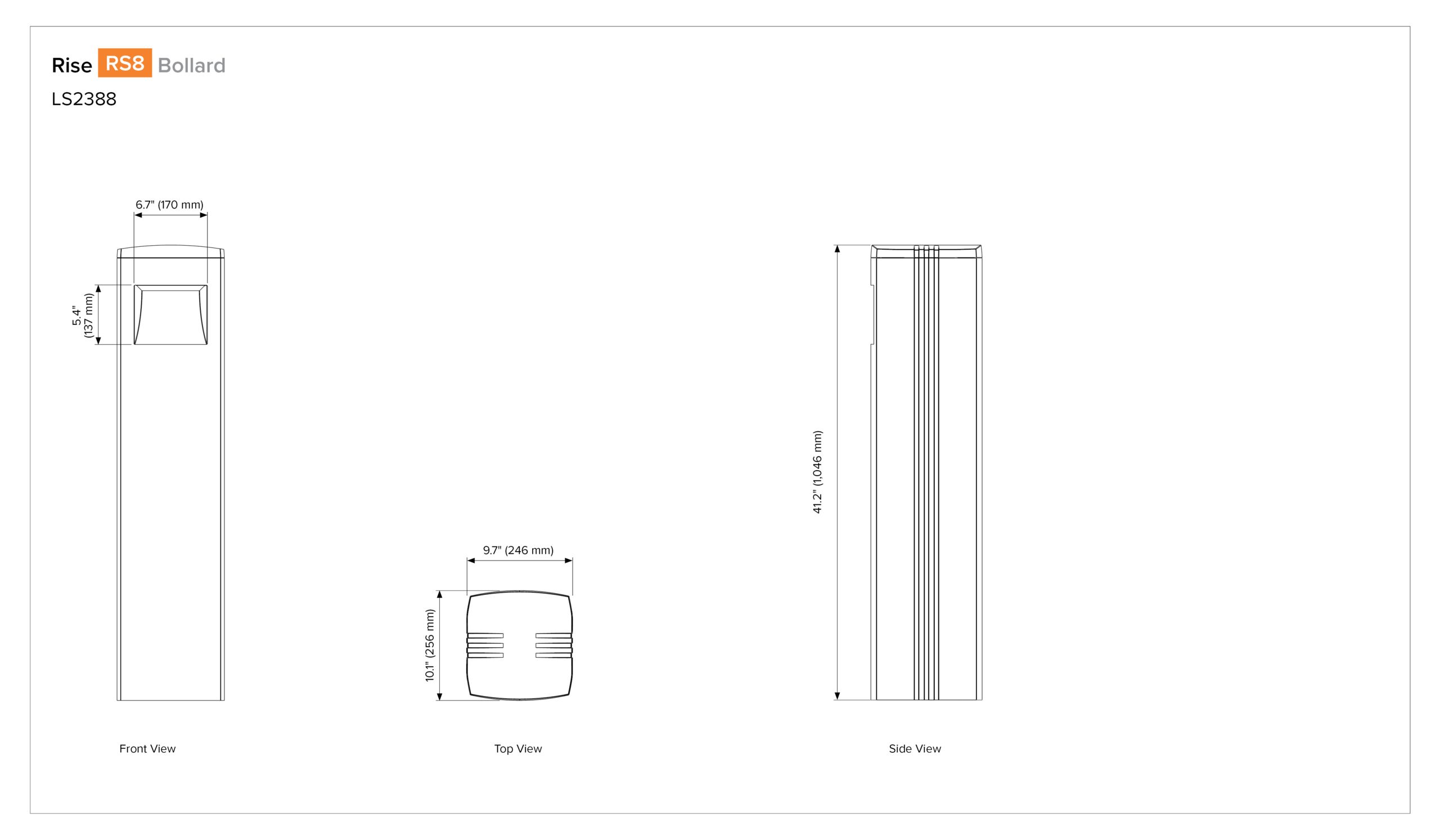

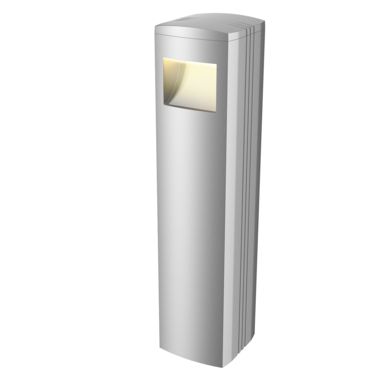

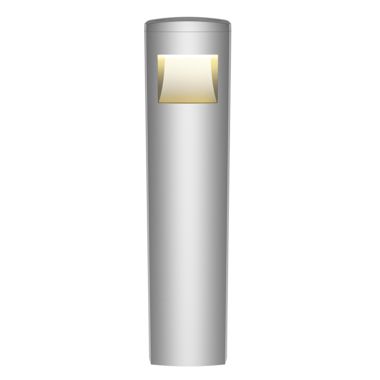

The Rise RS8 is the only commercial bollard with variable throw distances, orientations, luminous flux, correlated color temperature, and control options. The eased square design ensures it fits within many styles of architecture, and the 10” (0.25 m) robust design ensures the bollard complements project sites. The absence of visible hardware creates a clean and confident design, while the twist-and-lock design adds stability. The curved faceplate design offers a “no glare” feature for pedestrian comfort. Prevent scratching during installation with the galvanic isolator. There are many features in this design, and the benefits to the specifier, architect, installer, maintenance personnel, property manager, and guests are endless.

Supplied with

LS6334 Pre-Installation Kit







Features

Wattage Configuration 8 W, 11 W, 15 W, 25 W, 16 W, 22 W, 30 W, 50 W Typical Lifetime > 50,000 hrs (L70, B10) Input Voltage (Global) 220-240 Vac/dc, 50 Hz Input Voltage (NA only) 120 Vac/dc 60 Hz, 110-277 Vac/dc 60 Hz Dimming 0-10 V, Phase-Dimming IP Rating IP65 IES Classification Type II or Type III BUG Rating B0-U1-G0 (Ground Plane Version) Compliance UL - USA & Canada CE RCM Colour Options Warm White Cool White Download Datasheet

Specifications

Product Configurator

Customise Rise RS8 below

Light Engine

Required

8 W (08)

11 W (11)

15 W (15)

16 W (16)

22 W (22)

25 W (25)

30 W (30)

50 W (50)

LED Type

Required

Principle (P)

Select for a wide variety of applications in accent and general lighting (e.g., bollard and step lighting)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 2 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 2 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 2 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 2 SDCM)

Optics

Required

Clear Lens (CL)

Frosted Lens (FR)

Orientation

Choose from one of three orientation types available.

Required

Ground Plane (GP)

Ground/Ground (GG)

Ground/Vertical (GV)

Forward Throw

Pre-installed throw patterns

Required

Short (ST)

Medium (MD)

Long (LG)

Input Voltage

Required

120 Vac/dc, 60 Hz (04)

For phase-dimming controls only

110-277 Vac/dc, 60 Hz 0-10 V (09)

For use on 0-10 V controls

Control

Required

0-10V (10%) (AS)

0-10V (10%) (AS)

Phase-Dimming (PD)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Grey (AG)

Anthracite Grey (AG)

RAL7016 from RAL Classic collection

More info
Basalt Grey (BT)

Basalt Grey (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info

Accessories

For mounting the Rise RS8

This kit is required for the Rise RS8 and specified separately.

Pre-Install Kit (LS6334)

Pre-Install Kit (LS6334)

A pre-install kit for the Rise RS8
