In-grade
Erden E4 Foundation
Product Overview

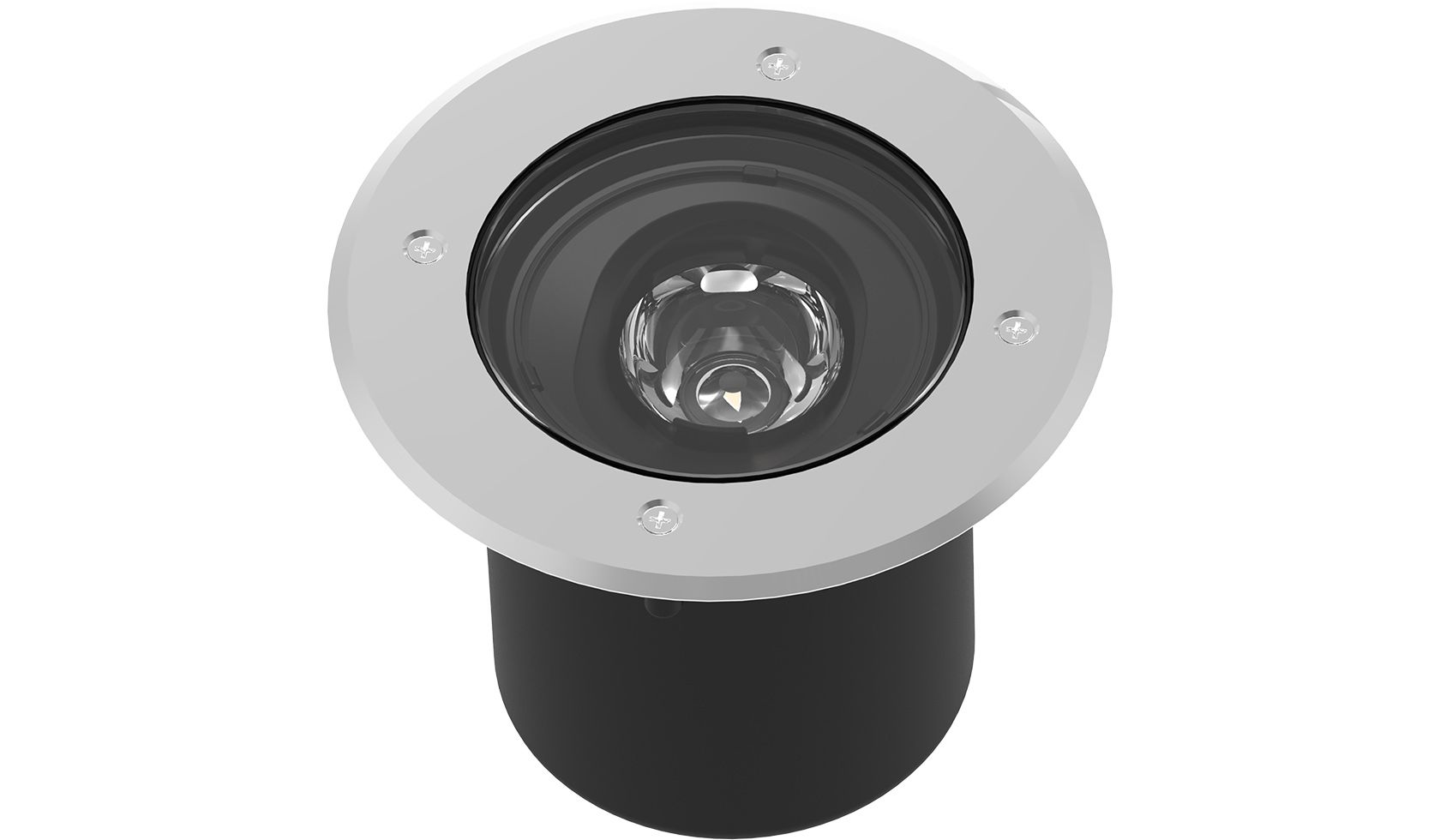

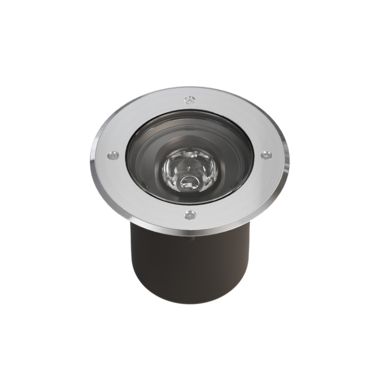

The Erden E2, Foundation is a high-performance compact stainless steel inground luminaire that delivers over 920 lumens in DALI, 0-10V, and non-dimmable control options. Available in 2700K, 3000K, 3500K and 4000K static white, it features adjustable tilt (-5° to 15°) and 360° rotatability for precise aiming, along with a special emissivity coating for efficient heat dissipation, improving thermal management and operational efficiency. Its polished or brushed stainless steel lid options and flexible installation choices, such as pre-install kits or direct burial, make it adaptable for various projects while ensuring exceptional performance and durability.
Features
Lumen Output 920 lm
Power Consumption ≤11 W
Typical Lifetime (TM21 Projected) ###,### hours (B10, L90, TM21 Projected)
Input Voltage 220-240 Vac, 50 Hz (CE) | 120/277 Vac, 60 Hz(UL) | Low Voltage: 24 Vdc
Control Protocol DMX/RDM, Artnet, 0-10V (sink or source)
Weight 4.4 lbs (2.0kg)
Drive-Over With OptiClear lens and pre-installation kit (LS647-K)
IP Rating IP68
IK Rating IK9
Static Load Rating 4,410 lb (2,000 kg)
Environment Inherently protected, suitable for use in poured concrete
Compliance
