Omnio COB OM2

OM2
LS411COB

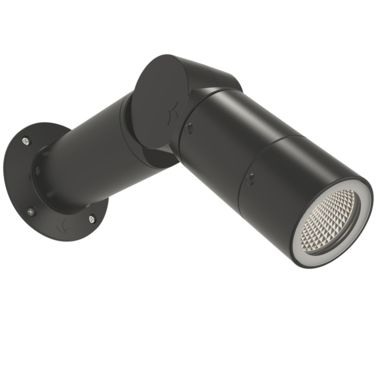

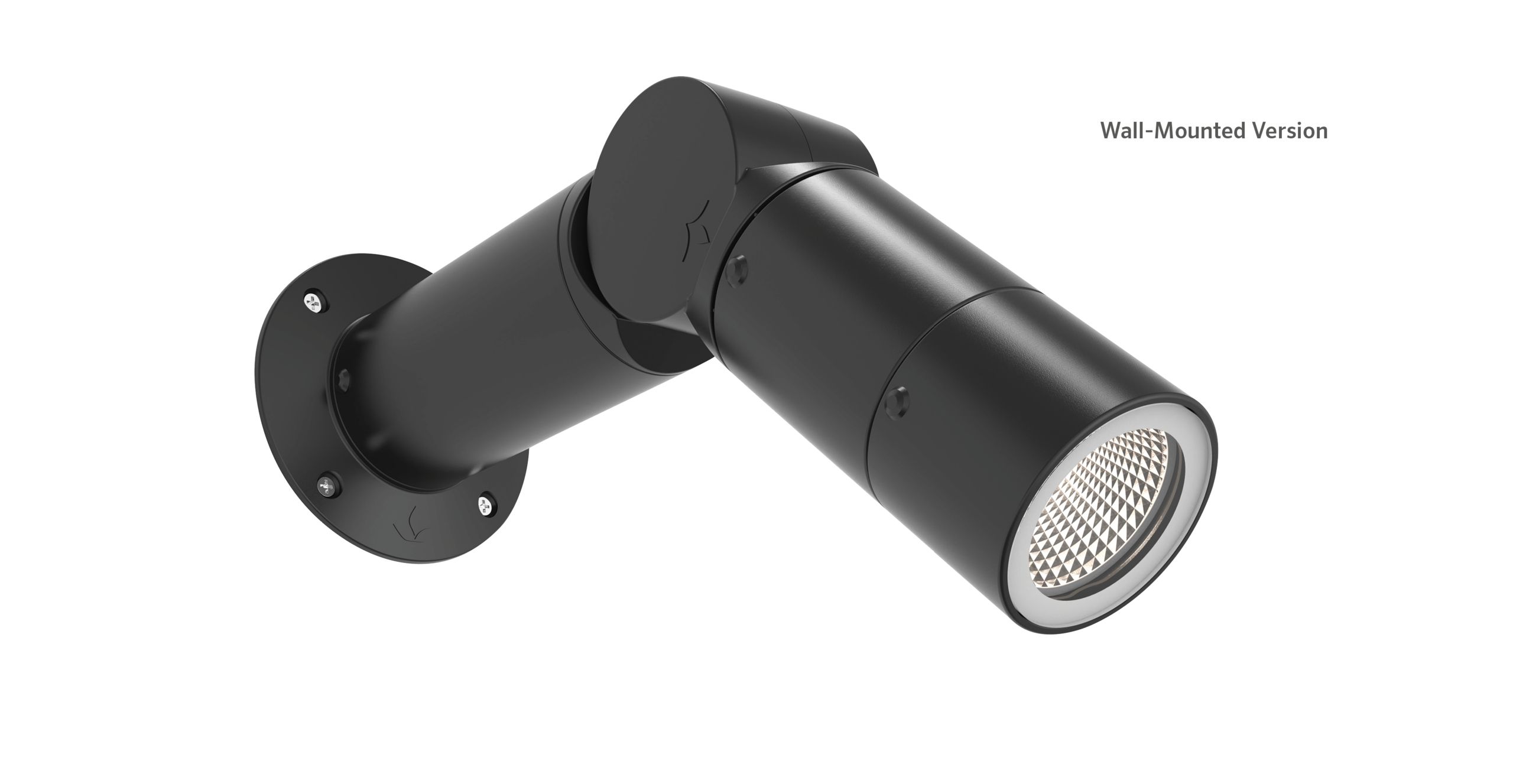

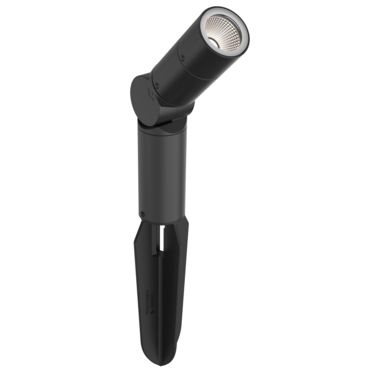

A compact and versatile surface mount luminaire suitable for wall mount and ground mount applications
Configure this product

Product Overview

The LS411COB uses next generation ‘Chip on Board’ technology to deliver powerful illumination and efficiency from a compact package. The high lumen density, combined with the traditional ‘lamp and reflector’ optics makes the LS411COB ideal for applications requiring wider distribution such as landscape lighting or other applications where sharp cutoff is not desired. Featuring a wide range of colour temperatures and optical/shielding combinations, the LS411COB retains the versatility of its discrete LED predecessor whilst dramatically boosting delivered lumens.

Specifications

Features

Lumen Output 1,490lm Power Consumption 25.6W IP Rating IP67 Compliance ETL - USA & Canada Colour Options BIM Cool White Warm White Download Datasheet

Product Configurator

Customise Omnio COB OM2 below

Application

Surface Mount

Pole Clamp

1/2" NPT Adaptor

Light Engine

Required

20W (20W)

20W (20W)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (927)

Static White (927)

2,700 K (90 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (850)

Static White (850)

5,000K (80 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

20°

Wide (WD)

Wide (WD)

40º

Wide Flood (WF)

Wide Flood (WF)

60°

Shielding

Required

Flush (1)

Snoot ( 2) (2)

Mounting

Required

Surface Mount (A)

Pole clamp (B)

1/2" NPT Adapter (C)

Input Voltage

Required

120-277V, 50/60Hz (09)

120-277V, 50/60Hz (09)

Mains Voltage

120-277V, 50/60Hz (29)

120-277V, 50/60Hz (29)

0-10V Dimmable Driver,

Finish

Required

Black (BL)

Black (BL)

Black powder coat

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powder coat

White (WT)

White (WT)

White powder coat

Accessories

Diffusers

10º Diffuser  (LS6145-10)

10º Diffuser (LS6145-10)

20º Diffuser  (LS6145-20)

20º Diffuser (LS6145-20)

30º Diffuser  (LS6145-30)

30º Diffuser (LS6145-30)

40º Diffuser  (LS6145-40)

40º Diffuser (LS6145-40)

Mounting & Installation

Pole Clamp - Black (LS6023-1-BL)

Pole Clamp - Black (LS6023-1-BL)

Black powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Pole Clamp - Silver (LS6023-1-SL)

Pole Clamp - Silver (LS6023-1-SL)

Silver powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Pole Clamp - White (LS6023-1-WT)

Pole Clamp - White (LS6023-1-WT)

White powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - Black (LS6023-2-BL)

Double Pole Clamp - Black (LS6023-2-BL)

Black powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - Silver (LS6023-2-SL)

Double Pole Clamp - Silver (LS6023-2-SL)

Silver powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - White (LS6023-2-WT)

Double Pole Clamp - White (LS6023-2-WT)

White powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Mounting Spike / Concrete Anchor (LS6054)

Mounting Spike / Concrete Anchor (LS6054)
