Omnio LED OM1 - LS411LED

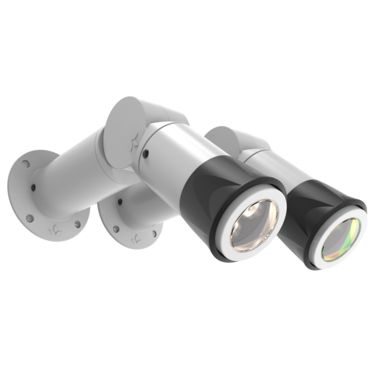

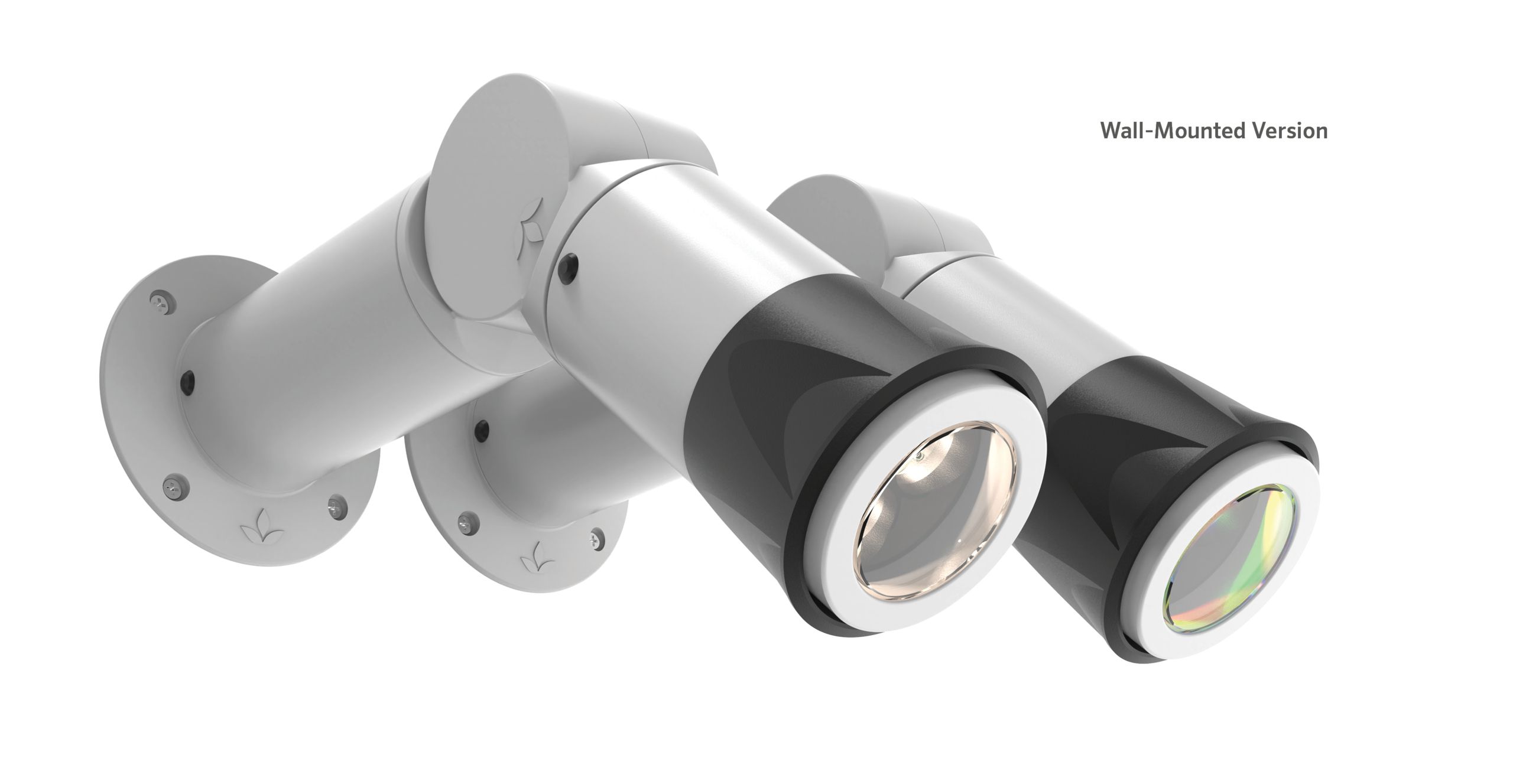

A compact and versatile surface mount luminare suitable for wall mount and ground mount

Product Overview

A compact, adjustable luminaire with an aesthetically pleasing form, featuring integral line voltage driver and a wide range of adjustability, which makes it ideal for general landscape lighting applications. The epoxy-coated, marine grade aluminium construction ensures a long service life, even in harsh environments.

Features

Lumen Output 970lm Power Consumption 14.2W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP67 Compliance ETL - USA & Canada CE Colour Options Warm White Cool White Blue RGB

Specifications

Accessories

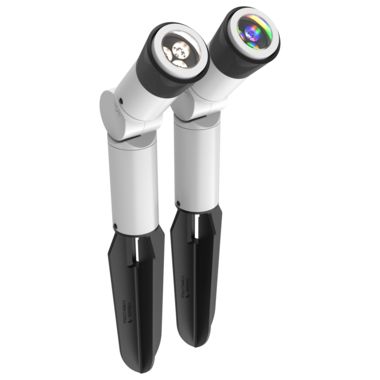

LS6054 Ground Stake

Product Configurator

Customise Omnio LED OM1 below

Light Engine

Required

9W (09)

12W (12)

15W (15)

Light Source

Required

2,700K, 80 CRI (D7)

2,700K, 80 CRI (D7)

Warm White (80 CRI, 3 SDCM)

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Linear (LN)

Linear (LN)

20° x 40°

Mounting

Required

Surface Mount (A)

Pole clamp (B)

1/2" NPT Adapter (C)

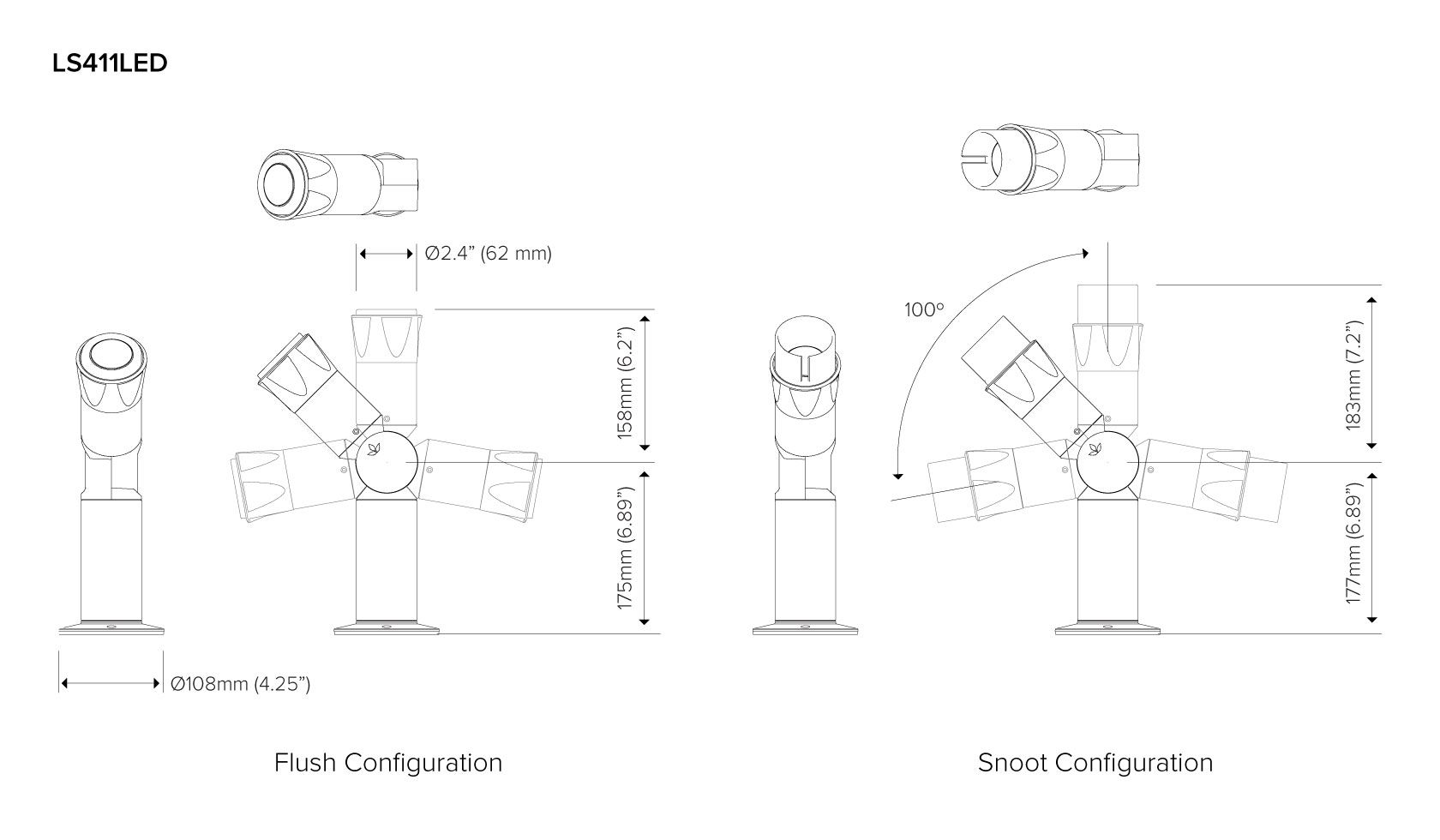

Snoot & Surface Mount (D)

Snoot & Pole Clamp (E)

Snoot & 1/2" NPT Adapter (F)

Input Voltage

Required

120-277 Vac, 50/60 Hz (09)

120-277 Vac, 50/60 Hz (09)

Mains Voltage

12V 60Hz or 12-24V DC (13)

12V 60Hz or 12-24V DC (13)

12-15V, 60Hz or 12-24V DC (23)

12-15V, 60Hz or 12-24V DC (23)

PWM Dimmable Driver (formerly 13-DIM)

Finish

Required

Black (BL)

Black (BL)

Black powder coat

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powder coat

White (WT)

White (WT)

White powder coat

Custom RAL (CC)

Custom RAL (CC)

Custom Colour Accessory required. MOQ applies. Consult factory for pricing

More info

Accessories

Mounting & Installation

Pole Clamp - Black (LS6023-1-BL)

Pole Clamp - Black (LS6023-1-BL)

Black powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Pole Clamp - Silver (LS6023-1-SL)

Pole Clamp - Silver (LS6023-1-SL)

Silver powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Pole Clamp - White (LS6023-1-WT)

Pole Clamp - White (LS6023-1-WT)

White powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Pole Clamp - Custom Colour (LS6023-1-CC)

Pole Clamp - Custom Colour (LS6023-1-CC)

Order to match luminaire powder coat colour. To suit 1.5" - 3.0" (38mm - 78mm) pole diameter.

Double Pole Clamp - Black (LS6023-2-BL)

Double Pole Clamp - Black (LS6023-2-BL)

Black powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - Silver (LS6023-2-SL)

Double Pole Clamp - Silver (LS6023-2-SL)

Silver powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - White (LS6023-2-WT)

Double Pole Clamp - White (LS6023-2-WT)

White powdercoat to suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Double Pole Clamp - Custom Colour (LS6023-2-CC)

Double Pole Clamp - Custom Colour (LS6023-2-CC)

Order to match luminaire powder coat colour. To suit 1.5" - 3.0" (38mm - 78mm) pole diameter

Mounting Spike / Concrete Anchor (LS6054)

Mounting Spike / Concrete Anchor (LS6054)
