Woda Brass WB3 - LS5330

High-performance projectors for underwater, wet/dry, and dry applications.
Configure this product Features Specifications

Product Overview

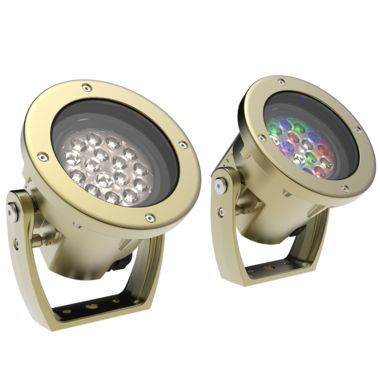

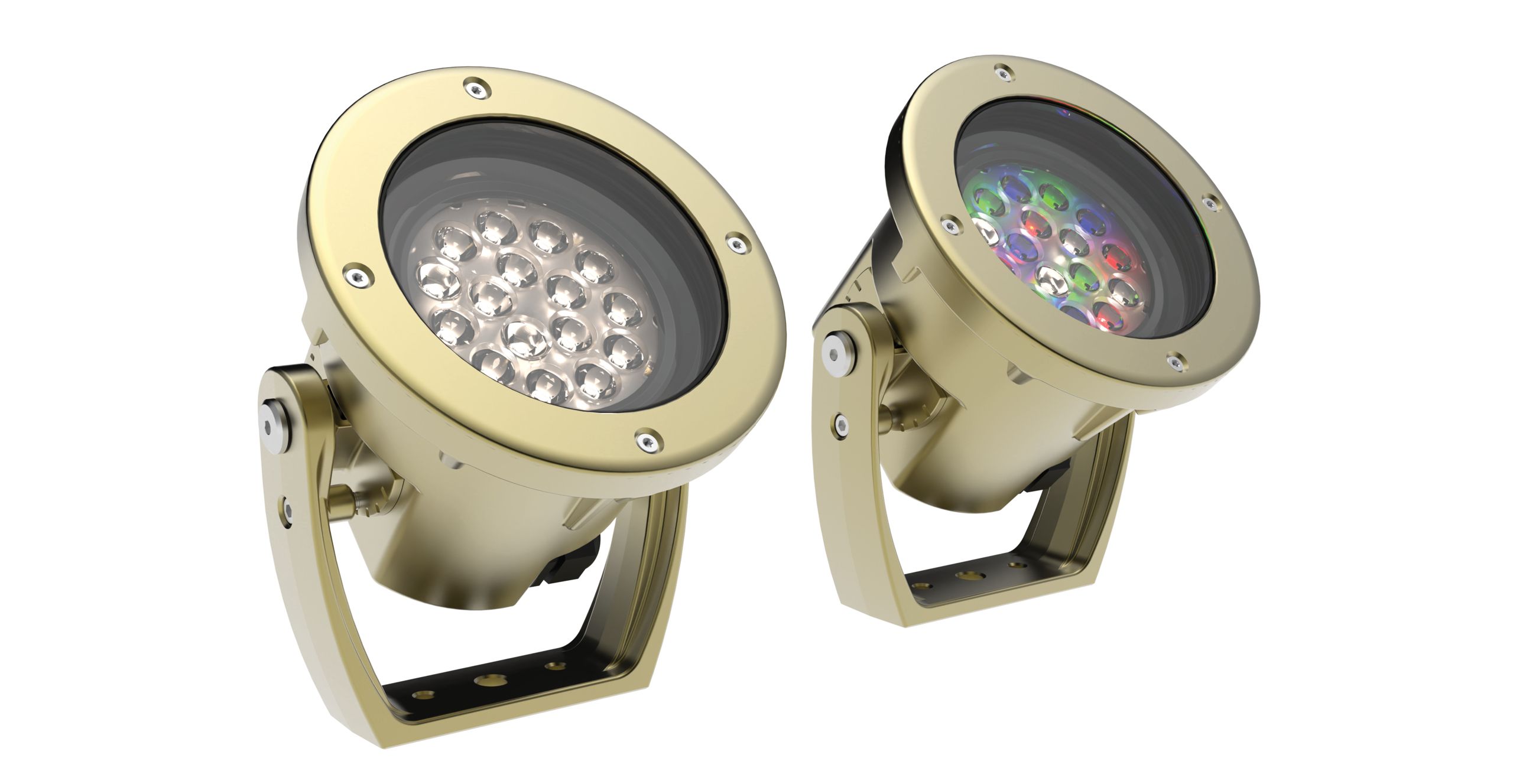

The Woda Brass WB3, is a pair of high-performance projectors that are precision-engineered for reliability in underwater, wet/dry, and dry applications. These luminaires are constructed from premium, corrosion-resistant brass and feature an impressive output of up to 2,600 lumens.

The Woda WB3 offers a range of configurable options, including RGBW (with royal blue) and static white CCTs, multiple beam angles, and additional glare control accessories. It ensures precise illumination of water features, sculptural installations, architectural elements, and landscapes, whether submerged or on land.

Easy-to-install with a 1 or 2 hole fixing mount yoke, the Woda WB3 is IP68 factory-sealed, for permanent submersion of up to 33’ (10m). Enhance any lighting project with the technical capabilities and elegance of the Woda WB3 , unlocking a realm of design possibilities.

Features

Lumen Output 2,590 lm Power Consumption < 15 W, < 29 W Typical Lifetime (TM21 Projected) > 179,506 hours @ 95°F (35°C) Water Temperature Input Voltage 30 to 48 Vdc Control Interface PowerSync Control Protocol DMX/RDM, Artnet, 0-10 V (sink or source) IP Rating IP68 to 33' (10 m) IK Rating IK8 Compliance UL - USA & Canada CE RCM FCC Color Options Warm White RGBW with Royal Blue Data Sheet

Specifications

Downloads

Data Sheet Install Guide
IES Files LS5330 ZIP (248.44 KB) DXF Files LS5330 ZIP (531.44 KB) Product Flyer LS5030 PDF (277.57 KB)

Product Configurator

LS5330 _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Woda Brass WB3 below

Installation Type

Select the installation type you require.

Underwater

Suitable for use in all submersible installations including fountains, water features and marine applications.

At-Grade

Suitable for wet/dry applications.

Power Consumption

For all PowerSync Controlled Luminaires

Required

15 W (15D)

29 W (29D)

Light Source

Required

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

33°

Wide (WD)

Wide (WD)

47°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 66º

Wide Vertical (WV)

Wide Vertical (WV)

66° x 20°

Glare Control

Factory-fitted glare control accessories.

Required

No Louver (N)

Snoot Array Louver (S)

Honeycomb Louver (H)

Input Voltage

Required

30 Vdc (13)

30 Vdc (13)

Low Voltage, Non-Dimmable

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

16 ft / 5 m (016)

Accessories

Controls

Refer to wiring diagrams for compatability

PowerSync™ - Pool, Spa, Fountains (LS6510)

PowerSync™ - Pool, Spa, Fountains (LS6510)

Translates PowerSync™ compatible luminaires to standard DMX/RDM, 0-10V control protocols

More info
Wet Location Power Suppy (LS6520)

Wet Location Power Suppy (LS6520)

Specifically approved for low voltage LED luminaires up to 30 Vdc, this power supply unit accepts 0-10 V or DMX protocols, with the ability to fine-tune dimming output.

More info
