Woda W3 Generation 2 - LS5030

High-Performance projectors, designed for applications in underwater and wet/dry environments.
Configure this product Features Specifications

Product Overview

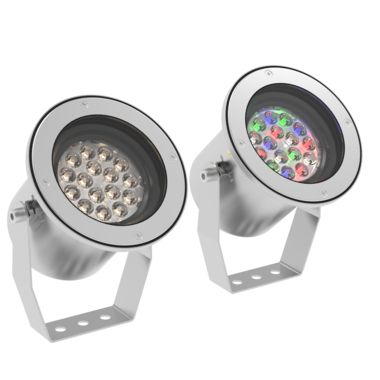

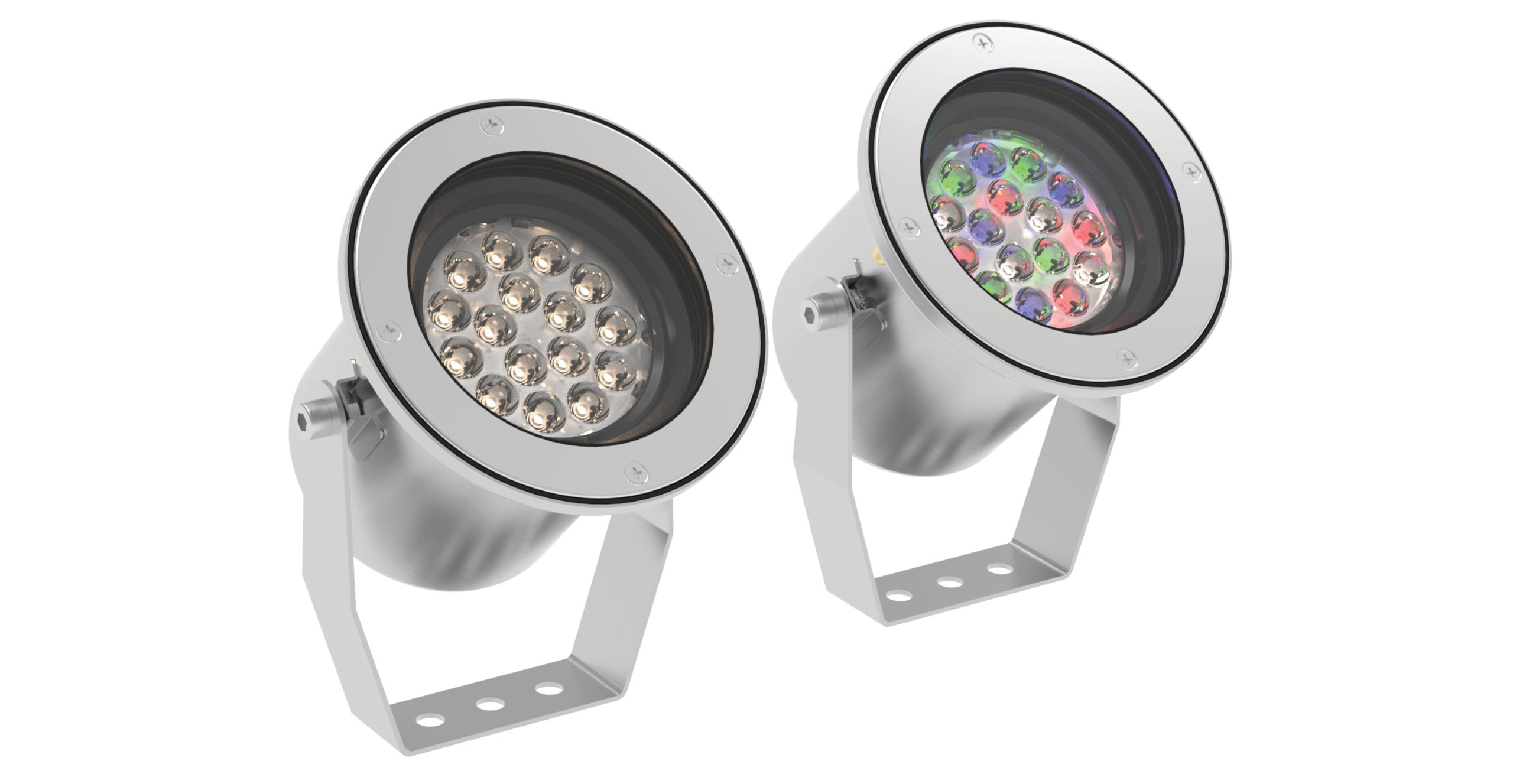

The next-generation Woda W3, are a pair of high-performance projectors, designed for lasting reliability in underwater and wet/dry applications.

With an impressive output of up to 3,600 lumens, and a collection of configurable options including RGBW and static white CCTs, this luminaire offers multiple beam angles, and additional glare control accessories.

Illuminate water features, sculptural, architectural, and landscape elements with precision, in or out of the water. Easy-to-install and precision-engineered, the Woda W3 is factory-sealed with an IP68 rating and constructed from marine-grade 316 stainless steel for the ultimate in corrosion resistance.

Transform your next project with the Woda W3 and unlock endless possibilities!

Features

Lumen Output 3,590 lm Power Consumption < 25 W, < 47 W Input Voltage 30 Vdc Typical Lifetime > 140,000 hours @ 35°C Water Temperature (B10, L70, TM21 Projected) Control Protocols DMX/RDM, Artnet, 0-10 V (sink or source) IP Rating IP68 to 33' (10 m) IK Rating IK7 Compliance ETL - USA & Canada CE RCM FCC Color Options Warm White Cool White RGBW with Royal Blue Data Sheet

Specifications

Downloads

Data Sheet Install Guide
IES Files LS5030 Gen2 ZIP (382.91 KB) DXF Files LS5030 Gen2 ZIP (325.38 KB) Product Flyer LS5030 PDF (258.94 KB)

Technology

Product Configurator

LS5030 _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Woda W3 Generation 2 below

Installation Type

Select the installation type you require.

Underwater

Suitable for use in all submersible installations including fountains, water features and marine applications.

At-Grade

Suitable for wet/dry applications.

Power Consumption

For all PowerSync Controlled Luminaires

Required

24 W (24D)

48 W (48D)

Light Source

Required

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

13°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 66º

Wide Vertical (WV)

Wide Vertical (WV)

66° x 20°

Glare Control

Factory-fitted glare control accessories.

Required

No Louver (N)

Snoot Array Louver (S)

Honeycomb Louver (H)

Input Voltage

Required

30 Vdc (13)

30 Vdc (13)

Low Voltage, Non-Dimmable

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Stainless Steel (SS)

Stainless Steel (SS)

Stainless Steel Finish

Epoxy Black (EB)

Epoxy Black (EB)

Epoxy black finish

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

16 ft / 5 m (016)

Accessories

Controls

Refer to wiring diagrams for compatability

PowerSync™ - Pool, Spa, Fountains (LS6510)

PowerSync™ - Pool, Spa, Fountains (LS6510)

Translates PowerSync™ compatible luminaires to standard DMX/RDM, 0-10V control protocols

More info
Wet Location Power Suppy (LS6520)

Wet Location Power Suppy (LS6520)

Specifically approved for low voltage LED luminaires up to 30 Vdc, this power supply unit accepts 0-10 V or DMX protocols, with the ability to fine-tune dimming output.
