Tristar LED TR1

TR1
LS265LED
A high performance fountain light
Configure this product

Product Overview

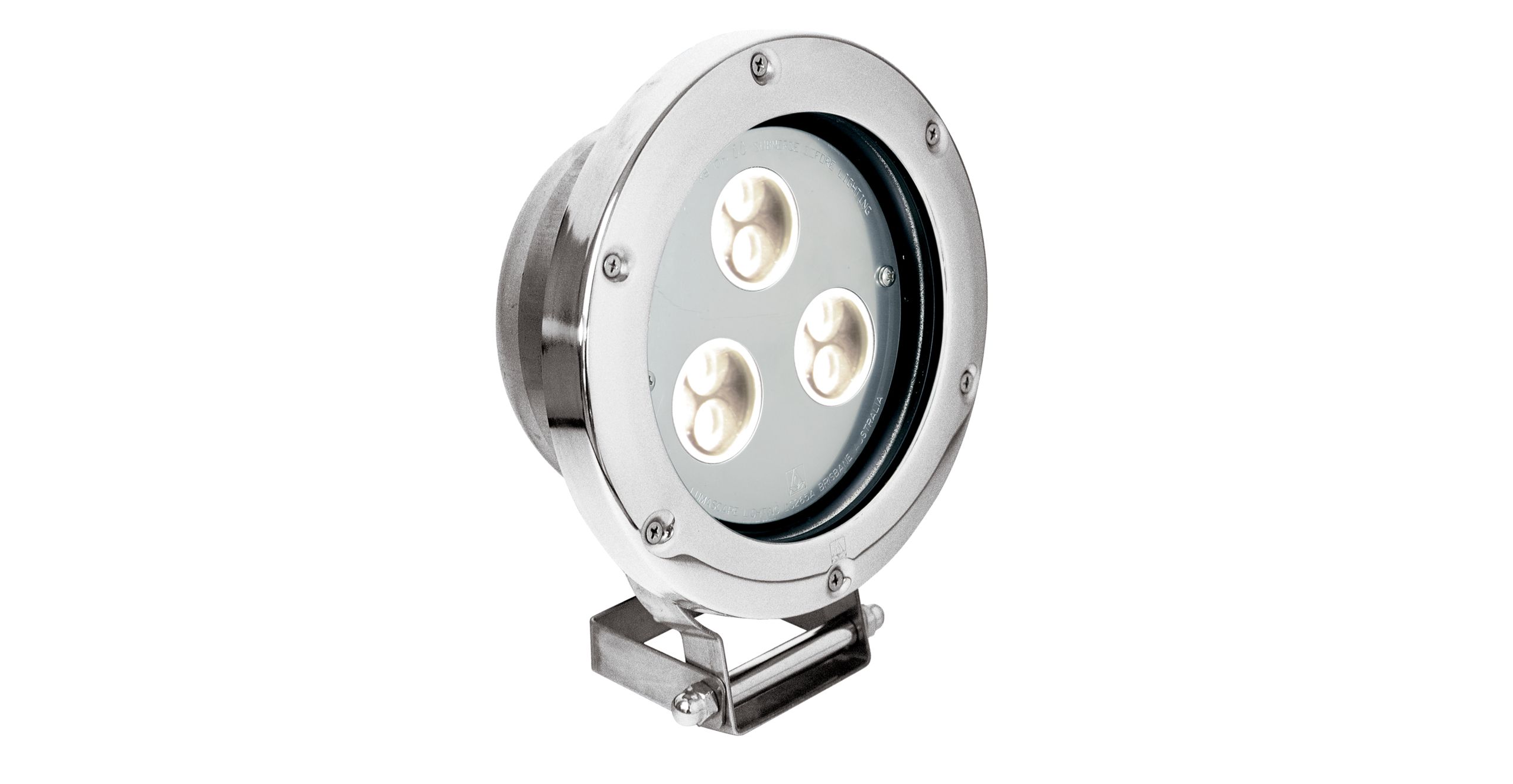

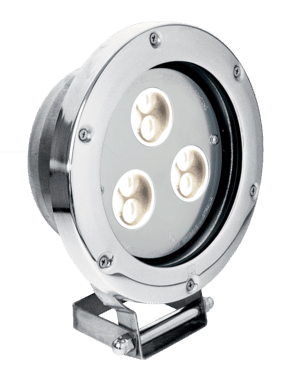

The Underwater LS265LED Tristar is a high-performance fountain light utilising LED technology. The durable Lumascape 316 marine grade stainless steel housing and long life LED are an ideal combination. The Tristar is designed to operate on pool and spa rated magnetic transformers making the installation as simple as other low voltage underwater luminaires. The LS265LED has the added advantage of being supplied factory sealed, with no requirement to open the luminaire during installation. This luminaire can also operate in very shallow water.

Specifications

Features

Lumen Output 2,160lm Power Consumption 32W Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 2m (6ft) Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White RGB

Product Configurator

Customise Tristar LED TR1 below

Light Engine

Required

28W (28)

28W (28)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Linear Horizontal (LH)

Linear Horizontal (LH)

40° x 20°

Linear Vertical (LV)

Linear Vertical (LV)

20° x 40°

Input Voltage

Required

12V 60Hz or 12-24V DC (13)

12V 60Hz or 12-24V DC (13)

12-15V, 60Hz or 12-24V DC (23)

12-15V, 60Hz or 12-24V DC (23)

PWM Dimmable Driver

Cable Length

For custom cable length contact factory.

Required

5m / 16ft (016)

5m / 16ft (016)

Flexible rubber cable

8m / 26ft (026)

8m / 26ft (026)

Flexible rubber cable

15m / 50ft (050)

15m / 50ft (050)

Flexible rubber cable

Accessories

Mounting & Installation

Mounting Plate (LS6074)

Mounting Plate (LS6074)

Square mounting plate
