Star LED ST1

ST1
LS375LED
A compact surface mount fountain light
Configure this product

Product Overview

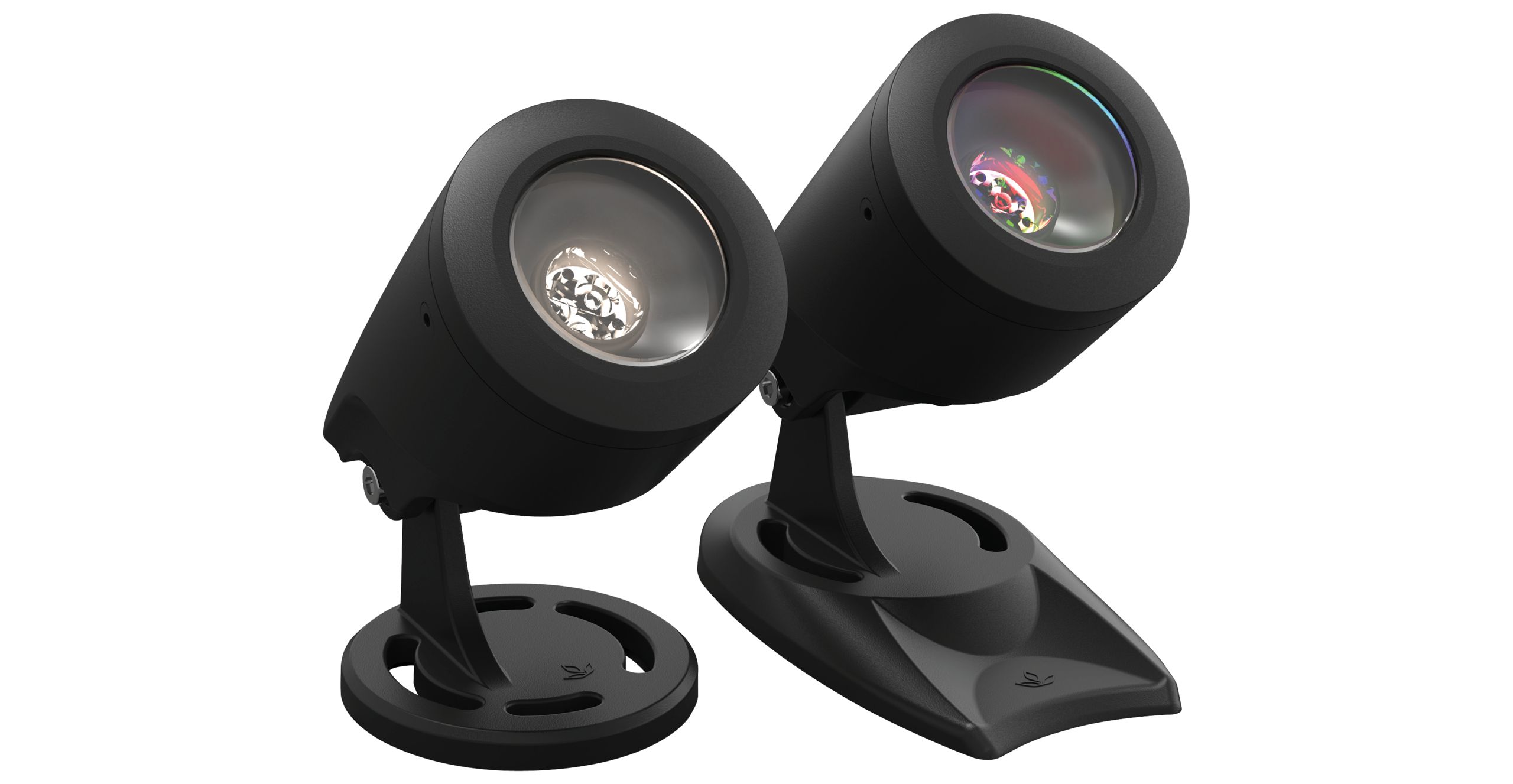

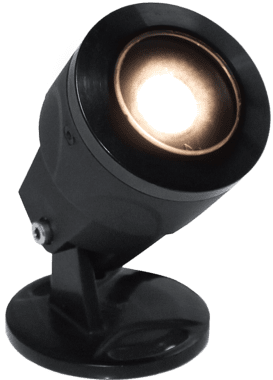

The Underwater LS375LED Star III is a compact, surface mounted fountain light designed for high-performance applications. Constructed of both high pressure die-cast copper alloy and high-strength polymer, the LS375LED represents the next generation of compact fountain lighting. Higher power options and more control, including the introduction of the new Lumascape d5 driver technology for advanced dimming, as well as high-resolution colour changing options are featured in this luminaire.

Specifications

Features

Lumen Output 726lm Power Consumption 10.8W Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 2m (6ft) Compliance ETL - USA & Canada Colour Options Blue Cool White Warm White RGB

Product Configurator

Customise Star LED ST1 below

Power Consumption

Required

6W

6W

9W

9W

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White

470nm (B4)

470nm (B4)

Blue

RGB  (M4)

RGB (M4)

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow Medium (NM)

Narrow Medium (NM)

20º

Medium (ME)

Medium (ME)

25º

Wide (WD)

Wide (WD)

40º

Input Voltage

Required

12V 60Hz or 12-24V DC (13)

12V 60Hz or 12-24V DC (13)

12-15V, 60Hz or 12-24V DC (23)

12-15V, 60Hz or 12-24V DC (23)

PWM Dimmable Driver

Cable Length

For custom cable length contact factory.

Required

4.8m/ 16ft (016)

4.8m/ 16ft (016)

Flexible rubber cable

7.9m/ 26ft (026)

7.9m/ 26ft (026)

Flexible rubber cable

15.2m/ 50ft (050)

15.2m/ 50ft (050)

Flexible rubber cable

19.8m/ 65ft (065)

19.8m/ 65ft (065)

Flexible rubber cable

24.9m/ 82ft (082)

24.9m/ 82ft (082)

Flexible rubber cable

Accessories

Mounting & Installation

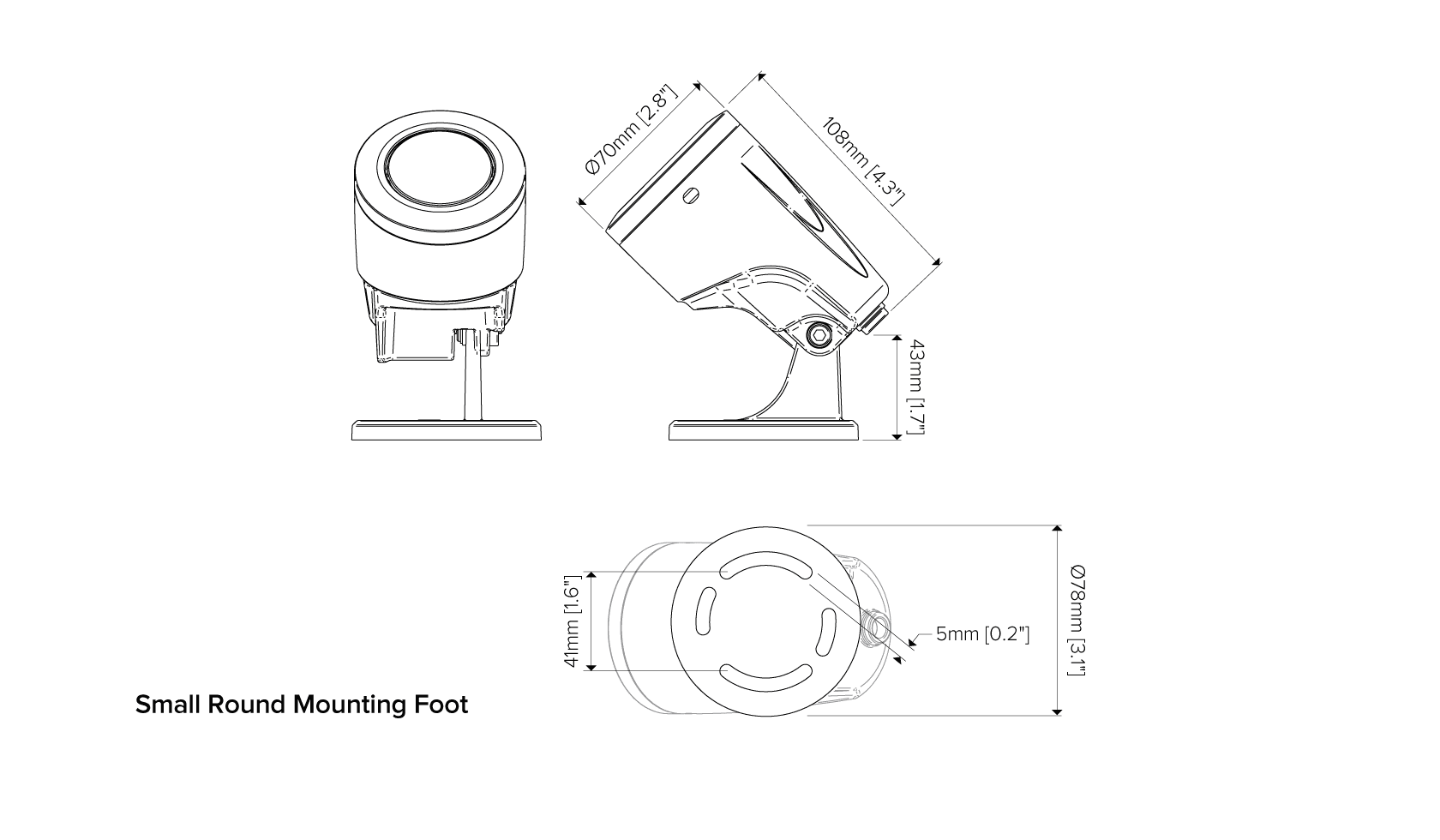

Mounting Plate (LS632)

Mounting Plate (LS632)

Small round mounting plate
