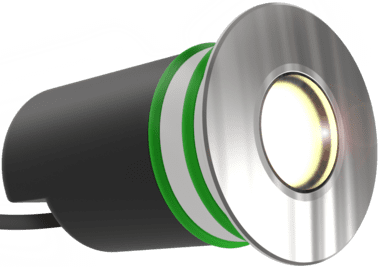

Vedita LED VE5 - LS9405LED

A versatile, low-voltage underwater luminaire with installation niche

Product Overview

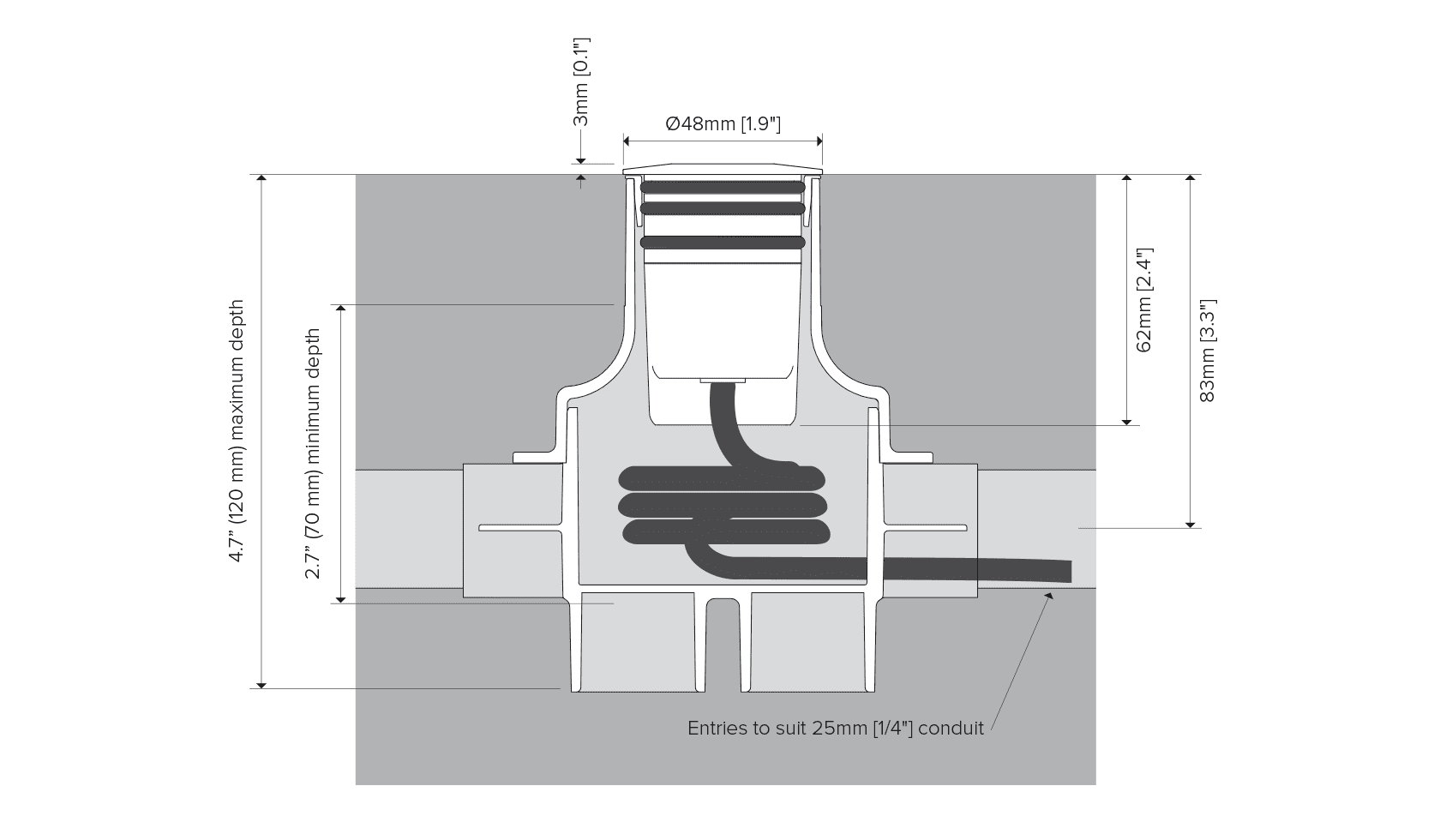

The Underwater LS9405LED Vedita is specifically engineered for underwater use in fountains, water features and is suitable for saline waters. When high output is required, it can be deployed in its full output, 2W configuration; if a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology.  This luminaire comes with a pre-installation blockout niche.  Constructed in part from 316 marine grade stainless steel, this luminaire also comes standard with Lumascape proprietary ElectroPolishPlus™ surface treatment.
Darksky compliant configurations are available.

Features

Lumen Output 180lm Power Consumption 2.8W Typical Lifetime (TM21 Reported) > 60,000 hours @ 35°C Water Temperature (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 69,667 hours @ 35°C Water Temp (B10, L90, TM21 Projected) Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 2m (6ft) IK Rating IK10 Darksky Configuration < 5lm Uplight, < 100lm total Compliance ETL - USA & Canada CE Darksky Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Product Configurator

Customise Vedita LED VE5 below

Light Engine

Required

1 W (1)

2 W (2)

Light Source

Required

Static White (C7)

Static White (C7)

2,200 K (80 CRI, 3 SDCM)

Static White (D7)

Static White (D7)

2,700 K (80 CRI, 3 SDCM)

Static White (H6)

Static White (H6)

3,000 K (80 CRI, 3 SDCM)

Static White (W4)

Static White (W4)

4,000 K (80 CRI, 3 SDCM)

Single Color (B4)

Single Color (B4)

Blue (470 nm)

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Medium (ME)

Medium (ME)

20°

Wide (WD)

Wide (WD)

30°

Linear (LN)

Linear (LN)

10° x 40°

Marker (FL)

Marker (FL)

Diffused lens

Darksky (DS)

Darksky Compliant

Input Voltage

Required

12-15 Vac, 60 Hz or 12-24 Vdc (23)

12-15 Vac, 60 Hz or 12-24 Vdc (23)

PWM Dimmable Driver

12-15 Vac, 60 Hz or 12-24 Vdc (13)

12-15 Vac, 60 Hz or 12-24 Vdc (13)

Tilt

Required

Standard (U)

Vertical, 0° tilt

Wall Wash (W)

Not applicable with Flood (FL) beam

Cable Length

Required

26 ft (026)

Flexible rubber cable

50 ft (050)

Flexible Rubber cable

65 ft (065)

Flexible rubber cable

82 ft (082)

Flexible rubber cable
