Leader Cable Powersync™ Extra Low Voltage 16AWG (1.5mm²) + Data

Leader Cable Powersync™ Extra Low Voltage 16AWG (1.5mm²) + Data - LS6445

For Connection Type 43 in CE and UL installations

Configure this product

Product Overview

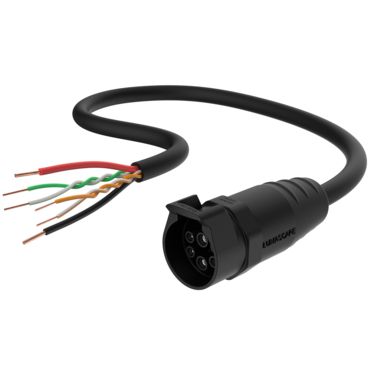

2-core, 16 AWG (1.5 mm²) plus 2 twisted pairs 23 AWG (0.34 mm²) leader cable suitable for use in CE and UL installations. Compatible with all luminaires with Type 43 connectorized supply cable options. Supplied fitted with an IP68 connector for pairing with the first connectorized luminaire in a Powersync™5, Low Voltage circuit. Comes complete with a matching End of Circuit, Powersync5, Low Voltage, Terminator Plug.

Note: Select the corresponding cable type according to the integrated controls of the chosen luminaire. Contact Lumascape for more information.

Suitable for use with
LS9230	Faisca F3 Facade Marker

Product Configurator

LS6445 _ _

Reset to Default Clear Selected Add

Customise Leader Cable Powersync™ Extra Low Voltage 16AWG (1.5mm²) + Data below

Control Type

Select the corresponding cable type according to the integrated controls of the chosen luminaire.

Required

Non-Dimmable (ND)

2 x 16 AWG (1.5 mm²) + 4 x Data

PowerSync (PV)

2 x 16 AWG (1.5 mm²) + 4 x Data

Cable Length

Leader Cable Extra Low Voltage Powersync™ 16AWG (1.5mm²) for use in CE and UL installations.

Required

10 ft / 3m (010)

16 ft / 5m (016)

50 ft / 15m (050)

66 ft / 20m (066)

98 ft / 30m (098)
