Faisca F3 - LS9230

Requires Low Voltage PowerSync 5 Controller (LS6555)

Product Overview

Designed for high-end architectural applications, where photometric performance, reliability, and serviceability are critical.

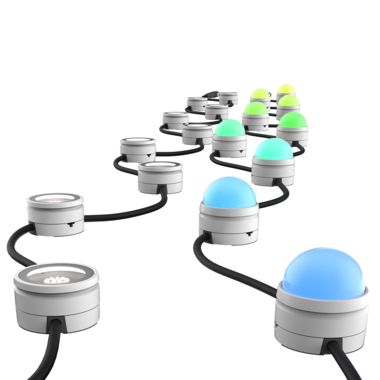

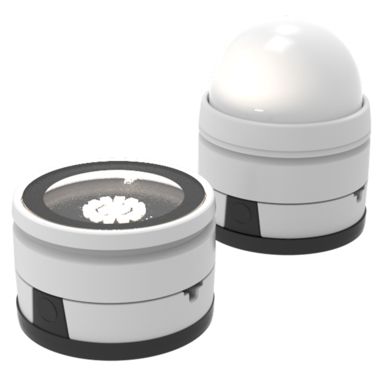

The Faisca F3 is an intelligent, ultra-high-output marker light with a simple yet elegant design. The plug-and-play electrical connections enhance the quick and easy installation process by preventing incorrect connections. Leader cables of up to 492' (150 m) give greater flexibility during installation as power supplies and control equipment can be housed well away from the luminaires. High-quality Luxeon® LEDs achieve high-intensity colors that are beautiful, rich and vibrant. All 16 LEDs can be controlled independently to provide extremely dynamic twinkling effects.

From highlighting architectural elements to super-smooth crossfades and color flows, imagination is the only limit to what can be achieved with the Faisca F3.

Features

Lumen Output Flat Lens: 405 lm | Diffused Dome: 220 lm Power Consumption 3 W, 5 W Typical Lifetime > 60,000 hrs (L70, B10, TM21 Reported) Control DMX/RDM, Artnet, sACN Weight 0.55 lb (0.25 kg) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating Flat Lens: IK7 | Diffused Dome: IK9 Vibration Resistance 3G Rating (ANSI C136.31) Compliance UL - USA & Canada CE RCM FCC Color Options Warm White Cool White RGBA RGBW with Royal Blue Data Sheet

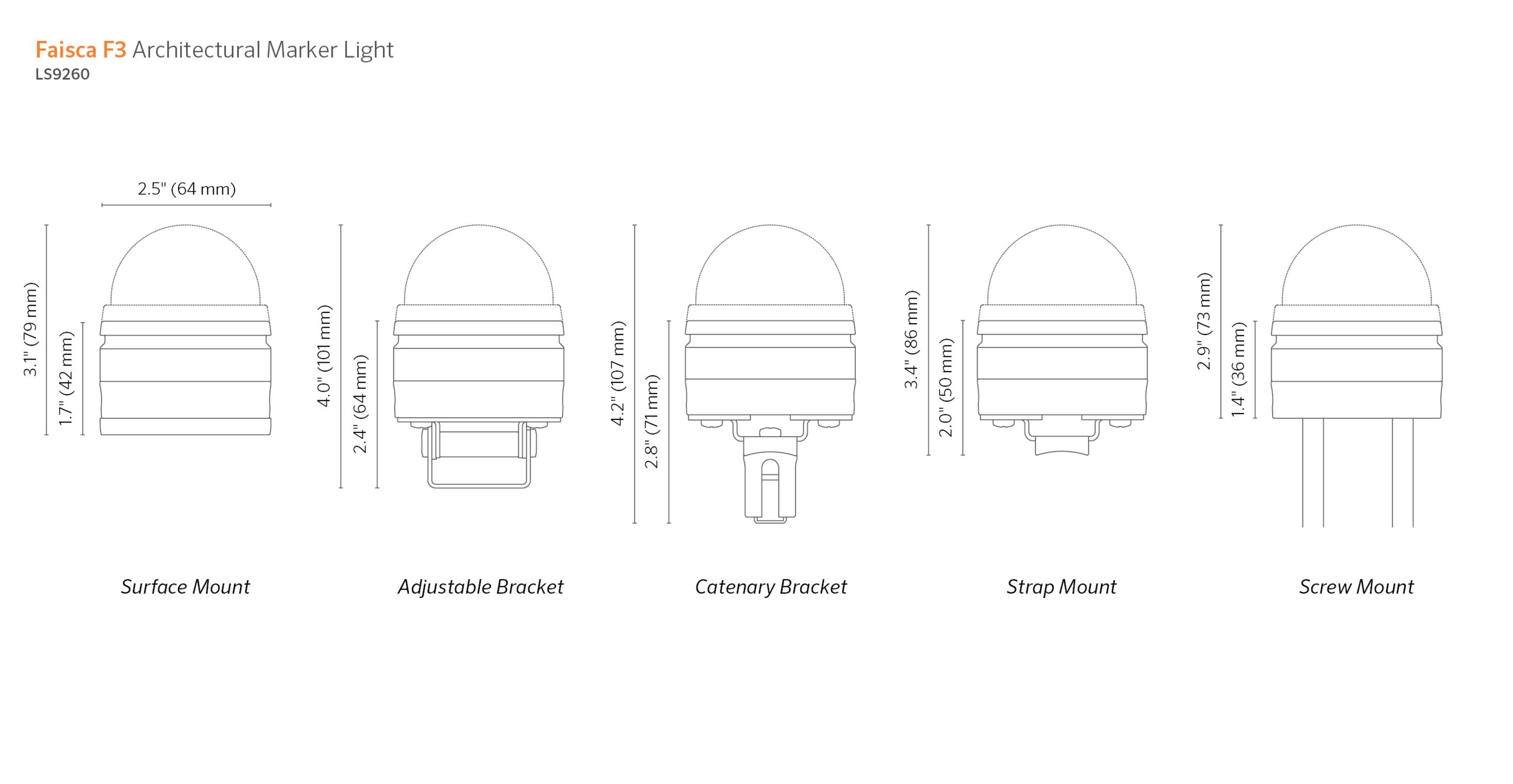

Specifications

Videos

Product Highlight | Faisca F3
Watch a brief video outlining the performance and capabilities of Lumascape's newest luminaire, the Faisca F3 architectural marker light.

Accessories


Control
LS6555 PowerSync5 Data Injector, Low Voltage, Generation 2 (Required for PS installations only)
LS6447 PowerSync Terminator Connectorized, Low Voltage 30-48 Vdc

Wiring (Connection Type 43)
LS6445-PV Leader Cable, Low Voltage 30-48 Vdc, 2-Core + 2 twisted pairs, PowerSync
LS6446-PV Jumper Cable, Low Voltage 30-48 Vdc, 2-Core + 2 twisted pairs, PowerSync
LS6445-ND Leader Cable, Low Voltage 30-48 Vdc, 2-Core + 2 twisted pairs, Non-Dimmable
LS6446-ND Jumper Cable, Low Voltage 30-48 Vdc, 2-Core + 2 twisted pairs, Non-Dimmable

Product Configurator

Number of Nodes

Select the number of nodes required in a string.
