Pool, Spa and Fountain Power Supply

PS
LS6510
Integrated power and data for pool, spa and fountains
Configure this product

Product Overview

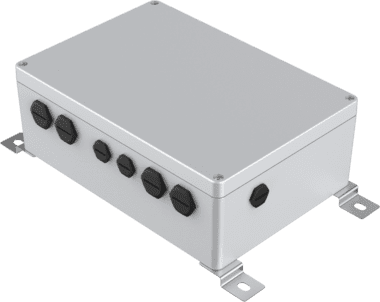

The LS6510 Power Supply combines power and dimming control into a single convenient unit. Specifically approved for pool, spa and fountain luminaires up to 30V DC, the LS6510 accepts 0-10V or DMX protocols, with the ability to fine tune dimming output. This makes it easier to use with many other manufacturer's luminaires, as well as the complete suite of Lumascape underwater luminaires. The diecast aluminium housing features a 9-step surface treatment process, including two layers of powder coat, making the LS6510 perfect for poolside locations or other locations where corrosion/exposure is of concern. The LS6510 conforms to the UL379 pool, spa and fountain power unit standard, making it the ideal solution for a wide range of underwater lighting projects.

Features

Power Consumption TBA IP Rating IP65 Output Circuits TBA Compliance ETL - USA & Canada Download Datasheet

Product Configurator

Customise Pool, Spa and Fountain Power Supply below

Output Voltage

Required

30V Secondary

30V Secondary

24V Secondary

24V Secondary

Power Consumption

Required

240W

240W

Input Voltage

Required

120V, 60Hz

120V, 60Hz

Control

Required

Non dimmable

Non dimmable

For single colour, non-dimming applications only.

PowerSync

PowerSync

Required for all dimming and colour changing applications. LS6540 Data Injector required - order separately

PWM

PWM

0-10V or DMX Input, PWM signal + LV power output

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black

Black

RAL9004 from RAL Classic collection

Anthracite Grey

Anthracite Grey

RAL7016 from RAL Classic collection

Bassalt Grey

Bassalt Grey

RAL7012 from RAL Classic collection

Anodic Silver

Anodic Silver

RAL9006 from RAL Classic collection

White

White

RAL9016 from RAL Classic collection

Dark Bronze

Dark Bronze

RAL8019 from RAL Classic collection

Latte

Latte

RAL7006 from RAL Classic collection

Dark Aluminium

Dark Aluminium

RAL9007 from RAL Classic collection
