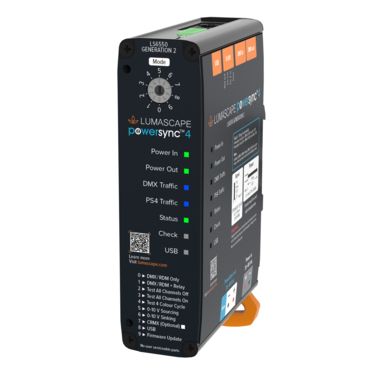

PowerSync™ LV Data Injector - LS6550

Translates DMX/RDM, 0-10 V and PWM into PowerSync 4 for the digital control of intelligent luminaires.

Product Overview

This allows highly-granular addressing and high-speed digital control of every luminaire, using only three wires. The data injector is DIN rail mountable designed to be installed in a switchboard, next to the power supply and circuit breaker that is supplying power to the controlled lighting circuit. Accepts a growing list of standard protocols (0-10 V, DMX/RDM) for simple integration with a wide selection of control systems using these industry standard protocols.

Features

Unit Power Consumption < 5W Input Voltage Low Voltage 30-48 Vdc Connected Current 16 A Dimming Options DMX/RDM, PWM, 0-10 V IP Rating IP30 Compliance ETL - USA & Canada CE CCC Download Datasheet
