Linealux L1 Generation 2
Product Overview

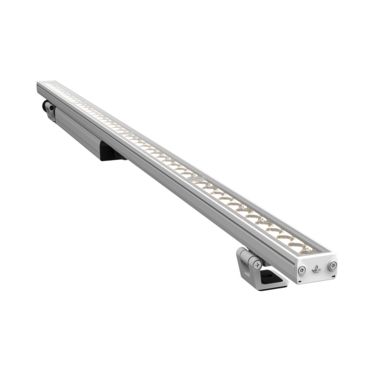

The Linealux L3 is a compact, high-performance linear grazer luminaire combining technology and performance in a stylish design. Packed with features including EasyGlow™ visual comfort, CoolDrive™ thermal management technologies and MicroAntileach™. Controllable in 1 foot segments through the use of PowerSync™ and provides superb color-over-angle consistency and blending of colors even at
close blending distances.
Features
Lumen Output 5,280 lm
Power Consumption 15.1 W/ft (12 W/ft LED Power)
Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported)
Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Reported)
Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz
Earth Leakage 0.2 mA @ 120 Vac, 0.42 mA @ 240 Vac, 0.24 mA @ 277

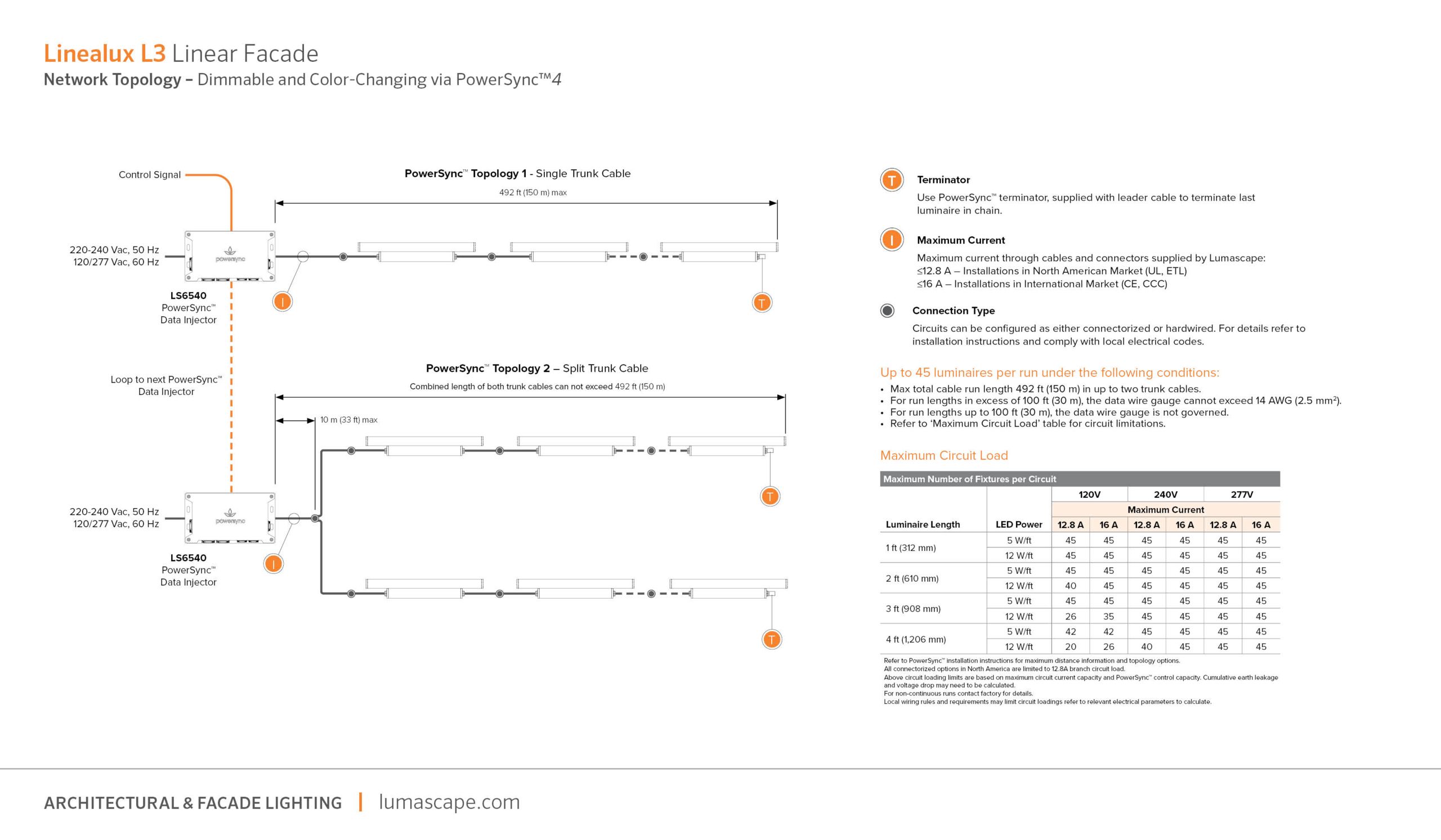

Control Interface PowerSync
Control Protocol DMX / RDM, Artnet, PWM, 0-10 V
IP Rating IP66 / IP67 (Passes IP68 Test)
IK Rating IK6 Construction; IK10 accessories available on request
Vibration Resistance 3G Rating (ANSI C136.31)
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Videos
Product Highlights | Linealux L3
An introduction to the Linealux L3
Accessories
| Control | |
| LS6540 | PowerSync Data Injector, Line Voltage, Generation 2 |
| Wiring | |
| LS6402U-PS | Leader Cable, Line Voltage, 4-Core, PowerSync |
| LS6404U-PS | Jumper Cable, Line Voltage, 4-Core, PowerSync |
| Glare Control | |
| LS6237 | External / Slatted Louver |
| LS6238 | External Shield / Visor 1-sided |
| LS6239 | External Shield / Visor 3-sided |

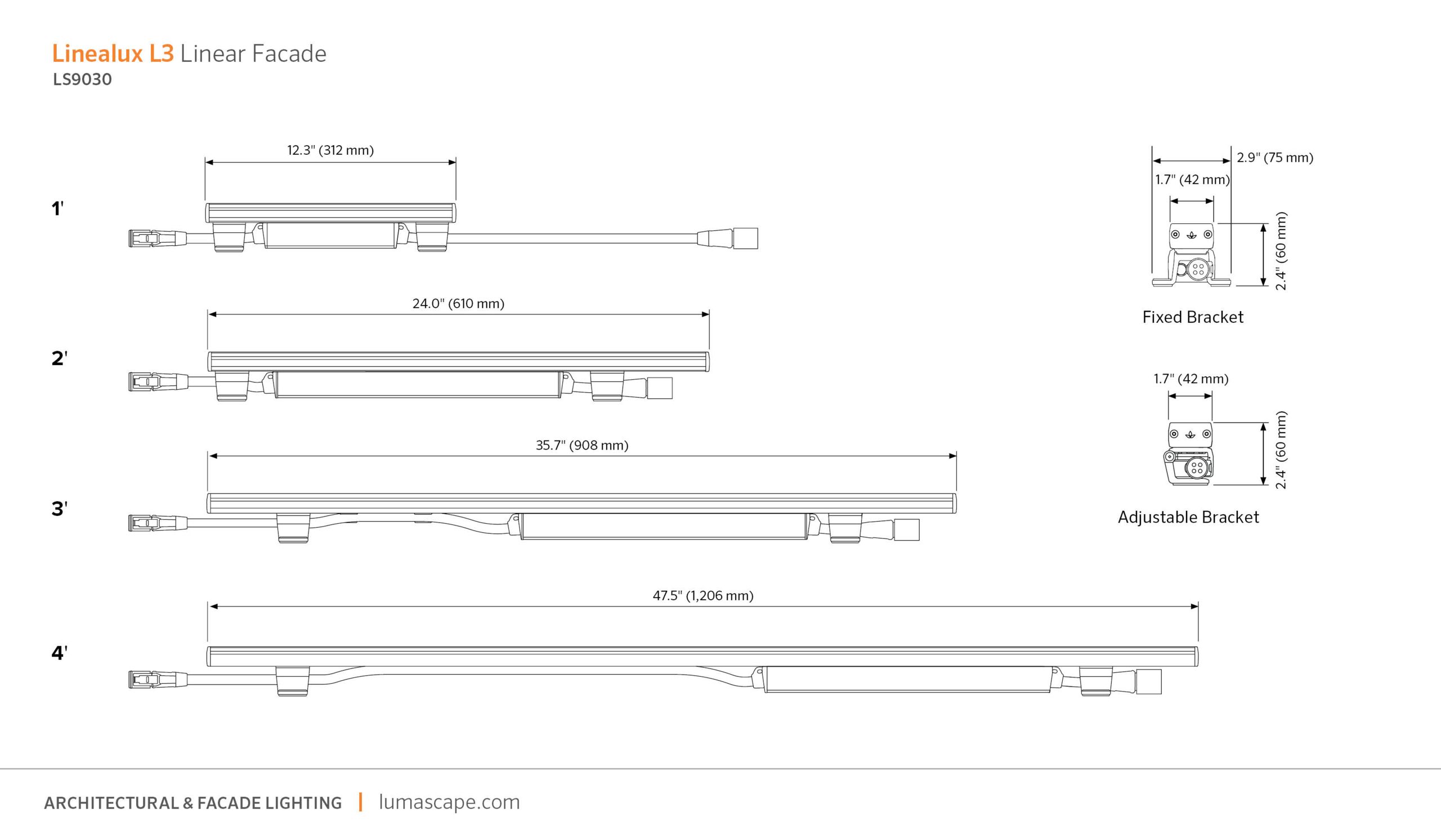

| Mounting | |
| LS6221-06 | 6" (152 mm) Stand Off Bracket |
| LS6221-12 | 12" (305 mm) Stand Off Bracket |
| LS6221-18 | 18" (47 mm) Stand-Off Bracket |
| LS6221-24 | 24" (610 mm) Stand-Off Bracket |
| LS6221-48 | 48" (1,219 mm) Stand-Off Bracket |
Product Configurator
Length
Select the luminaire length
