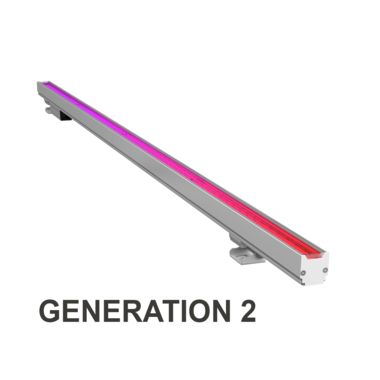

Linealux L1 Generation 2

Linealux L1 Generation 2 - LS9010

An architectural grade luminaire that combines technology and performance in a stylish low profile linear form factor.

Configure this product Features Specifications Videos Accessories

Product Overview

At only 1.1" (28 mm) wide, the Generation 2, Linealux L1 mini grazer provides enormous creative lighting potential, in a very small package. Packed with features including EasyGlow™ visual comfort, CoolDrive™ thermal management and PowerSync™ communication technologies. PowerSync allows for highly granular digital control via DMX/RDM, with no additional wiring.

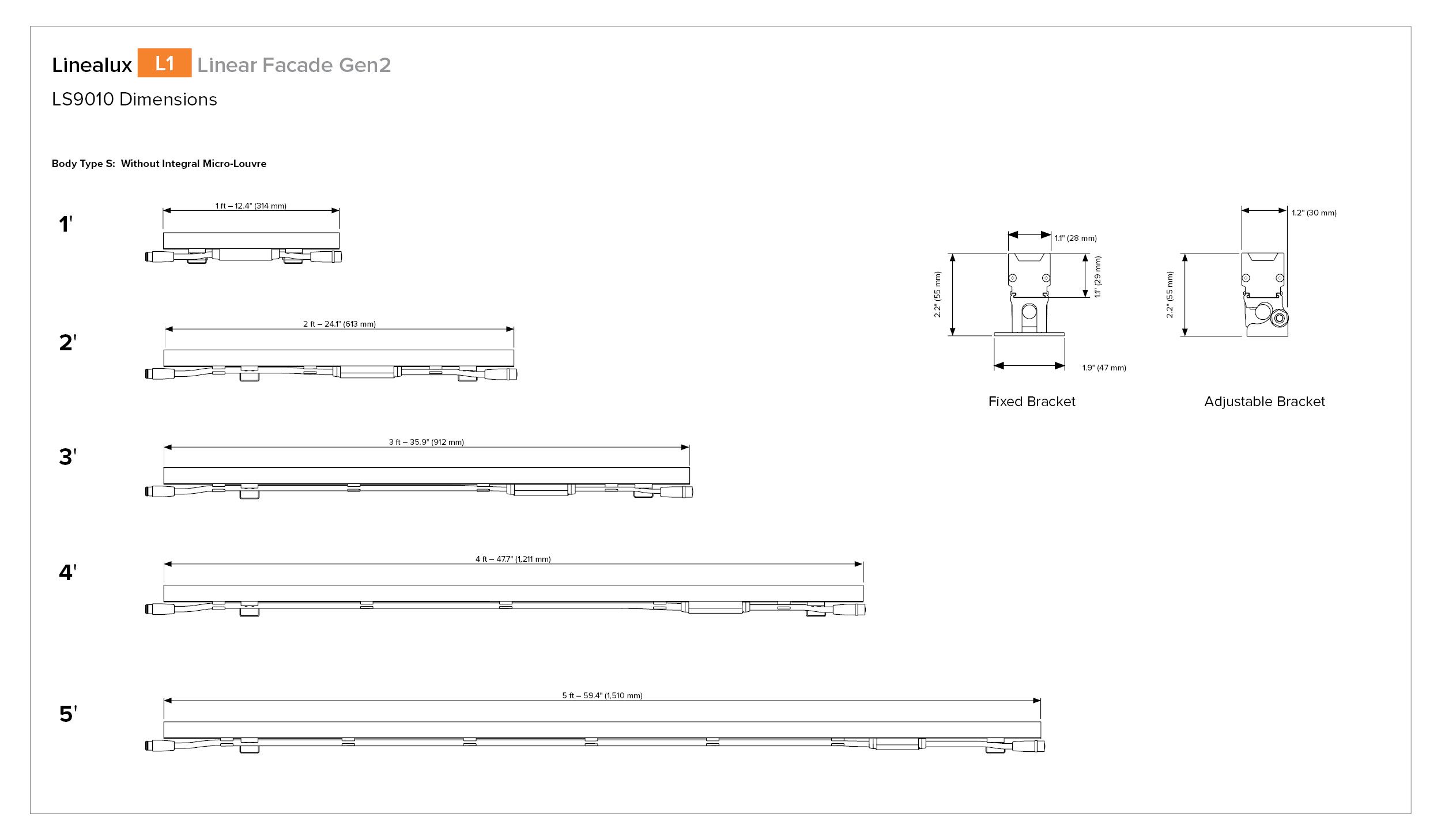

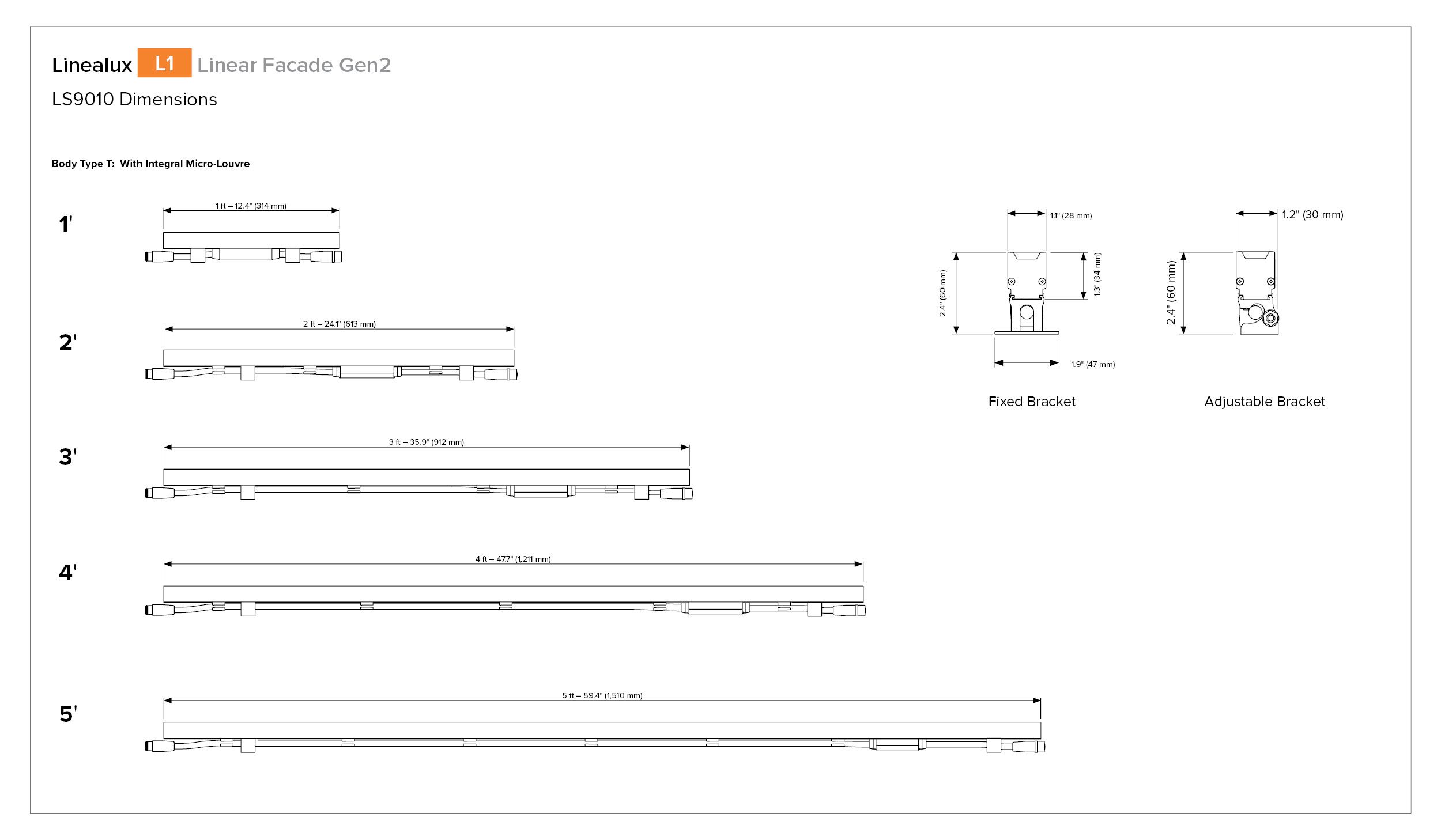

Unique and flexible designer optics allow wide end-to-end spacing while maintaining excellent uniformity and superb color-over-angle and blending consistency even at close grazing distances. Available in a range of standard lengths from 1 ft (300 mm) to 5 ft (1500 mm), the Linealux L1 Generation 2 provides excellent installation flexibility.

Using the Linealux L1 Generation 2 in your lighting project, imagination really is the only limit!

Features

Lumen Output 2,020 lm Power Consumption 7 W/ft, 5 W/ft Typical Lifetime > 72,000 hours (B10, L70, TM21 Reported) Input Voltage Low Voltage 30 to 48 Vdc Control Interface PowerSync Control Protocol DMX/RDM, Artnet, 0-10 V (Sink or Source) IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK6 Vibration Resistance 3G Rating (ANSI C136.31) Compliance

Color Options Warm White

Data Sheet

Specifications

Videos

Product Highlights | Linealux L1

The smallest of its kind, the Linealux L1 mini linear grazer provides enormous creative lighting potential in a very small package.

Webinar | Linealux L1

Watch the webinar that introduces the next-generation Linealux L1 to Lumascape's facade lighting family.

Accessories


Control
LS655 0	PowerSync™ Data Injector, Low Voltage 30-48 Vdc, Generation 2 (Required for PS installations only)
LSLED40W-48V	DC Power Supply, 48 V, 40 W
LSLED80W-48V	DC Power Supply, 48 V, 80W
LSLED120W-48V	DC Power Supply, 48 V, 120 W
LSLED240W-48V	DC Power Supply, 48 V, 240 W
LSLED320W-48V	DC Power Supply, 48 V, 320 W
LSLED480W-48V	DC Power Supply, 48 V, 480 W
LSLED600W-48V	DC Power Supply, 48 V, 600 W

Wiring
LS6426-PS	Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-PS	Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6426-ND	Leader Cable, Low Voltage 30-48 Vdc, 3-Core, Non-Dimmable
LS6427-ND	Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, Non-Dimmable
