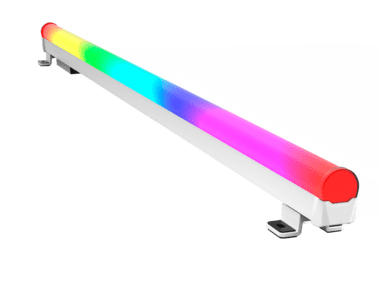

Vestalux V2 - LS9016

A high-performance exterior grade architectural, direct-view outliner.

Product Overview

Designed to perform, designed to excite and designed to last!

The Vestalux V2 is a high-performance direct view linear outliner featuring Lumascape’s proprietary UVShield™ Technology. UVShield prevents discoloring and degradation of the diffuser, through the unique application of a UV reflective barrier to the already UV-stabilized tube.

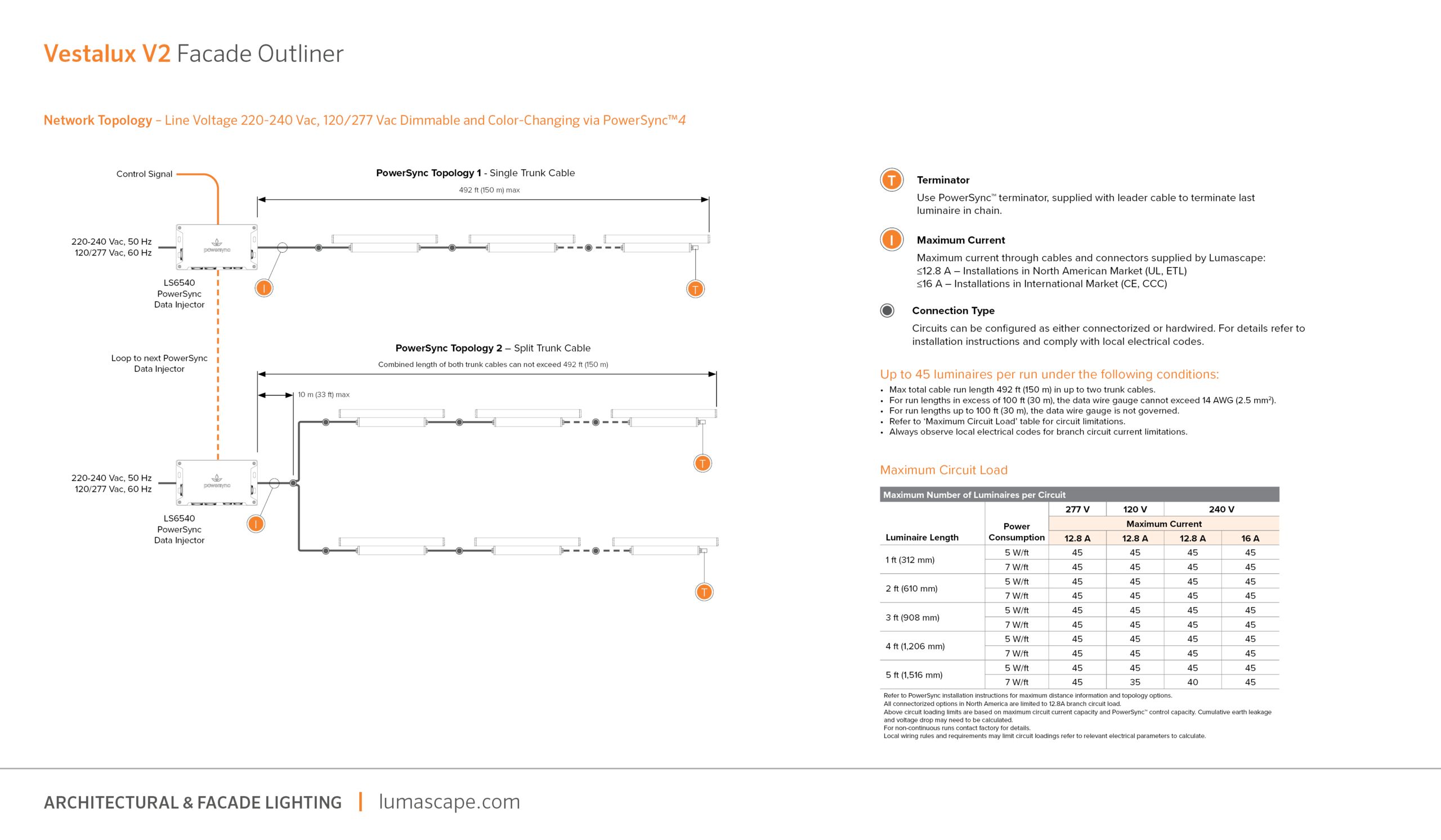

Powered and controlled through Lumascape’s Powersync™4 Technology, up to 225' (69 m) of V2’s can be connected to a single controller and 3 core-leader cable.

Another highlight feature of the V2 is it’s class leading photometric performance. With over 1,200 lm from a 4' RGBW, and almost 2,400 lm from a 4' luminaire in white, the V2 is hard to miss! It is available in a lower, power variant for more subtle applications.

It is also available in 1, 2, 3, 4, and 5 foot lengths, making it easier to fit most linear project requirements.

The Vestalux V2 is perfect for all direct view applications, from subtle single-color outlining and backlighting, to highly dynamic displays of color.

The use of individual discrete LEDs has allowed Lumascape to select mixes of the best mid-power whites and colors available. Choose from a huge range of white color temperatures, or really make your project pop with vibrant saturated colors by selecting our RGBW engine with Royal Blue. For more subtle color choose our RGBA option for stunning pastels, burnt oranges and magnificent mixed whites.

The Vestalux V2 packages technology, incredible control and perfect color blending into a compact and robust direct view package.

With a Vestalux V2 on your project, imagination is the only limit!

Features

Lumen Output 598 lm/ft Power Consumption 5 W/ft, 7 W/ft Typical Lifetime (TM21 Reported) > 72,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 84,678 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage Low Voltage 30-48 Vdc Input Voltage (International) Line Voltage 220-240 Vac, 50 Hz Input Voltage (NA only) Line Voltage 120/277 Vac, 60 Hz Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V PWM Frequency 10 kHz flicker-free dimming to 0.1% IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK10 Compliance ETL - USA & Canada CE RCM FCC Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet

Specifications

Videos

Poduct Highlights | Vestalux V2
An introduction to the Vestalux V2 direct view luminaire from Lumascape.
Webinar | Vestalux V2
Watch our short webinar on the Vestalux V2 Direct View Outliner by Lumascape.

Accessories

Control - Low Voltage 30-48 Vdc
LS6550 PowerSync Data Injector, Low Voltage, Generation 2 (Required for PS installations only)

Power Supplies
LSLED40W-48V DC Power Supply, 48 V, 40 W
LSLED80W-48V DC Power Supply, 48 V, 80W
LSLED120W-48V      DC Power Supply, 48 V, 120 W
LSLED240W-48V DC Power Supply, 48 V, 240 W
LSLED320W-48V DC Power Supply, 48 V, 320 W
LSLED480W-48V DC Power Supply, 48 V, 480 W
LSLED600W-48V DC Power Supply, 48 V, 600 W

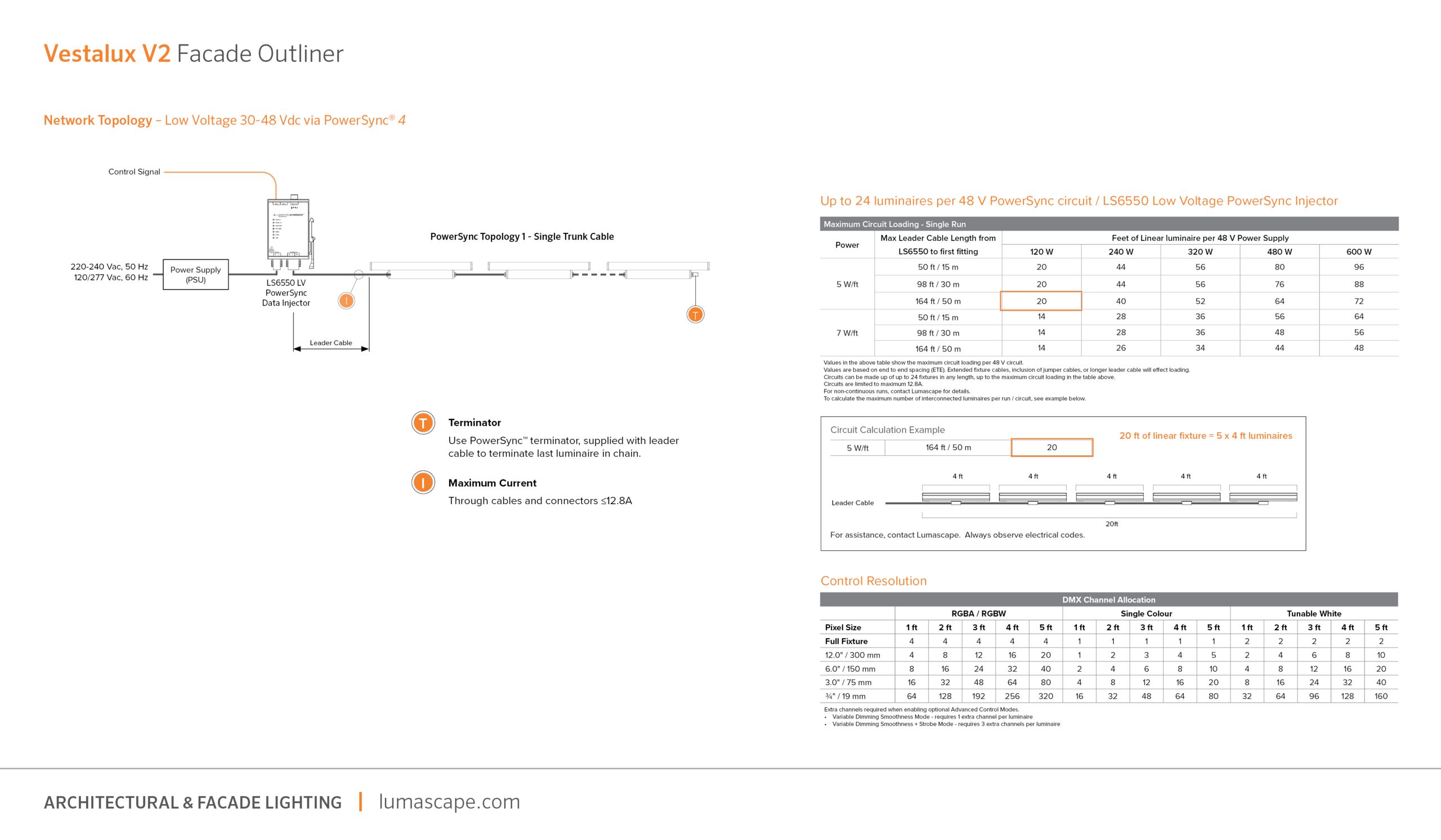

Wiring - Low Voltage 30-48 Vdc
LS6426-PS Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-PS Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6426-ND Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-ND Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync

Control - Line Voltage 120/277 Vac
LS6540 PowerSync Data Injector, Line Voltage, Generation 2 (Required for PS installations only)

Wiring - Line Voltage 120/277 Vac
LS6402U-PS Leader Cable, Line Voltage, 4-Core, PowerSync
LS6404U-PS Jumper Cable, Line Voltage, 4-Core, PowerSync
