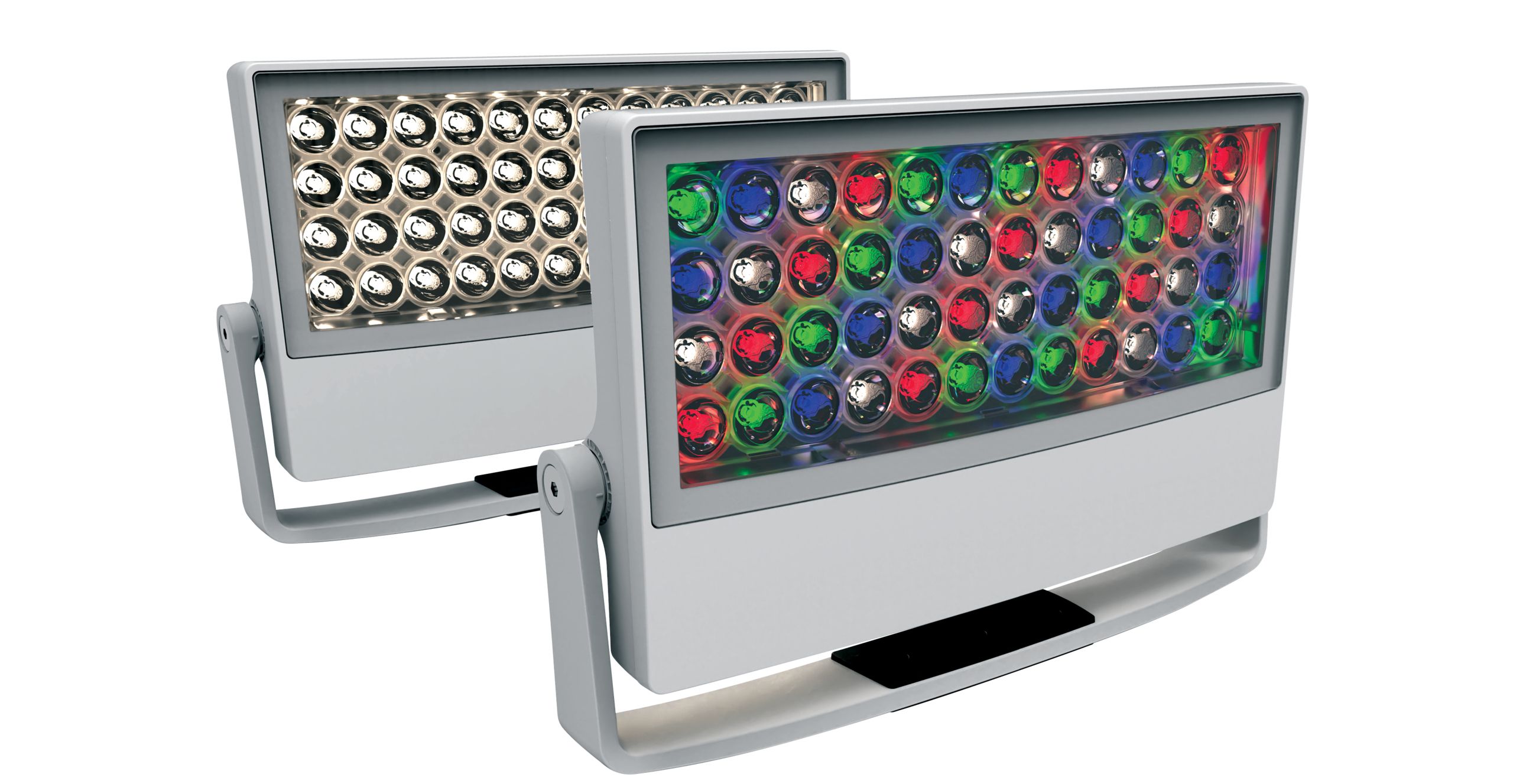

Quadralux Q6 - LS9160

An large, high-powered, architectural-grade spotlight designed to achieve a peak intensity of up to 672,000 Candela.
Configure this product Features Specifications Accessories

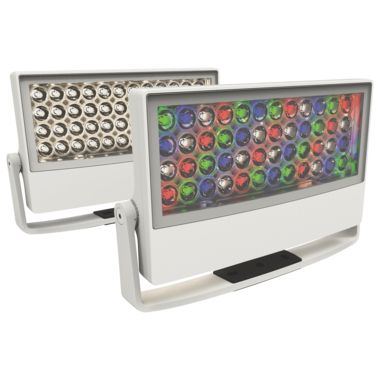

Product Overview

Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Designer optics, provide superb color-over-angle consistency and color blending even at close distances. Available in white, color-changing and tunable white light engines.

Features

Lumen Output 8,280 lm Power Consumption ≤86 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 86,935 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Interface Lumascape PowerSync Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK9 Vibration Resistance 3G Rating (ANSI C136.31) With optional 3G Bracket Compliance ETL - USA & Canada CE UKCA RCM FCC Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet

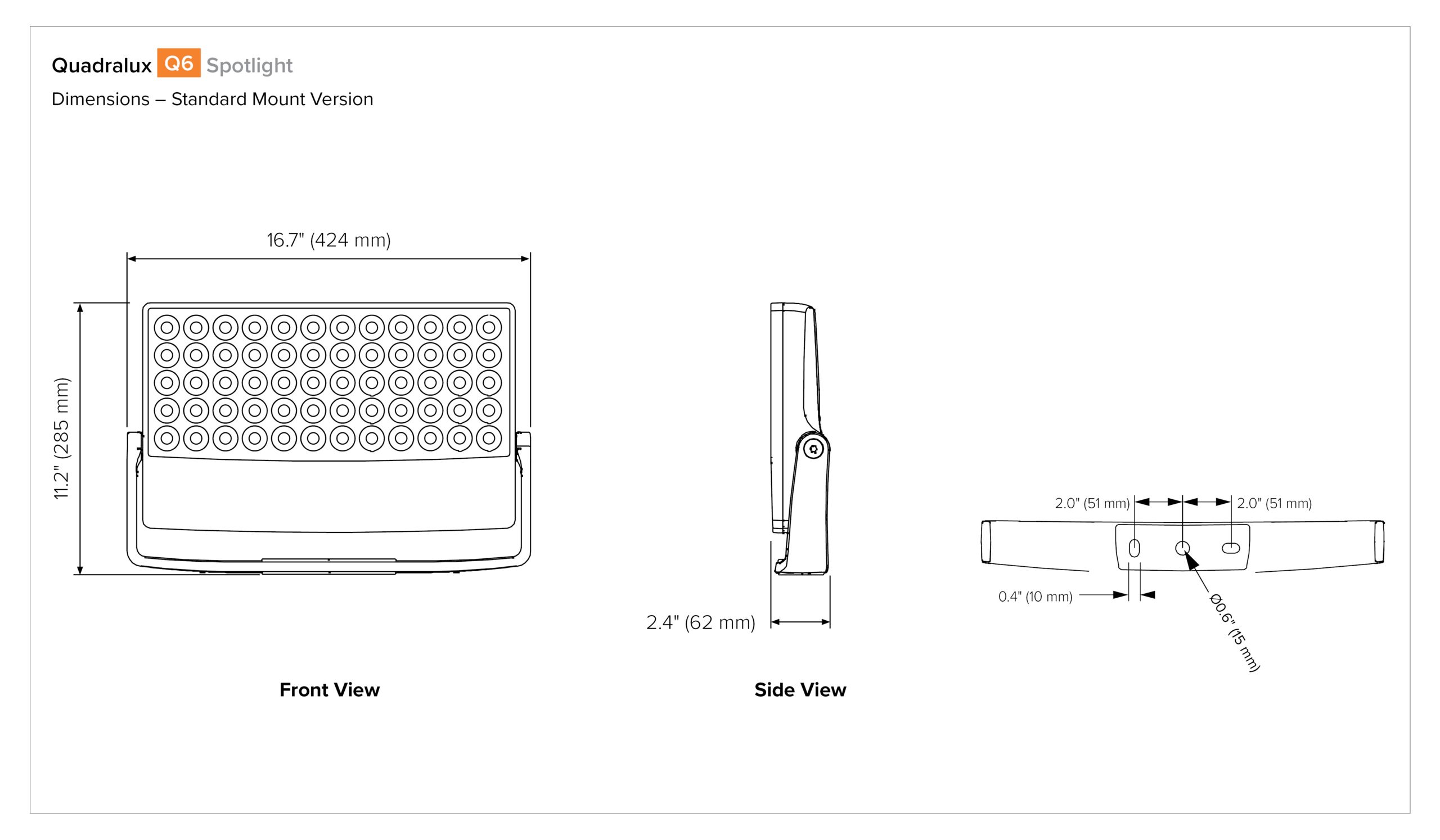

Specifications

Accessories

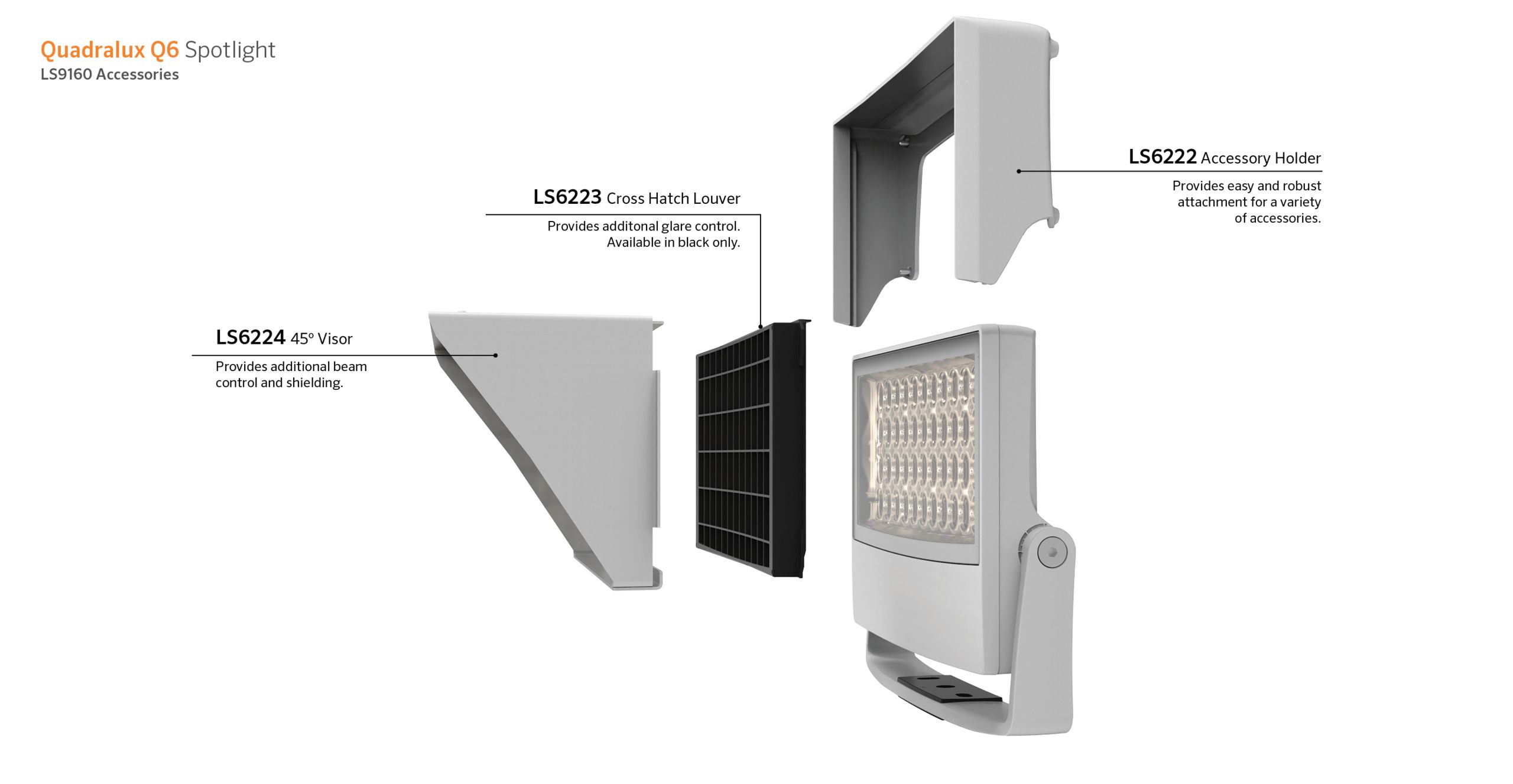

LS6222 Accessory Holder
LS6223 Cross Hatch Louver
LS6224 45° Louver
LS6225 Custom Visor
LS6317 3.0"  (76mm)  Pole Clamp
LS6318 4.0"  (120mm)  Pole Clamp
LS6319 4.5"  (114mm)  Pole Clamp
LS6320 5.0"  (127mm)  Pole Clamp

Downloads

Data Sheet Install Guide
IES Files LS9160 ZIP (1.63 M) DXF Files LS9160 ZIP (420.57 KB) BIM Files LS9160LED ZIP (1.34 M) Product Flyer Q6 & Q8 PDF (166.83 KB) Advertisement LS9160 PDF (767.7 KB)

Technology

Product Configurator

LS9160 _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Quadralux Q6 below

Light Engine

Required

80 W (80D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single Entry (84)

Single Entry (84)

For the connection to the supply circuit via flexible cable. Single entry

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

4.5°

Sharp Narrow (NX)

Sharp Narrow (NX)

5º

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Mounting

Required

Standard Bracket (S)

3G Rated Bracket (G)

Vibration Resistance (ANSI C136.31). Also provides compatibility with Pole Clamp.

Input Voltage

Required

120/277 Vac, 60 Hz (09)

120/277 Vac, 60 Hz (09)

Line Voltage

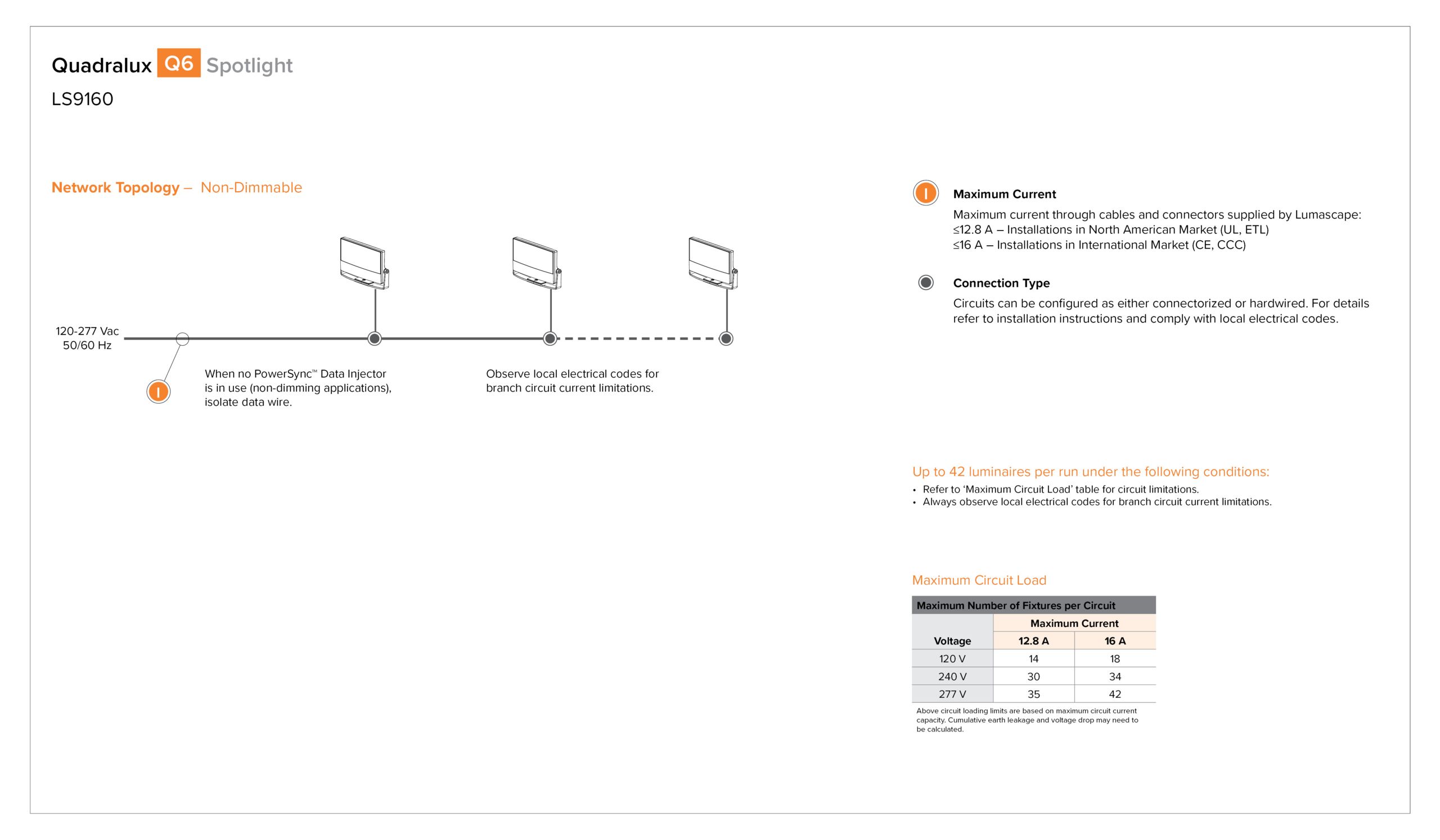

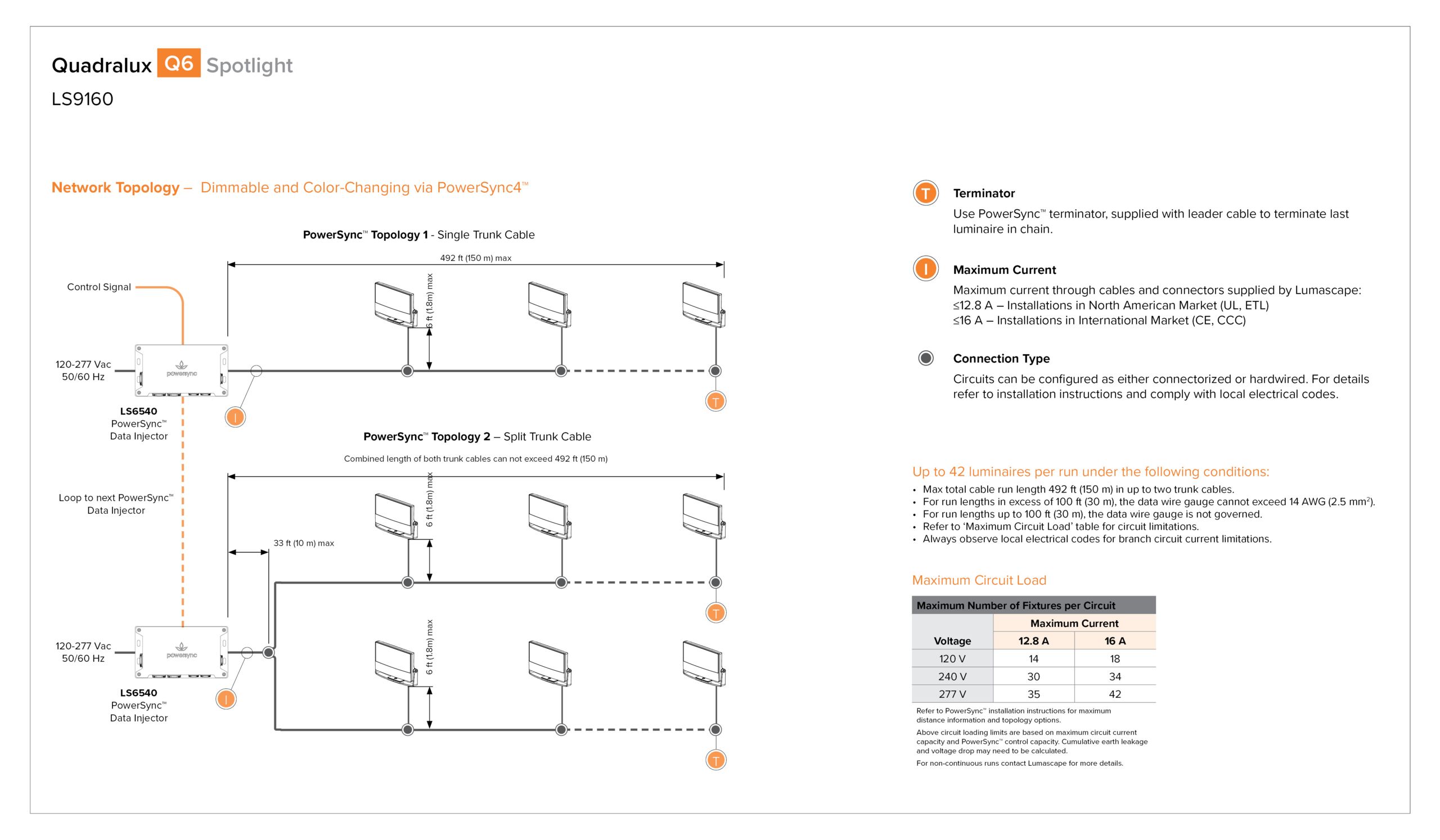

Control

Required

PowerSync™ (PS)

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

6 ft (1.8 m) (006)

Accessories

Controls

Specify Separately

PowerSync™ Data Injector Generation 2

PowerSync™ Data Injector Generation 2 (LS6540)

Integrated power and data to integrate seamlessly with Lumascape's intelligent luminaires.

More info

Wiring

Specify Separately

Leader Cable Line Voltage 14AWG (1.5mm²)

Leader Cable Line Voltage 14AWG (1.5mm²) (LS6402U)

For Connection Type 73 or 77 Only in UL installations.

More info
Jumper Cable Line Voltage 14AWG (1.5mm²)

Jumper Cable Line Voltage 14AWG (1.5mm²) (LS6404U)

For Connection Type 73 or 77 in UL installations

More info

Louvers

Provides additional glare control. Available in black only.

Cross Hatch Louver

Cross Hatch Louver (LS6223)

For shielding and glare control. Accessory Holder (LS6222) is required.

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

Visor Accessory

Visor Accessory (LS6224)

For shielding and glare control. Accessory Holder (LS6222) is required.

More info

Accessory Holder

Order to match luminaire powder coat color.

Accessory Holder

Accessory Holder (LS6222)

Required for the attachment of shielding and glare control accessories.

More info

Mounting & Installation

Provides an easy method of installing the luminaire.

3" Pole Clamp

3" Pole Clamp (LS6317)

Pole clamp mounting accessory 3.0" (76 mm).

More info
4" Pole Clamp

4" Pole Clamp (LS6318)

Pole clamp mounting accessory 4.0" (102 mm)

More info
4.5" Pole Clamp

4.5" Pole Clamp (LS6319)

Pole clamp mounting accessory 4.5" (114 mm).

More info
5" Pole Clamp

5" Pole Clamp (LS6320)

Pole clamp mounting accessory 5.0" (127 mm).

More info

Custom Color

Provides an easy method of installing the luminaire onto a pole, while retaining full aiming and adjustability.

Custom Color Setup Fee

Custom Color Setup Fee (Custom RAL Color)

Custom RAL colour setup fee

More info
