Vedita LED VE1

VE1
LS9401LED

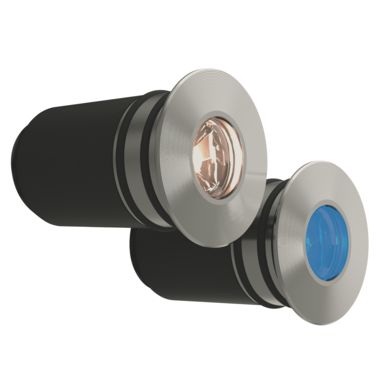

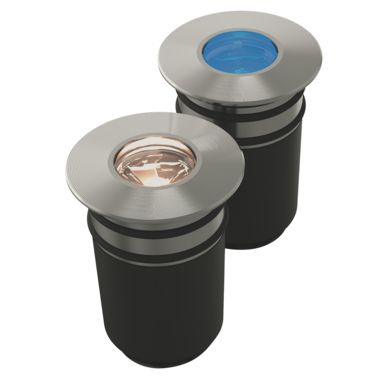

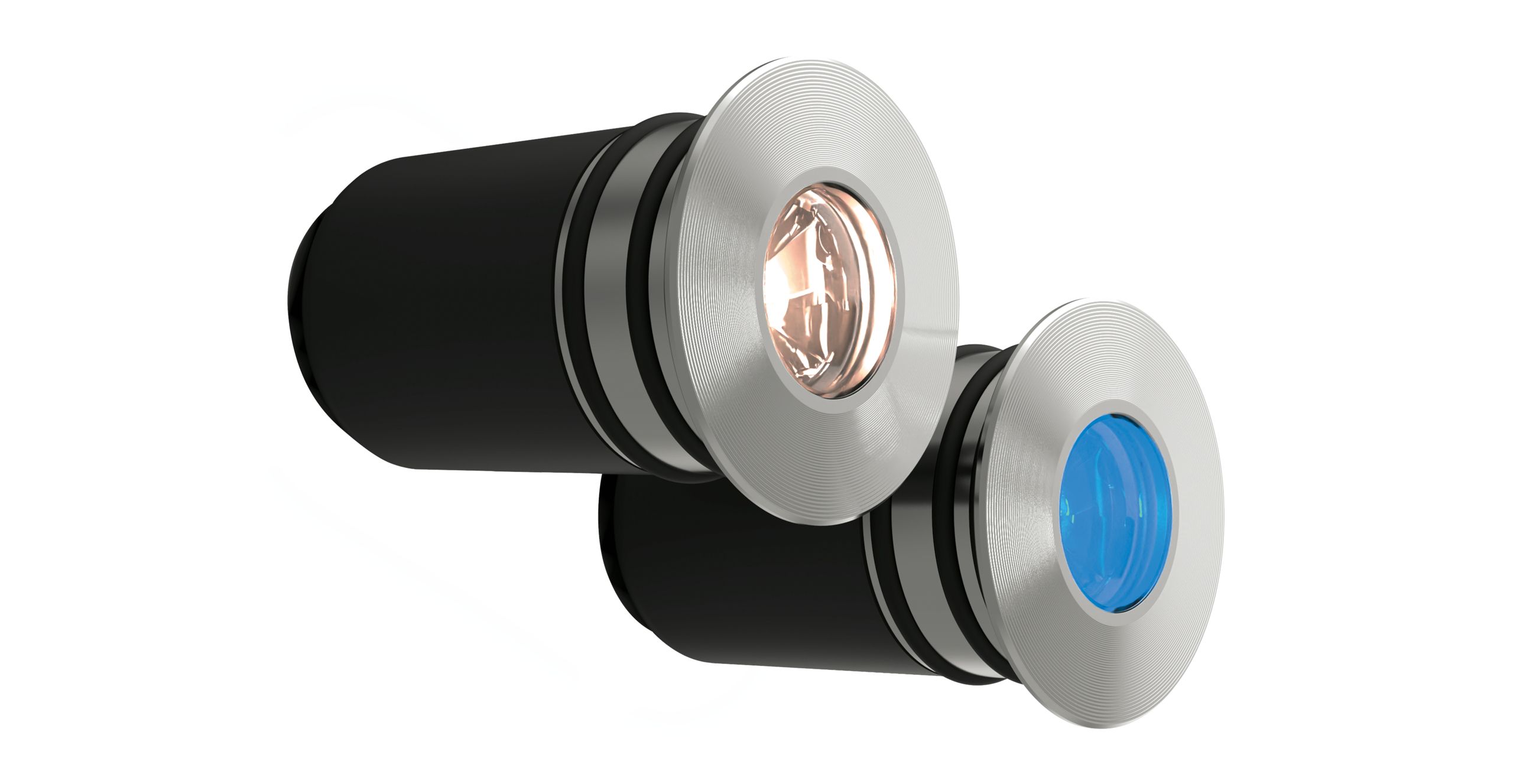

A compact and versatile low-voltage, inground luminaire with pre-installation sleeve
Configure this product

Product Overview

The Inground LS9401LED is very versatile: when high output is required, it can be deployed in its full output 2W configuration; or if a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. This luminaire is supplied with an installation sleeve, which is ideal for landscape installations. Constructed in part from 316 marine grade stainless steel, this luminaire also comes standard with Lumascape proprietary ElectroPolishPlus™ surface treatment.

Specifications

Features

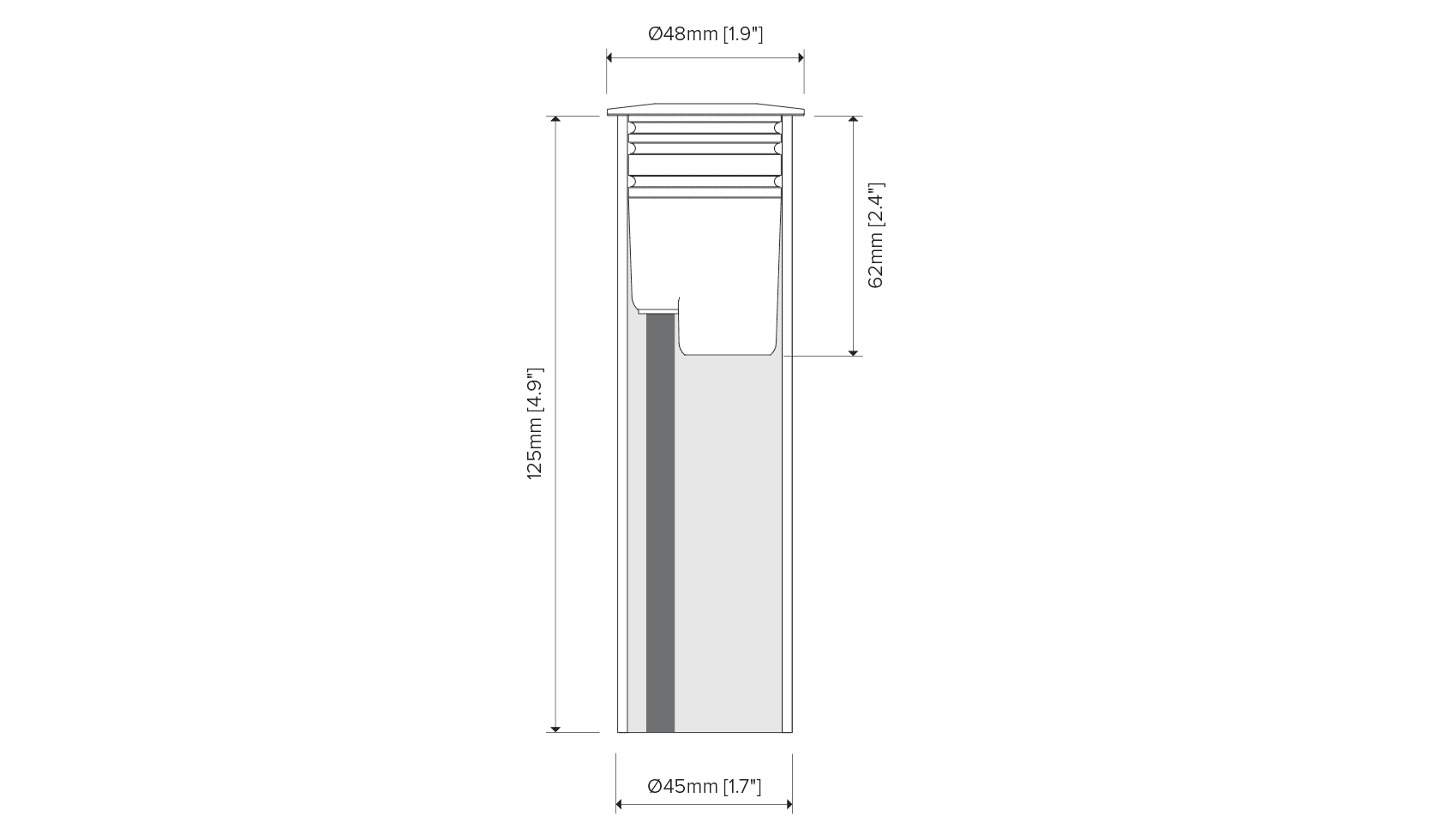

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX, DALI) Diameter 5cm (2") Static Load Rating 450kg (992lb) IP Rating IP68 IK Rating IK10 Compliance ETL - USA & Canada Colour Options Blue Cool White Warm White

Product Configurator

Customise Vedita LED VE1 below

Power Consumption

Required

1W

1W

2W

2W

Light Source

Required

3,000 K (80 CRI)

3,000 K (80 CRI)

Warm White

4,000 K (80 CRI)

4,000 K (80 CRI)

Cool White

470nm

470nm

Blue

Finish

Required

316 Stainless Steel

316 Stainless Steel

Machine Finished

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow

Narrow

14º

Medium

Medium

20º

Wide

Wide

30º

Linear Horizontal

Linear Horizontal

40º x 10º

Flood

Flood

Input Voltage

Required

12-15V 60Hz or 12-24V DC

12-15V 60Hz or 12-24V DC

PWM Dimmable Driver

Tilt

Required

Standard

Wall Wash

Not applicable with Flood (FL) beam

Cable Length

Required

6ft

6ft

Flexible rubber cable

Accessories

Pre-Installation Options

Pre-Install Blockout

Pre-Install Blockout

Power Supplies / Transformers

12W 24V Power Supply

12W 24V Power Supply

12W wet locations power supply with 24V output for use with LS6133 0-10V to PWM converter only.

75W 24V Power Supply

75W 24V Power Supply

75W power supply with 24V output for dimmable applications

96W 24V Power Supply

96W 24V Power Supply

96W power supply with 24V output for dimmable applications

120W Power Supply

120W Power Supply

24V high durability polymeric enclosed power supply for wet locations

240W Power Supply

240W Power Supply

24V high durability polymeric enclosed power supply for wet locations

300W (1x300W)

300W (1x300W)

120V 60Hz, 12-15V 60Hz

320W Power Supply

320W Power Supply

24V high durability polymeric enclosed power supply for harsh environments

Control and Power Supply Unit

Control and Power Supply Unit

Specifically approved for low voltage LED luminaires up to 30V DC. Accepts 0-10V or DMX protocols.

Luminaire Control Protocols

Refer to wiring diagrams for compatability

0-10V to PWM Translator

0-10V to PWM Translator

Translate standard 0-10V to PWM control signals

DMX to PWM Translator

DMX to PWM Translator

Translate standard DMX-512 to PWM control signals
