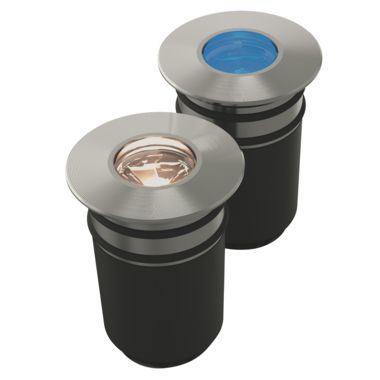

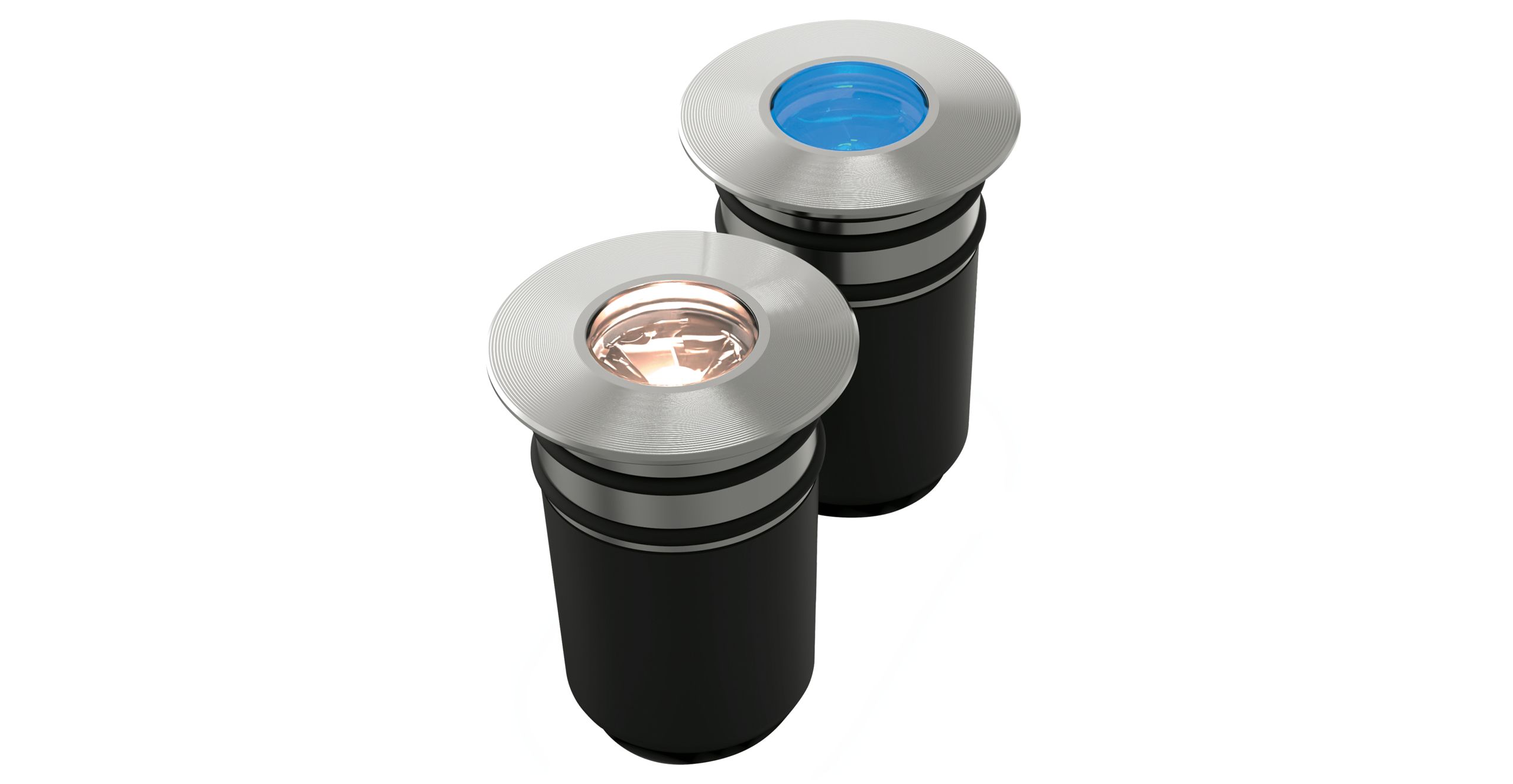

Vedita LED VE3

VE3
LS9403LED

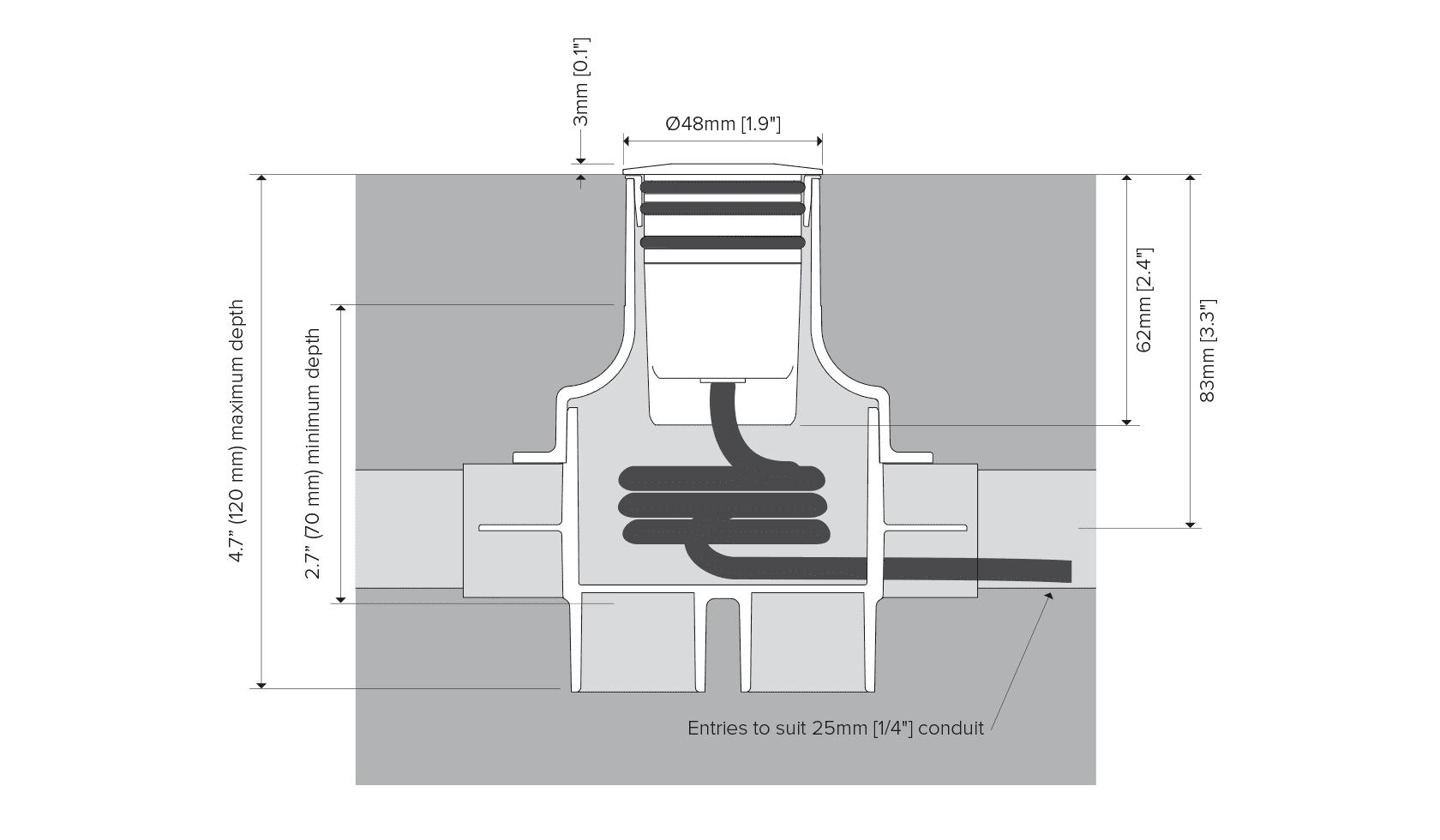

A compact and versatile low-voltage inground luminaire with pre-installation niche
Configure this product

Product Overview

The LS9403LED Vedita is very versatile inground luminaire: when high output is required, it can be deployed in its full output 2W configuration; if a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. This luminaire also comes with a pre-installation sleeve, ideal for pathways, pedestrian malls and other outdoor applications. Constructed in part from 316 marine grade stainless steel, this luminaire also comes standard with Lumascape proprietary ElectroPolishPlus™ surface treatment.

Specifications

Features

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX, DALI) Diameter 5cm (2") Static Load Rating 450kg (992lb) IP Rating IP68 IK Rating IK10 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White

Product Configurator

Customise Vedita LED VE3 below

Power Consumption

Required

1W

1W

2W

2W

Light Source

Required

3,000 K (80 CRI)

3,000 K (80 CRI)

Warm White

4,000 K (80 CRI)

4,000 K (80 CRI)

Cool White

470nm

470nm

Blue

Finish

Required

316 Stainless Steel

316 Stainless Steel

Machine Finished

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow

Narrow

14º

Medium

Medium

20º

Wide

Wide

30º

Linear Horizontal

Linear Horizontal

10º x 40º

Flood

Flood

Input Voltage

Required

12-15V 60Hz or 12-24V DC

12-15V 60Hz or 12-24V DC

PWM Dimmable Driver

Tilt

Required

Standard

Wall Wash

Not applicable with Flood (FL) beam

Cable Length

Required

6ft

6ft

Flexible rubber cable

Accessories

Pre-Installation Options

Pre-Install Blockout

Pre-Install Blockout

Power Supplies / Transformers

96W 24V Power Supply

96W 24V Power Supply

96W, 24V output

12W 24V Power Supply

12W 24V Power Supply

12W wet locations power supply with 24V output for use with LS6133 0-10V to PWM converter only.

Control Translator

Refer to wiring diagrams for compatability

DMX to PWM Translator

DMX to PWM Translator

Translate standard DMX-512 to PWM control signals

0-10V to PWM Translator

0-10V to PWM Translator

Translate standard 0-10V to PWM control signals
