Vedita LED VE6

VE6
LS9406LED

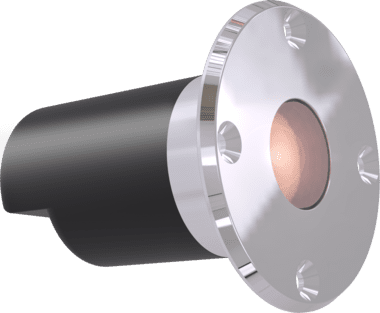

A compact and versatile low-voltage wall mount luminaire with large flange
Configure this product

Product Overview

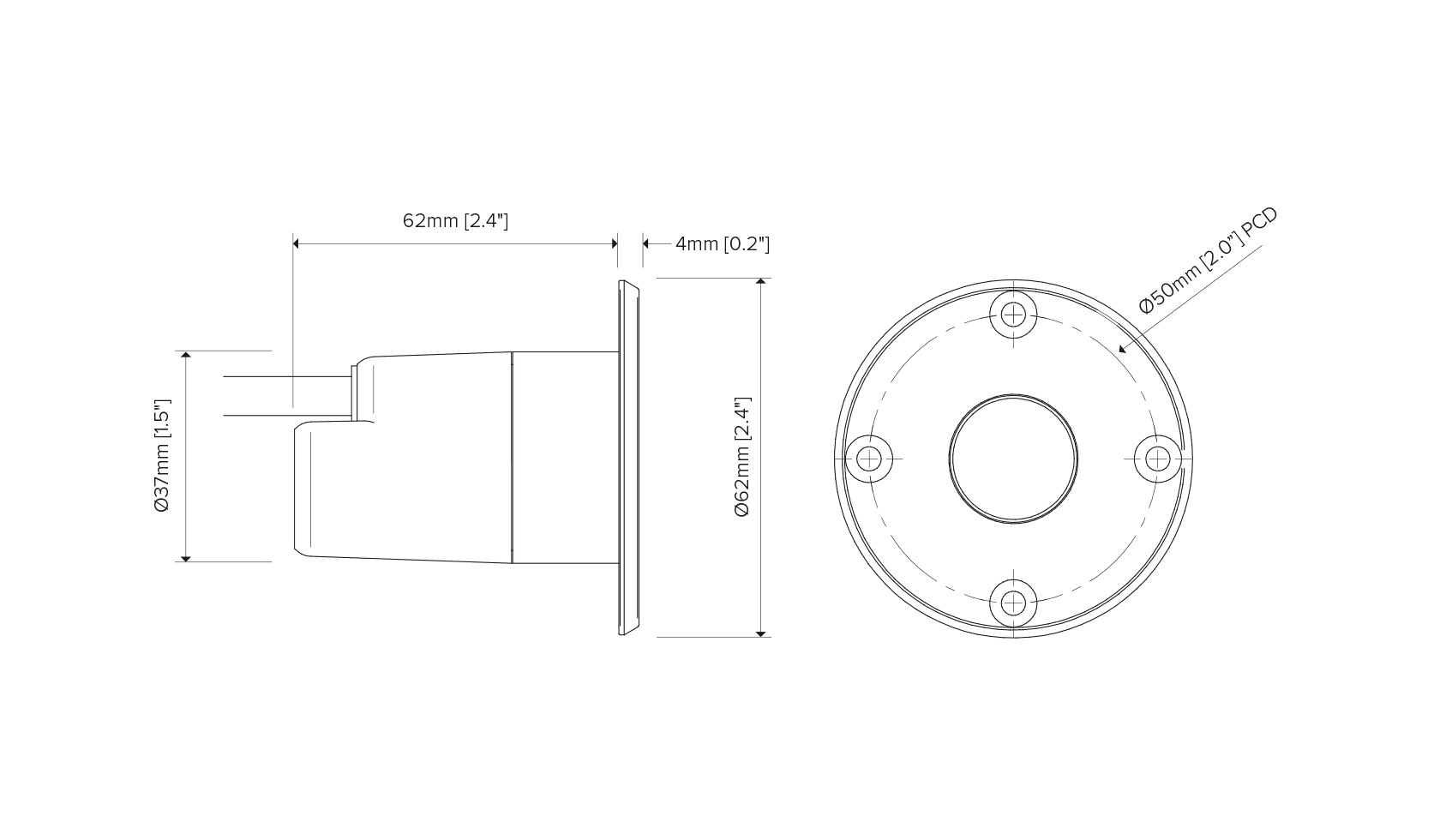

The Wall Mount LS9406LED Vedita is designed with a large flange and countersunk screw holes to secure the luminaire to any hard surface. Several beam angles are available, ranging from narrow to wide. Also, an asymmetric wall wash lens option and flood/marker optics are available. Constructed in part from 316 marine grade stainless steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlus™ surface treatment as standard.

Specifications

Features

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP68 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White

Product Configurator

Customise Vedita LED VE6 below

Power Consumption

Required

1W

1W

2W

2W

Light Source

Required

3,000 K (80 CRI)

3,000 K (80 CRI)

Warm White

4,000 K (80 CRI)

4,000 K (80 CRI)

Cool White

470nm

470nm

Blue

Finish

Required

316 Stainless Steel

316 Stainless Steel

Machine Finished

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow

Narrow

11°

Medium

Medium

20º

Wide

Wide

30º

Linear Horizontal

Linear Horizontal

40º x 10º

Flood

Flood

Input Voltage

Required

12-15V 60Hz or 12-24V DC

12-15V 60Hz or 12-24V DC

PWM Dimmable Driver

Tilt

Required

Standard

Wall Wash

Not applicable with Flood (FL) beam

Cable Length

Required

6ft

6ft

Flexible rubber cable

Accessories

Power Supplies / Transformers

12W 24V Power Supply

12W 24V Power Supply

12W wet locations power supply with 24V output for use with LS6133 0-10V to PWM converter only.

96W 24V Power Supply

96W 24V Power Supply

96W power supply with 24V output for dimmable applications

Luminaire Control Protocols

Refer to wiring diagrams for compatability

0-10V to PWM Translator

0-10V to PWM Translator

Translate standard 0-10V to PWM control signals

DMX to PWM Translator

DMX to PWM Translator

Translate standard DMX-512 to PWM control signals
