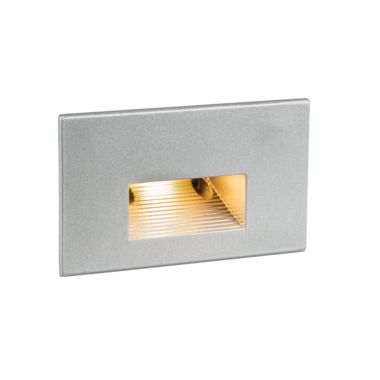

rStep-8 - rSTP8

A versatile recessed wall luminaire.

Product Overview

The rStep-8 is a versatile recessed wall-mount luminaire and is available with four style options to maximize design flexibility in a range of applications. A zoning/dimming version is also available for use with ZDClink® Controllers.

Features

Total Lumens 86 lm Power Consumption 2.2 W | 4.4 W | 7.2 W Input Voltage White: 10-15 Vac/dc, 50/60 Hz | ZDC: 11-15 Vac/dc, 50/60 Hz Installation Requirements Recessed Installation Only Typical Lifetime White: 72,000 hrs | RGBW: 55,000 hrs Weight 1.0 lb (0.5 kg) Compliance UL - USA & Canada UL-NOM RoHS Color Options Warm White RGBW Quickship Quickship Available Data Sheet

Specifications

Videos

Product Highlights | Wall Lights
Introducing the Essential Series range of wall lights from Lumascape.
Webinar | Essential Series
Watch our short webinar introducing the Essential Series by Lumascape.

Product Configurator

Customise rStep-8 below

Input Voltage

12 Vac/Vdc

Control

Required

Standard (-)

1) On/Off, 2) Phase-cut Dimming, or 3) Zone with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim (ZD)

Zone/Dim with Luxor® Technology using the ZDClink Lighting Controller.

Zone/Dim/Color (ZDC)

Zone/Dim/Color with Luxor® Technology using the ZDClink Lighting Controller.

Output

Required

2.2 W (1LED)

48 lm

4.4 W (3LED)

86 lm

4.4 W

86 lm, for ZD control

7.2 W

For ZDC control

Light Source

Required

Static White (K27)

Static White (K27)

2,700 K (80+ CRI)

RGBW

RGBW

For ZDC control

Style

Required

Recessed Baffle (RB)

Finish

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray powder-coat finish

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories
