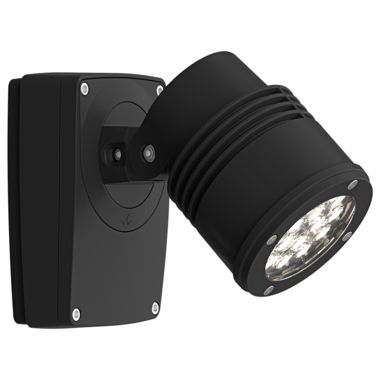

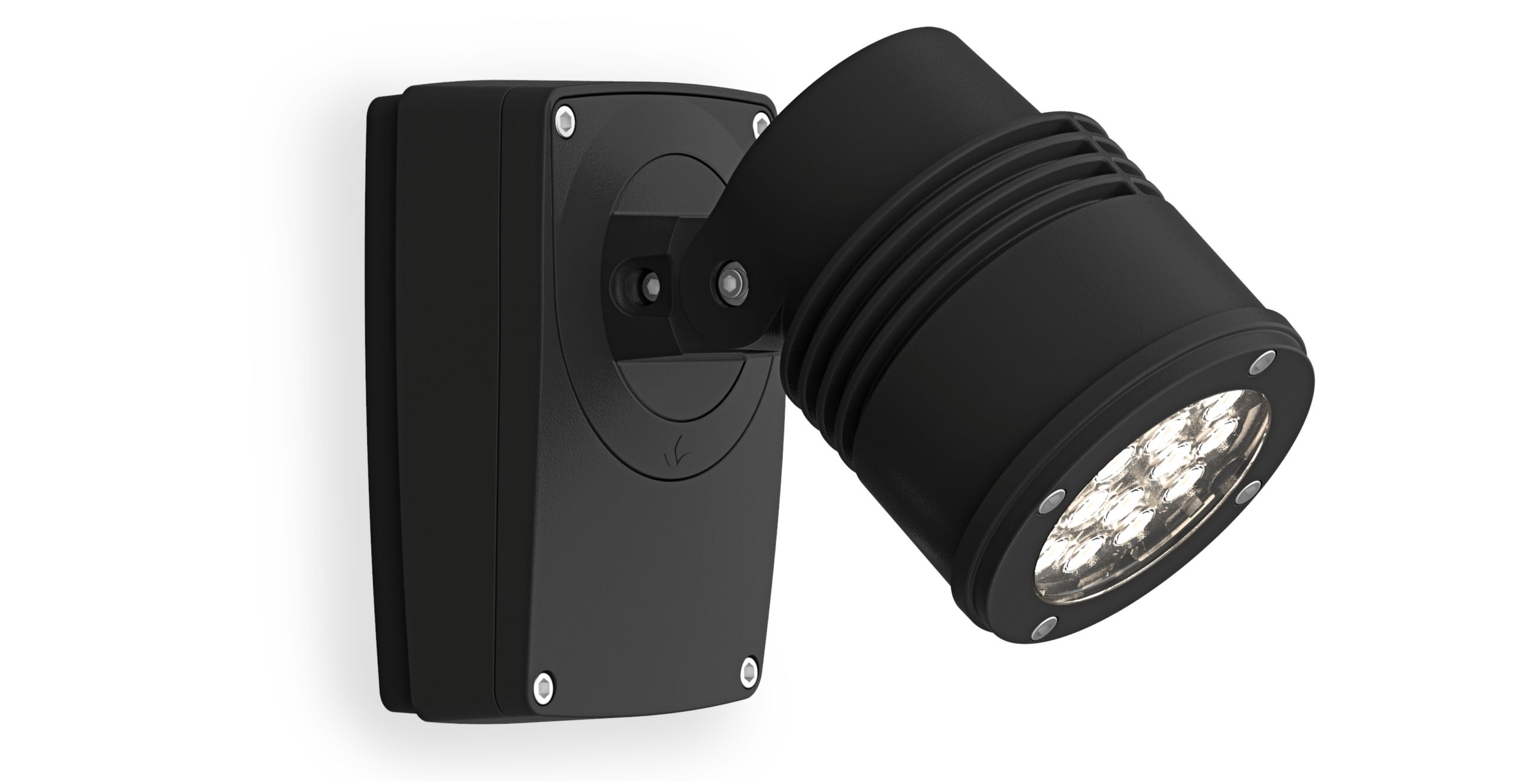

Centria C4 Foundation

Centria C4 Foundation - LS1012

A compact and versatile surface mount luminaire with remote driver.

Configure this product Features Specifications Videos Accessories

Product Overview

The most compact and versatile, remote driver surface mounted luminaire in its class, featuring a light output and energy efficiency surpassing 35 W Metal Halide. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations including two axes of adjustment making it ideal for direct or indirect applications. Available with integrated 0-10 V dimming or as non-dimmable.

Features

Lumen Output 2,450 lm Power Consumption 24 W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK7 Compliance

Color Options Warm White

Warm White

Cool White

Data Sheet

Specifications

Videos

Webinar | Foundation Family

Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


LS6104	External Glare Shield

Downloads

Data Sheet Install Guide

DXF Files LS1012 ZIP (375.47 KB) IES Files LS1012 ZIP (50.96 KB) Product Flyer C1, C2 & C4 PDF (131.13 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS1012 _ _ _ _ _ _

Login to view pricing

Reset to Default Clear Selected Add

Customise Centria C4 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

24 W (24D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

26°

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

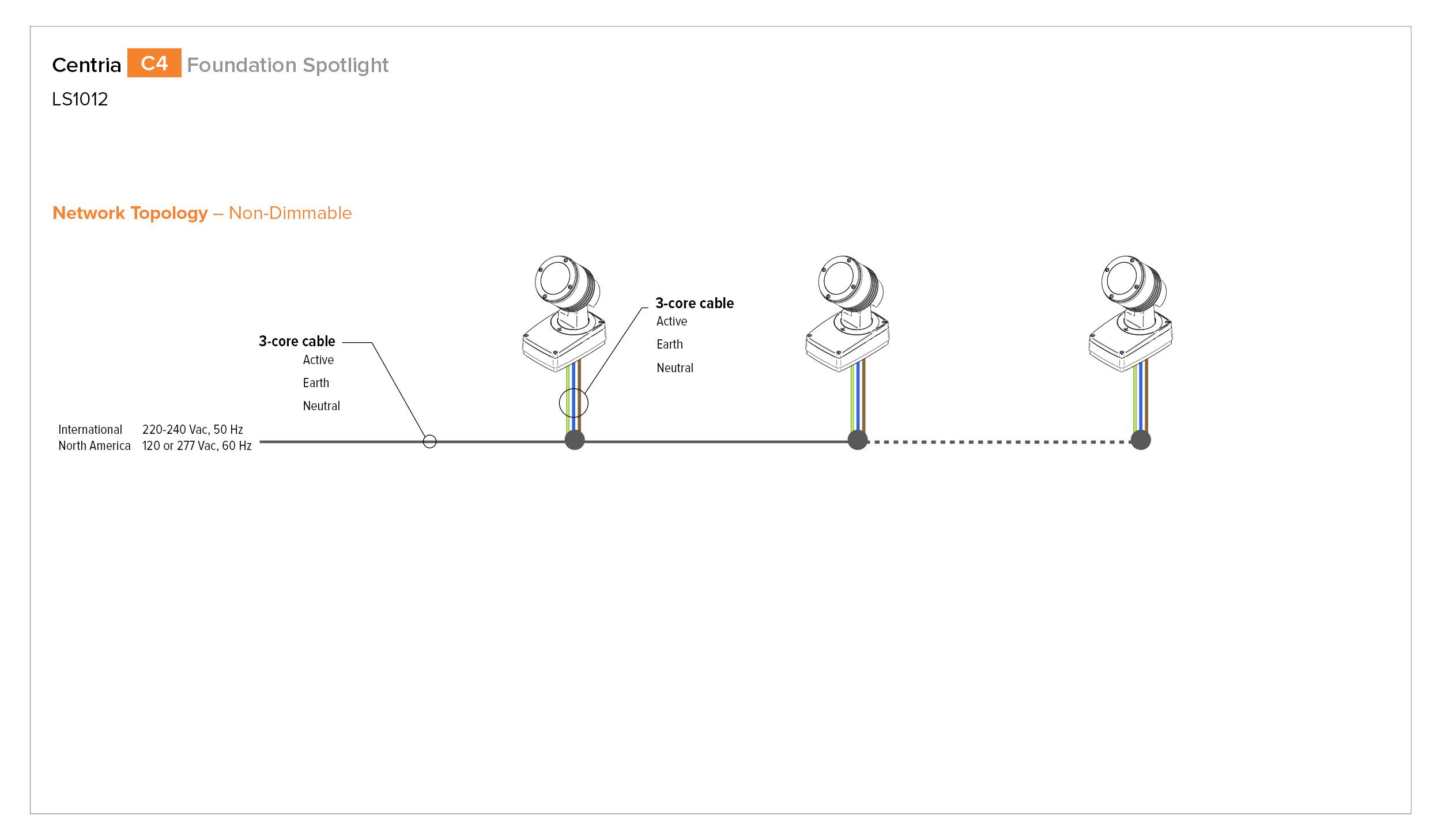

Non-Dimmable (ND)

For single color, non-dimming applications only.

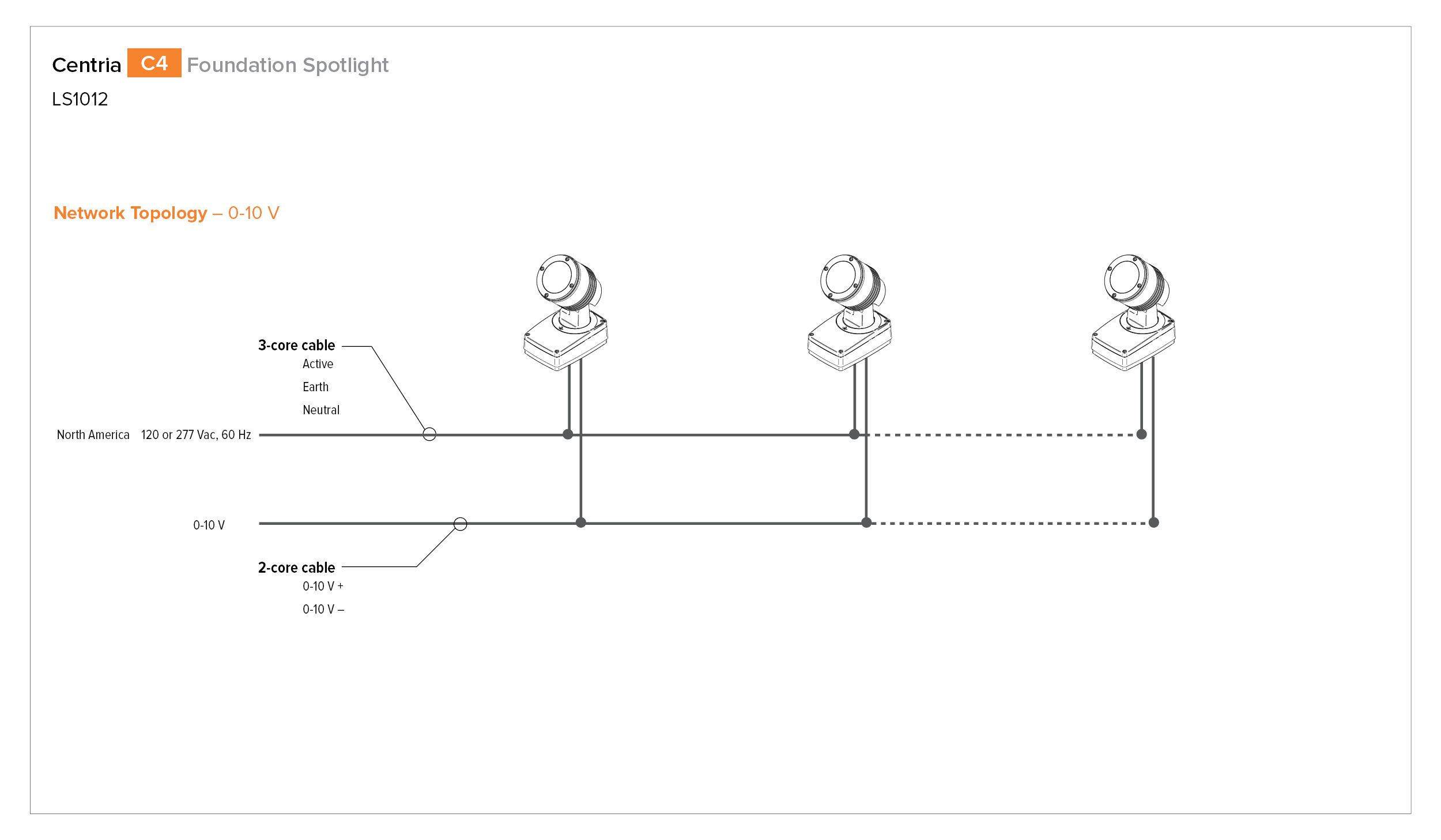

0-10 V (AH)

For single color dimming applications via 0-10 V.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info

Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info

Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info

Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info

White (WT)

RAL9016 from RAL Classic collection

More info

Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info

Latte (LT)

RAL7006 from RAL Classic collection

More info

Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info

Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
