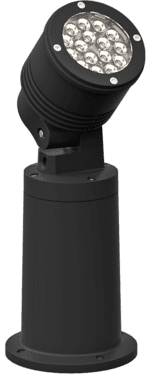

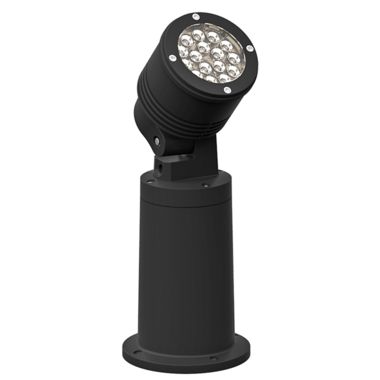

Centria C2 Foundation - LS2022

A compact and versatile surface mount spotlight.

Product Overview

The most compact and versatile, remote driver surface mounted luminaire in its class, featuring a light output and energy efficiency surpassing 35 W Metal Halide. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. The height of the luminaire allows the light head to stand above vegetation for an unobstructed cast of light. Available with integrated 0-10 V dimming or as non-dimmable.

Features

Lumen Output 2,450 lm Power Consumption 24 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 40°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 40°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK7 Compliance ETL - USA & Canada CE RCM Color Options Warm White Cool White Data Sheet

Specifications

Videos

Webinar | Foundation Family
Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


LS6104 Glare Shield

Product Configurator

Customise Centria C2 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

24 W (24D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

120/277 Vac, 60 Hz (09)

120/277 Vac, 60 Hz (09)

Line Voltage

Control

Required

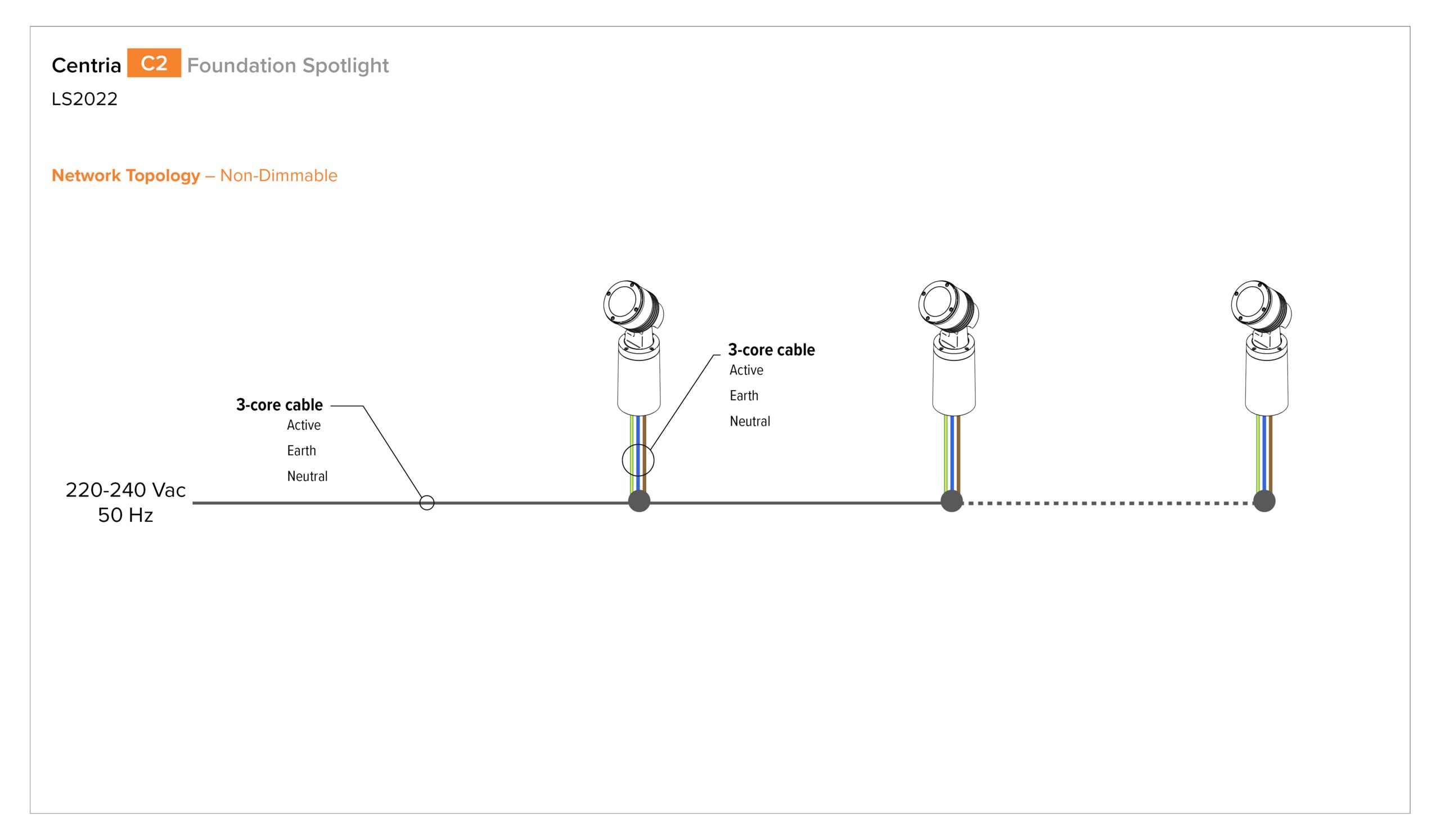

Non-Dimmable (ND)

For single color, non-dimming applications only.

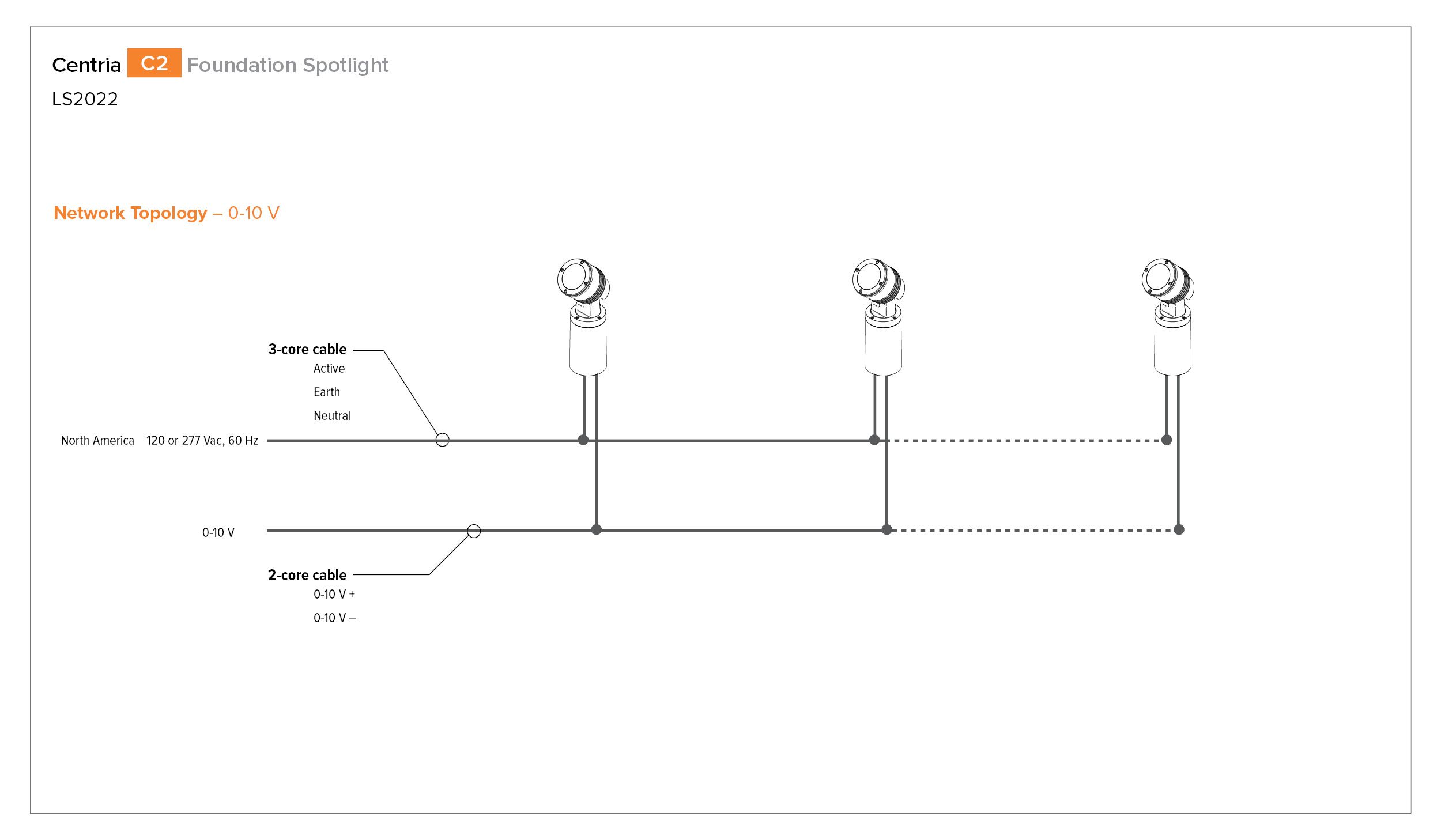

0-10 V (AH)

For single color dimming applications via 0-10 V.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
