Centria C1 Foundation

Centria C1 Foundation - LS2012

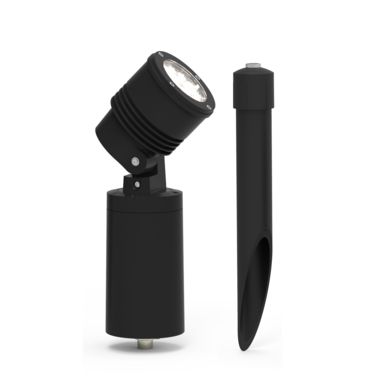

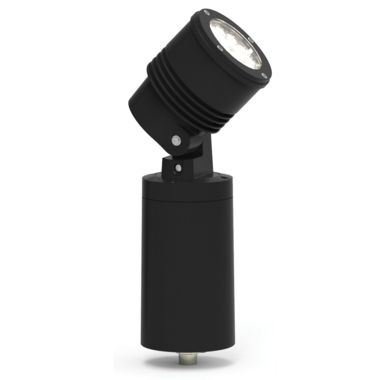

A compact and versatile stake mount spotlight

Configure this product Features Specifications Videos Accessories

Product Overview

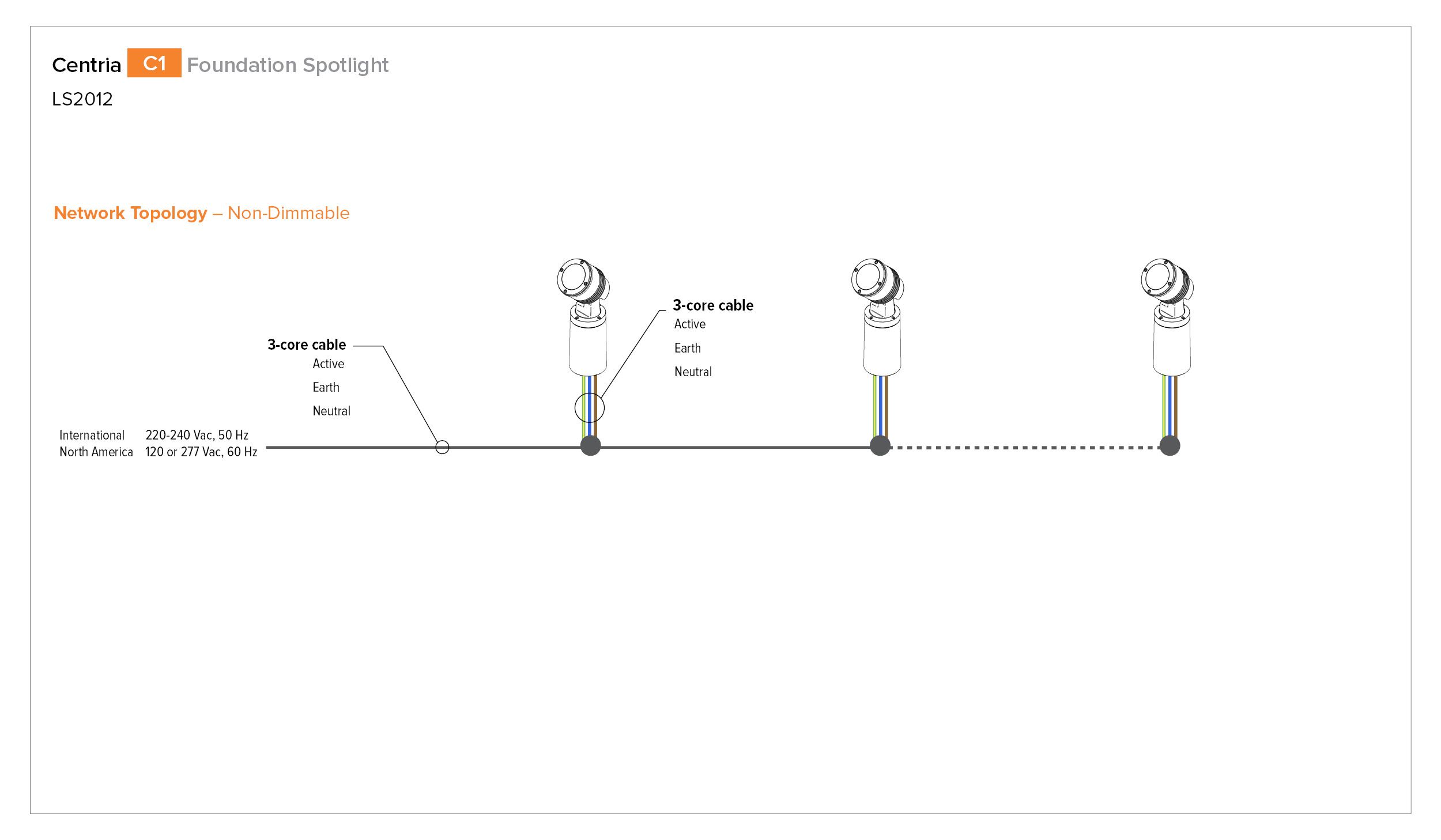

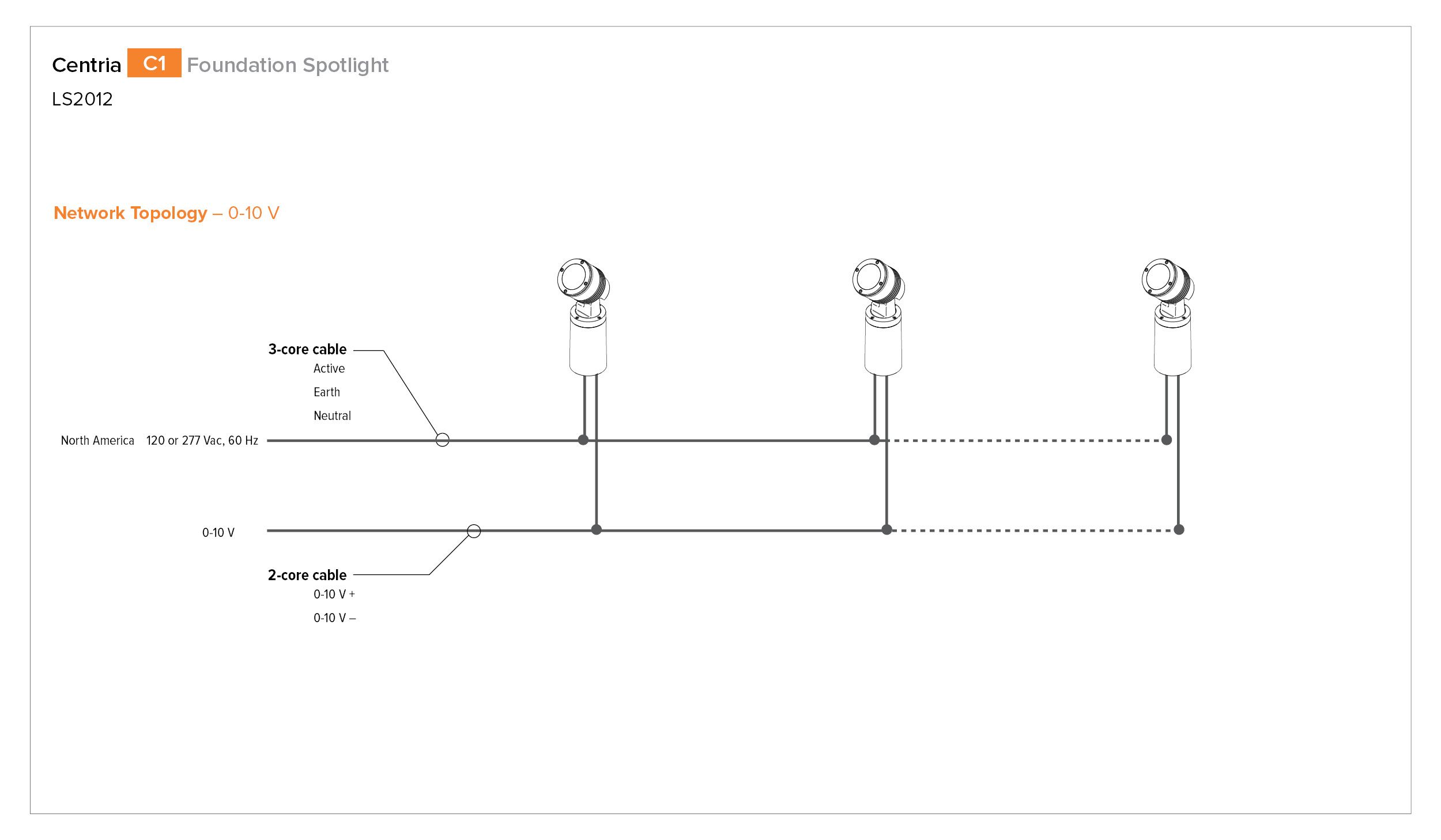

The most compact and versatile, remote driver surface mounted luminaire in its class, featuring a light output and energy efficiency surpassing 35 W Metal Halide. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Unique, flexible mounting and glare control accessories enable installation in multiple orientations. Available with a concrete anchor, the height of the luminaire allows the light head to stand above vegetation for an unobstructed cast of light. Available with integrated 0-10 V dimming or as non-dimmable.

Features

Lumen Output 2,450 lm Power Consumption 24 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 40°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 40°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | 120/277 Vac, 60 Hz (North America) IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK7 Compliance

Color Options Warm White

Data Sheet

Specifications

Videos

Webinar | Foundation Family

Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


LS6104	External Glare Shield
LS6054	Ground Stake

Downloads

Data Sheet Install Guide

DXF Files LS2012 ZIP (362.68 KB) IES Files LS2012 ZIP (734.86 KB) Product Flyer C1, C2 & C4 PDF (131.13 KB) Product Brochure Foundation Family PDF (569.09 KB)
