Cassia LED CA1

CA1
LS121LED
A compact and versatile bi-directional wall grazer
Configure this product

Product Overview

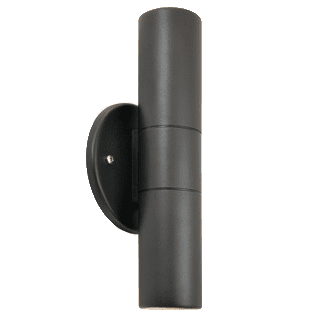

The LS121LED Cassia is a compact, fixed position, direct/indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from either copper or powder-coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

THIS LUMINAIRE IS ONLY AVAILABLE IN NORTH AMERICA

Features

Lumen Output 2 x 403lm Power Consumption 12W Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Cassia LED CA1 below

Power Consumption

Required

12W

12W

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14º

Narrow Medium (NM)

Narrow Medium (NM)

25 ̊

Medium (ME)

Medium (ME)

30 ̊

Wide (WD)

Wide (WD)

40º

Input Voltage

Required

12-15V, 60Hz or 12-24V DC (23)

12-15V, 60Hz or 12-24V DC (23)

PWM Dimmable Driver

Finish

Required

Black (BL)

Black (BL)

Black powdercoat on Stainless Steel

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powdercoat on Stainless Steel

Polished Copper (CU)

Polished Copper (CU)

Accessories

Power Supplies / Transformers

Power Supply 15V 20W (LSLED-15V20W277)

Power Supply 15V 20W (LSLED-15V20W277)

20W power supply with 15V DC output for non-dimmable applications
