Via LED VI1

VI1
LS553LED
A compact and versatile side-emitting marker light
Configure this product

Product Overview

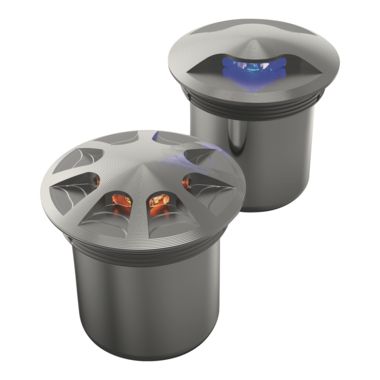

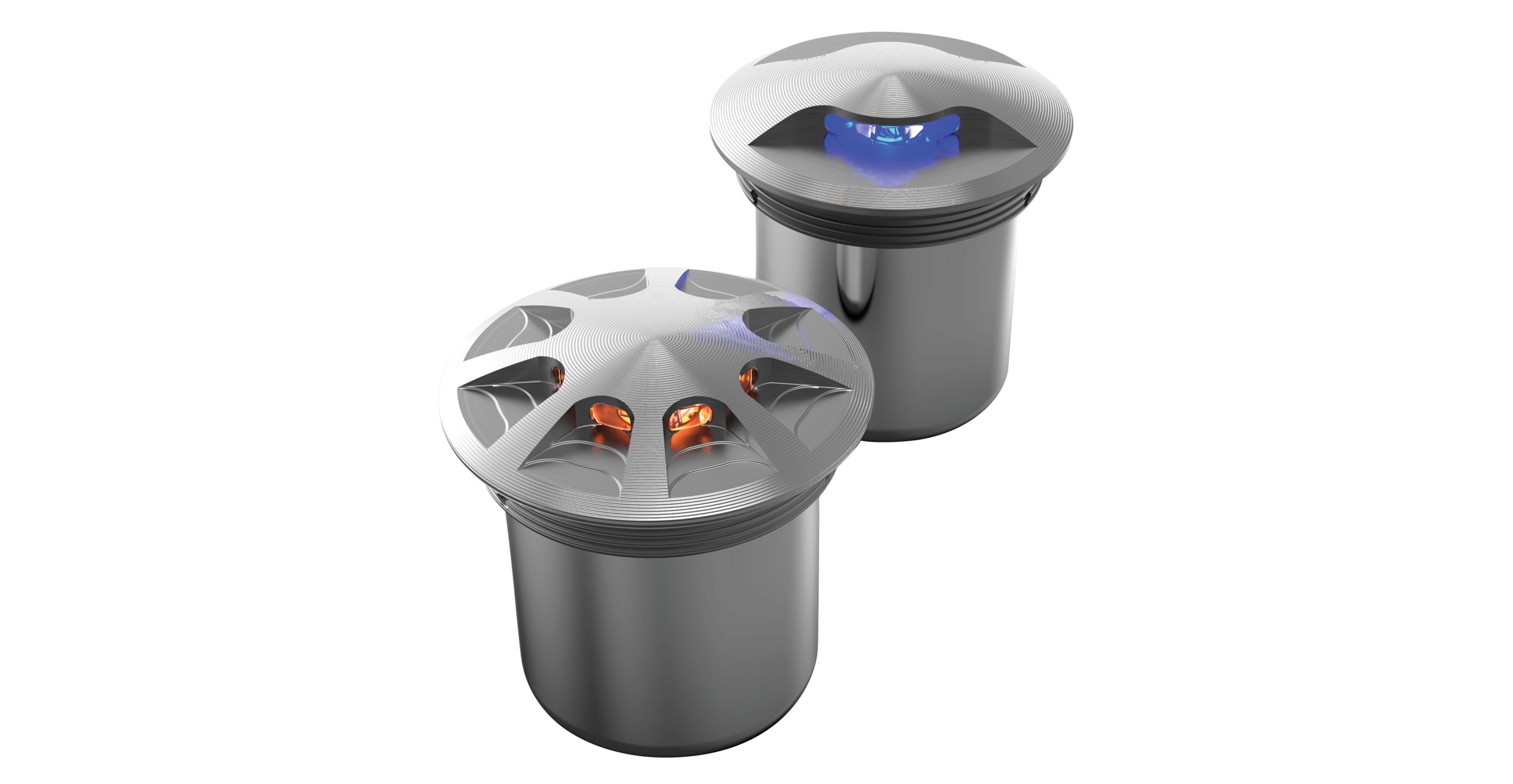

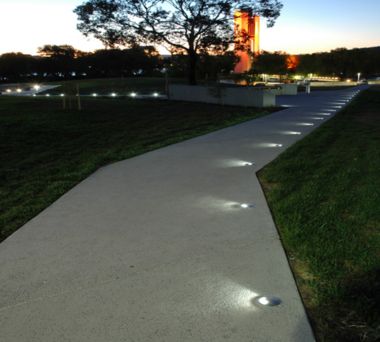

The LS553LED Via is a rugged, side-emitting marker light constructed of 316 marine grade stainless steel. This luminaire is ideal for pathways, pedestrian malls and other public spaces. Some models are also suitable for use in low-speed traffic areas. The construction and technology used in this luminaire ensures a long service life.

Specifications

Features

Power Consumption 2W Control Protocol PWM (0-10V, DMX) Static Load Rating 1,000kg (2,200lb) Diameter 90mm (3.7") IP Rating IP68 IK Rating IK10 for 8 aperture model Compliance ETL - USA & Canada Colour Options BIM Blue Red Orange Cool White Warm White

Product Configurator

Customise Via LED VI1 below

Installation Type

Select the installation type you require.

Required

Direct Burial

Direct Burial

Pre-Installation

Pre-Installation

Light Engine

Required

1W (1)

1W (1)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Turtle Friendly

Select for special applications requiring 620nm light engine.

Required

620nm (RO)

620nm (RO)

Red / Orange (620nm) light engine for turtle friendly applications.

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

Black (BL)

Black (BL)

Black powder coat

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powder coat

White (WT)

White (WT)

White powder coat

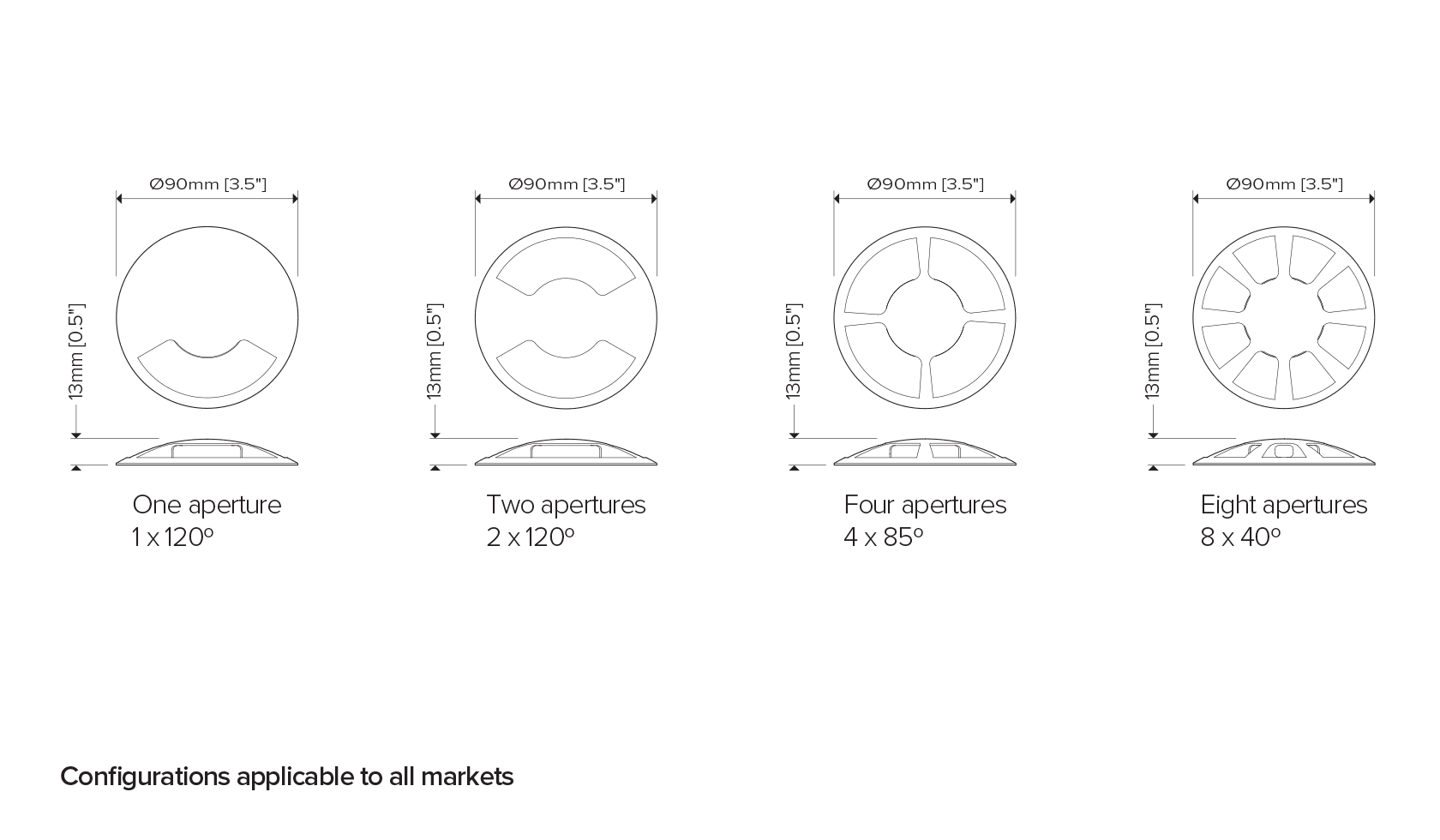

Apertures

Required

One (01)

One (01)

One aperture (1 x 120°)

Two (02)

Two (02)

Two aperture (2 x 120°)

Four (04)

Four (04)

Four aperture (4 x 85°)

Eight (08)

Eight (08)

Eight aperture (8 x 40°)

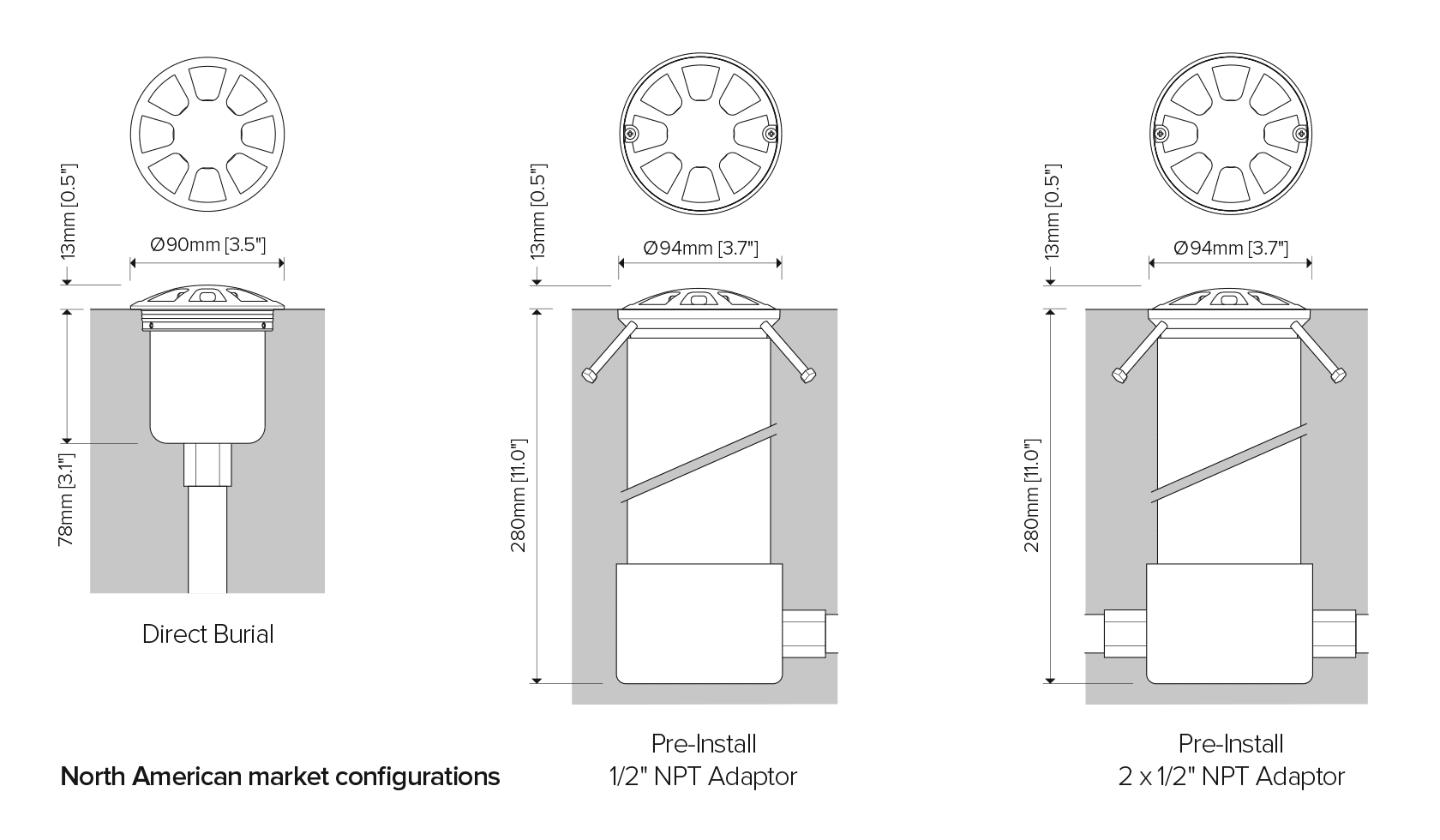

Installation Type

Required

Pre-installation (23)

More info

Direct Burial (21)

More info

Input Voltage

Required

120-277V, 50/60Hz (09)

120-277V, 50/60Hz (09)

Mains Voltage

12V 60Hz or 12-24V DC (13)

12V 60Hz or 12-24V DC (13)

12-15V, 60Hz or 12-24V DC (23)

12-15V, 60Hz or 12-24V DC (23)

PWM Dimmable Driver

Accessories

Pre-Installation Options

Pre-Install Blockout (LS698-K-82-1)

Pre-Install Blockout (LS698-K-82-1)

Includes 1 x 1/2" conduit entry for end of line wiring only. Luminaire comes with 1ft (0.3m) hook-up wire. Price inclusive with Pre-Installation Blockout luminaire.

Pre-Install Blockout (LS698-K-82-2)

Pre-Install Blockout (LS698-K-82-2)

Includes 2 x 1/2" conduit entry for end of line wiring only. Luminaire comes with 1ft (0.3m) hook-up wire. Price inclusive with Pre-Installation Blockout luminaire.
