Vedi LED VD1

VD1
LS563LED
A compact and versatile inground marker light
Configure this product

Product Overview

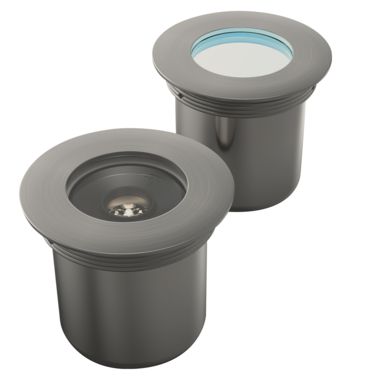

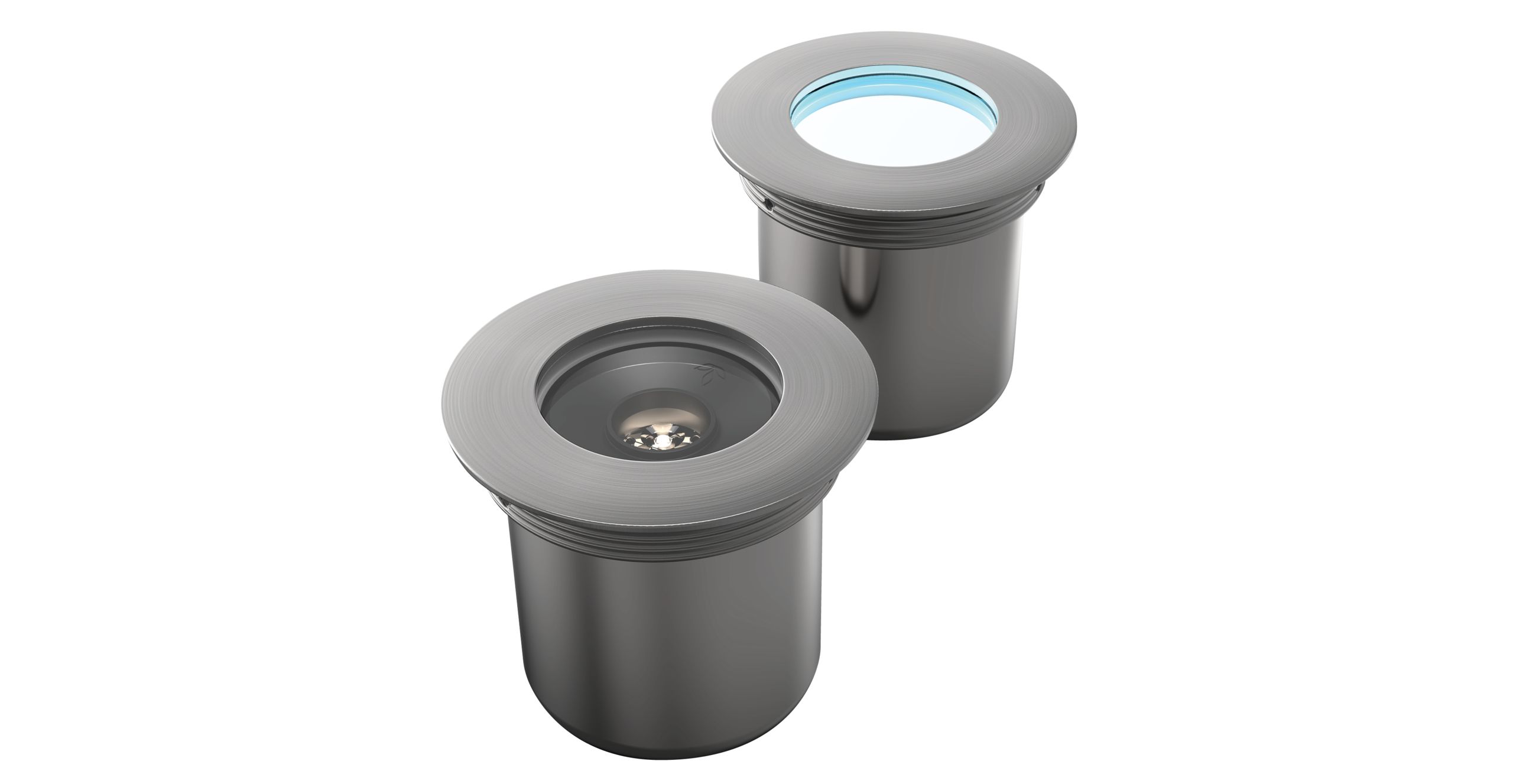

The LS563LED Vedi is a marker light featuring a luminous surface with uniform brightness. A 3W version is also available, suitable for directional applications requiring a beam of light. Constructed from 316 marine grade stainless steel, the luminaire features an ElectroPolishPlus™ finish for enhanced appearance and corrosion protection.

Specifications

Features

Lumen Output 259lm Power Consumption 3.5W Control Protocol PWM (0-10V, DMX) Diameter 9cm (3.5") Static Load Rating 1,100kg (2,425lb) IP Rating IP68 IK Rating IK7 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White RGB

Product Configurator

Customise Vedi LED VD1 below

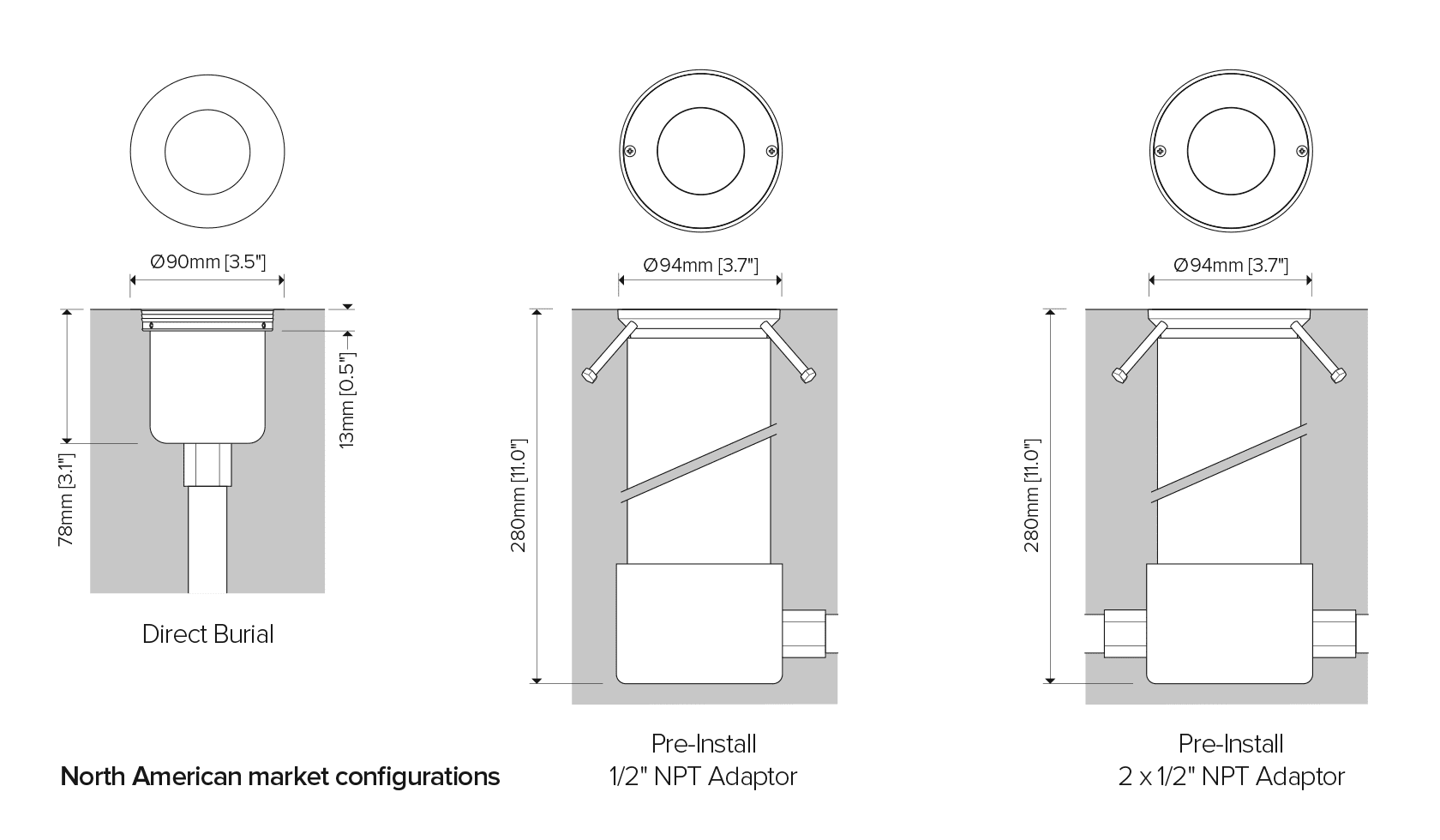

Installation Type

Select the installation type you require.

Direct Burial

Direct Burial

Pre-Installation

Pre-Installation

Power Consumption

Required

1W

1W

3W

3W

Light Source

Required

3,000 K (80 CRI)

3,000 K (80 CRI)

Warm White

4,000 K (80 CRI)

4,000 K (80 CRI)

Cool White

470nm

470nm

Blue

RGB

RGB

Finish

Required

316 Stainless Steel

316 Stainless Steel

Machine Finished

Black

Black

Black powdercoat on Stainless Steel

Anodic Silver

Anodic Silver

Anodic silver powdercoat on Stainless Steel

White

White

White powdercoat on Stainless Steel

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow Medium

Narrow Medium

20º

Medium

Medium

25º

Wide

Wide

40º

Marker

Marker

Marker, diffused lens option

Installation Type

Required

Pre-installation

Direct Burial

Input Voltage

Required

120-277V, 50/60Hz

120-277V, 50/60Hz

Mains Voltage

12V 60Hz or 12-24V DC

12V 60Hz or 12-24V DC

12-15V 60Hz or 12-24V DC

12-15V 60Hz or 12-24V DC

PWM Dimmable Driver

Accessories

Pre-Installation Options

Pre-Install Blockout

Pre-Install Blockout

Includes 1 x 1/2" conduit entry for end of line wiring only. Luminaire comes with 1ft (0.3m) hook-up wire

Pre-Install Blockout

Pre-Install Blockout

Includes 2 x 1/2" conduit entry for end of line wiring only. Luminaire comes with 1ft (0.3m) hook-up wire

Power Supplies / Transformers

12W 24V Power Supply

12W 24V Power Supply

12W wet locations power supply with 24V output for use with LS6133 0-10V to PWM converter only.

96W 24V Power Supply

96W 24V Power Supply

96W power supply with 24V output for dimmable applications

Luminaire Control Protocols

Refer to wiring diagrams for compatability

0-10V to PWM Translator

0-10V to PWM Translator

Translate standard 0-10V to PWM control signals

DMX to PWM Translator

DMX to PWM Translator

Translate standard DMX-512 to PWM control signals
