New Products, Facade, Downlight
Kololux K8
Product Overview

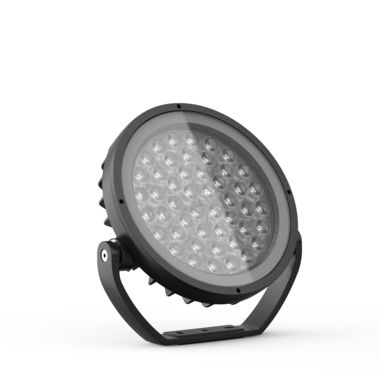

Kompass technology provides the ability to rotate elliptical beams through 360°, helping to illuminate angled and curved architectural features, sculptural objects and organic natural elements with ease, the technology also provides flexibility in difficult mounting applications enabling the fitting to be mounted on uneven and angled surfaces while providing vertical or horizontal illumination. Packed with additional features including EasyGlow™ visual comfort, CoolDrive™ thermal management technologies and PowerSync,™ allowing for
highly granular digital control via common protocols.
Features
Lumen Output 8,250 lm
Power Consumption ≤ 84 W
Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported)
Typical Lifetime (TM21 Projected) 86,935 hours @ 50°C Ambient (B10, L90, TM21 Projected)
Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz
Control Interface PowerSync
Control Protocol DMX/RDM, Artnet (Ethernet Based), PWM, 0-10 V (sink or source)
IP Rating IP66 / IP67 (Passes IP68 Test)
IK Rating IK10
Vibration Resistance 3G Rating (ANSI 136.31) With Optional 3G Bracket
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Accessories
| LS6252 | Cross Hatch Louver |
| LS6253 | 30º Visor |
| LS6254 | Snoot |
| LS6317 | 3.0" (76 mm) Pole Clamp |
| LS6318 | 4.0" (102 mm) Pole Clamp |
| LS6319 | 4.5" (114 mm) Pole Clamp |
| LS6320 | 5.0" (127 mm) Pole Clamp |
| LS6258 | Pole/Wall Mount Arm |
| LS6402C | Leader Cable Line Voltage 1.5mm² |
| LS6404C | Jumper Cable Line Voltage 1.5mm² |
| LS6540 | PowerSync™ Data Injector Gen 2 (Mains Voltage) |
| LS6550 | Data Injector PS4 (Low Voltage) |
