Vedita LED VE2

VE2
LS9402LED

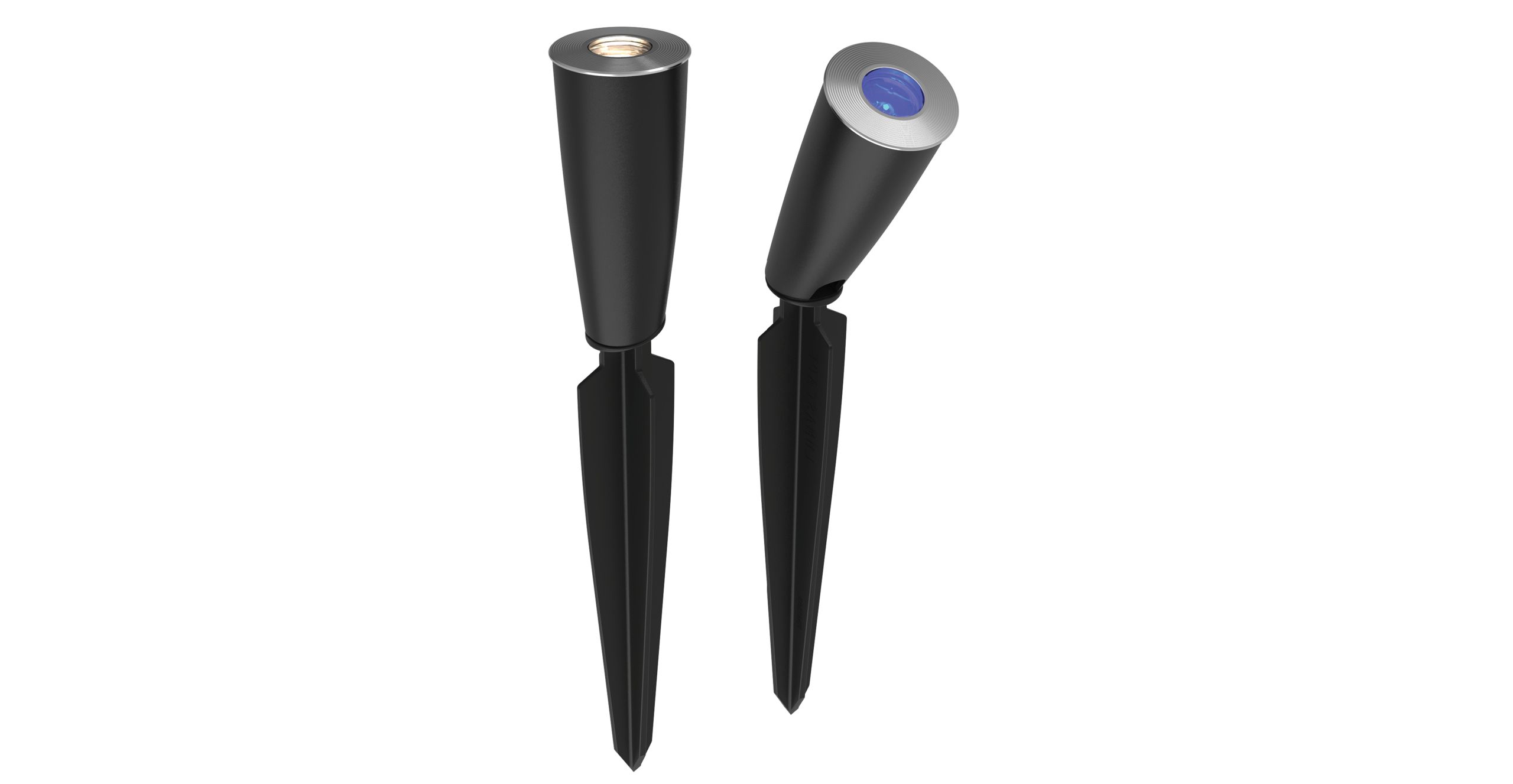

A versatile low-voltage stake mount luminaire with spike
Configure this product

Product Overview

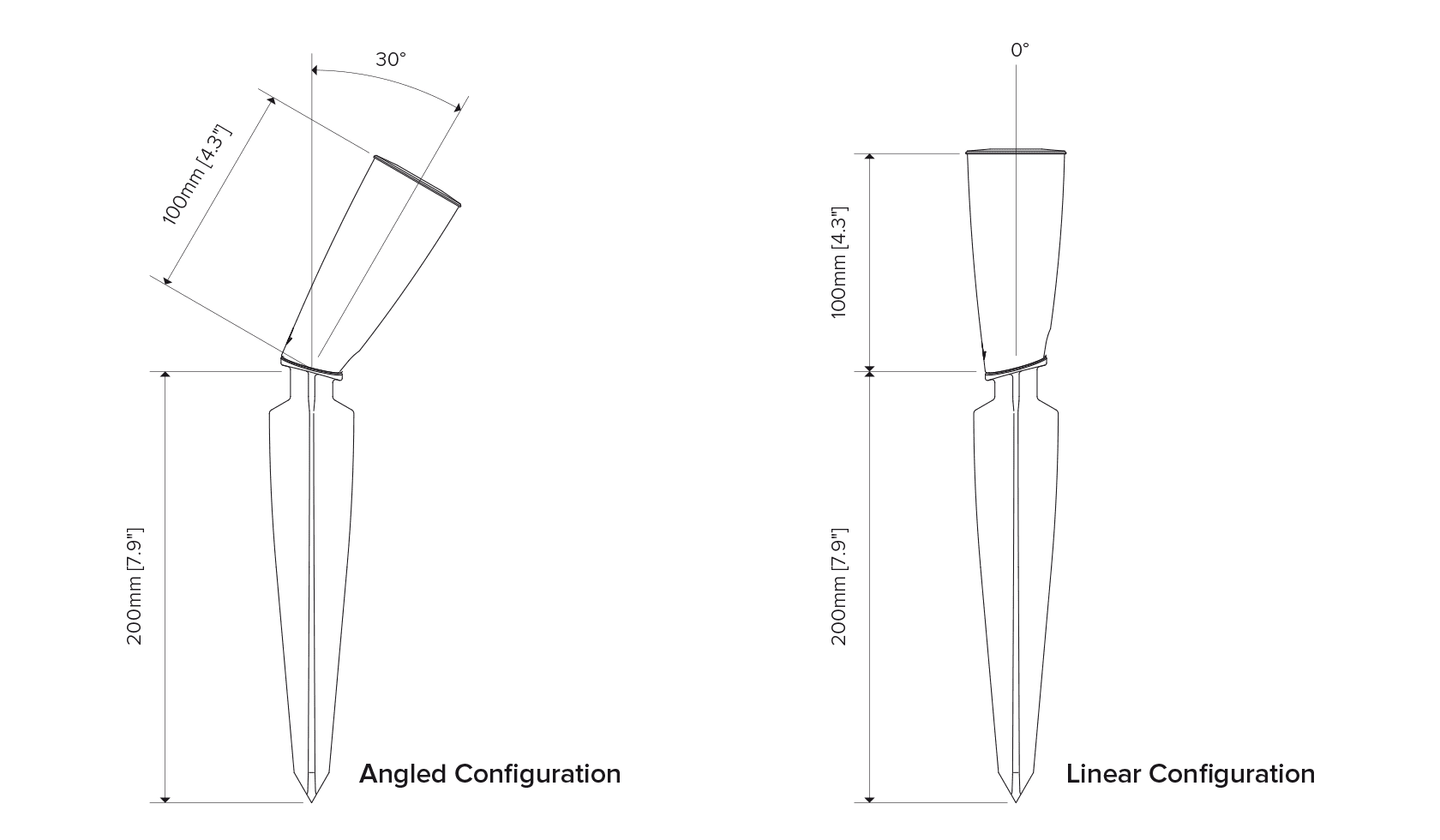

The LS9402LED Vedita is a brilliant LED stake-mounted accent, and features options for dimming control. When high output is required, you can deploy the Vedita in its full output 2W configuration. If a dot of light is required, it can be set as low as 0.2W (either by the factory or in the field). Alternatively, you can dynamically dim the Vedita through Lumascape’s D5 driver technology. This luminaire also comes with a stake that can be set at 0° or 30° to suit any landscape or planter application. Constructed in part from 316 marine grade stainless steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlus™ surface treatment as standard.

Features

Lumen Output 180lm Power Consumption 2.8 W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP68 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White

Product Configurator

Customise Vedita LED VE2 below

Power Consumption

Required

1W

1W

2W

2W

Light Source

Required

3,000 K (80 CRI)

3,000 K (80 CRI)

Warm White

4,000 K (80 CRI)

4,000 K (80 CRI)

Cool White

470nm

470nm

Blue

Finish

Required

316 Stainless Steel

316 Stainless Steel

Machine Finished

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow

Narrow

14º

Medium

Medium

20º

Wide

Wide

30º

Wide

Wide

35°

Linear Horizontal

Linear Horizontal

10º x 40º

Flood

Flood

Input Voltage

Required

12-15V 60Hz or 12-24V DC

12-15V 60Hz or 12-24V DC

PWM Dimmable Driver

Tilt

Required

Standard

Cable Length

Required

6ft

6ft

Flexible rubber cable

Accessories

Power Supplies / Transformers

96W 24V Power Supply

96W 24V Power Supply

96W, 24V output

12W 24V Power Supply

12W 24V Power Supply

12W wet locations power supply with 24V output for use with LS6133 0-10V to PWM converter only.

Control Translator

Refer to wiring diagrams for compatability

DMX to PWM Translator

DMX to PWM Translator

Translate standard DMX-512 to PWM control signals

0-10V to PWM Translator

0-10V to PWM Translator

Translate standard 0-10V to PWM control signals
