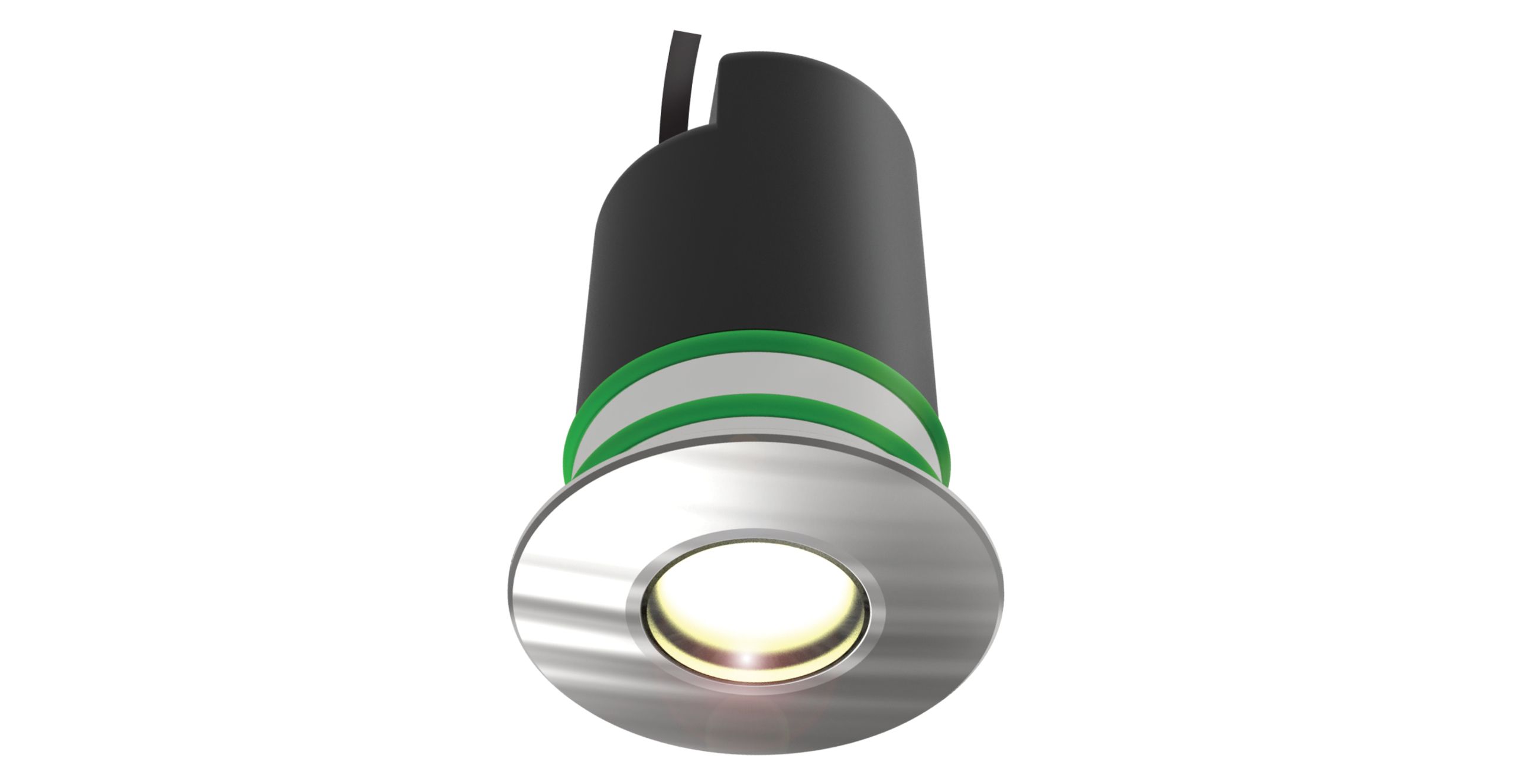

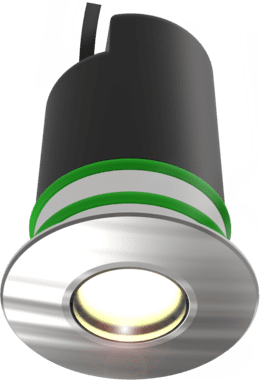

Vedita LED VE4 - LS9404LED

A versatile, low-voltage downlight luminaire

Product Overview

The LS9404LED Vedita provides a quick, simple and low profile method of retaining the luminaire into a ceiling or wall cavity. It features advanced dimming and control via new Lumascape d5 driver technology: when high output is required, it can be deployed in its full output, 2W configuration; if a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed. Constructed in part from 316 marine grade stainless steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlus™ surface treatment as standard, or optional powder coated white.

Features

Lumen Output 180lm Power Consumption 2.8W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP65 Compliance ETL - USA & Canada CE Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Product Configurator

Customise Vedita LED VE4 below

Light Engine

Required

1 W (1)

2 W (2)

Light Source

Required

Static White (D7)

Static White (D7)

2,700 K (80 CRI, 3 SDCM)

Static White (H6)

Static White (H6)

3,000 K (80 CRI, 3 SDCM)

Static White (W4)

Static White (W4)

4,000 K (80 CRI, 3 SDCM)

Single Color (B4)

Single Color (B4)

Blue (470 nm)

Finish

Required

316 Stainless Steel (SS)

316 Stainless Steel (SS)

Machined finished with ElectroPolishPlus™ surface treatment

White (WT)

White (WT)

White powder coat

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Linear (LN)

Linear (LN)

10° x 40°

Marker (FL)

Marker (FL)

Diffused lens

Input Voltage

Required

12-15 Vac, 60 Hz or 12-24 Vdc (23)

12-15 Vac, 60 Hz or 12-24 Vdc (23)

PWM Dimmable Driver

Tilt

Required

Standard (U)

Vertical, 0° tilt

Wall Wash (W)

Not applicable with Flood (FL) beam

Cable Length

Required

6 ft (006)

Flexible rubber cable

26 ft (026)

Flexible rubber cable

50 ft (050)

Flexible Rubber cable

65 ft (065)

Flexible rubber cable

82 ft (082)

Flexible rubber cable
