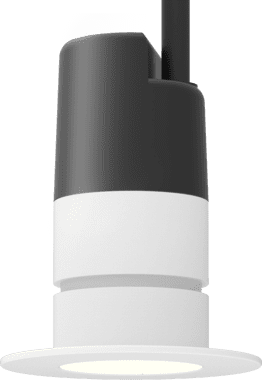

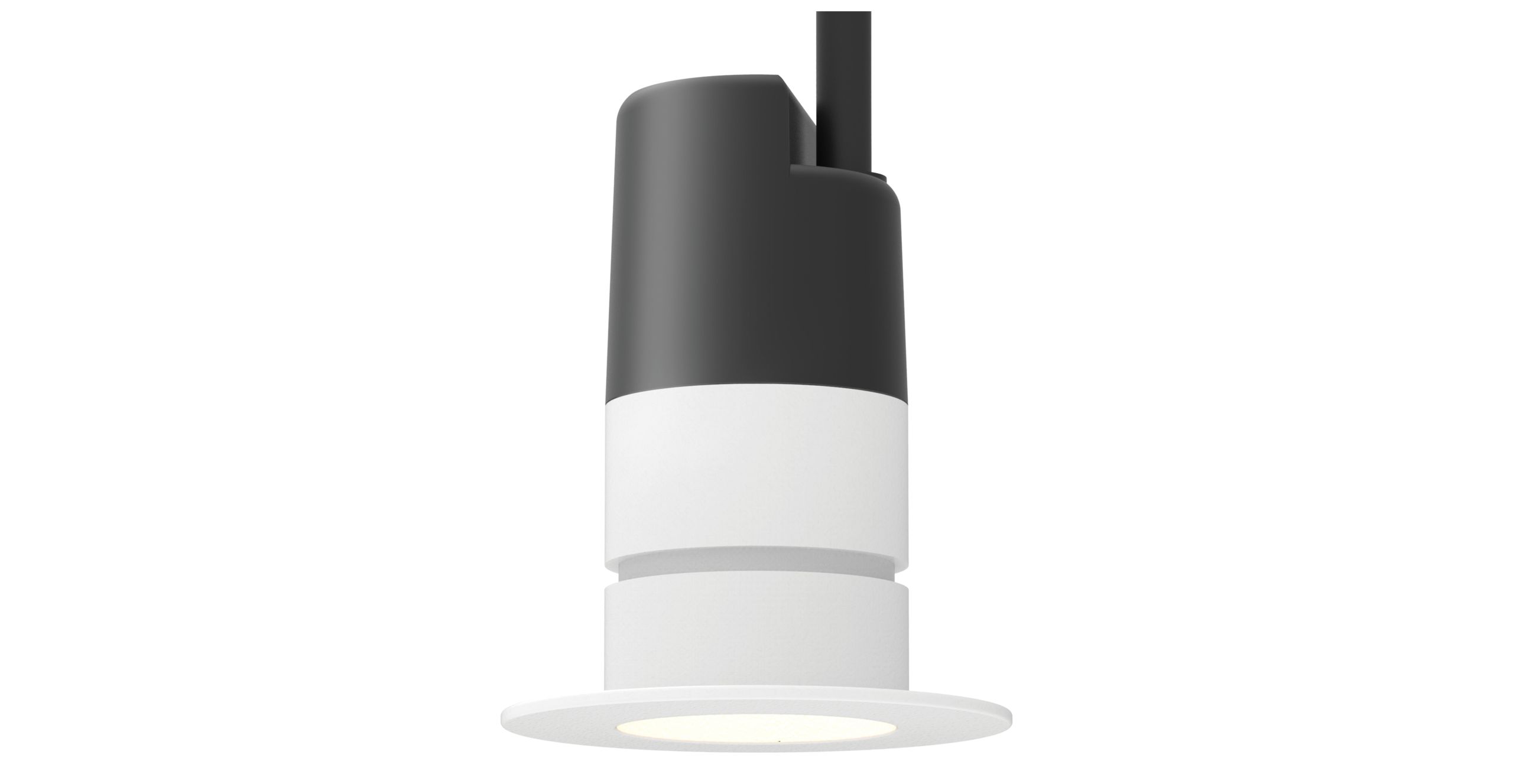

Vedita LED VE7

VE7
LS9407LED
A versatile, low-voltage downlight luminaire
Configure this product

Product Overview

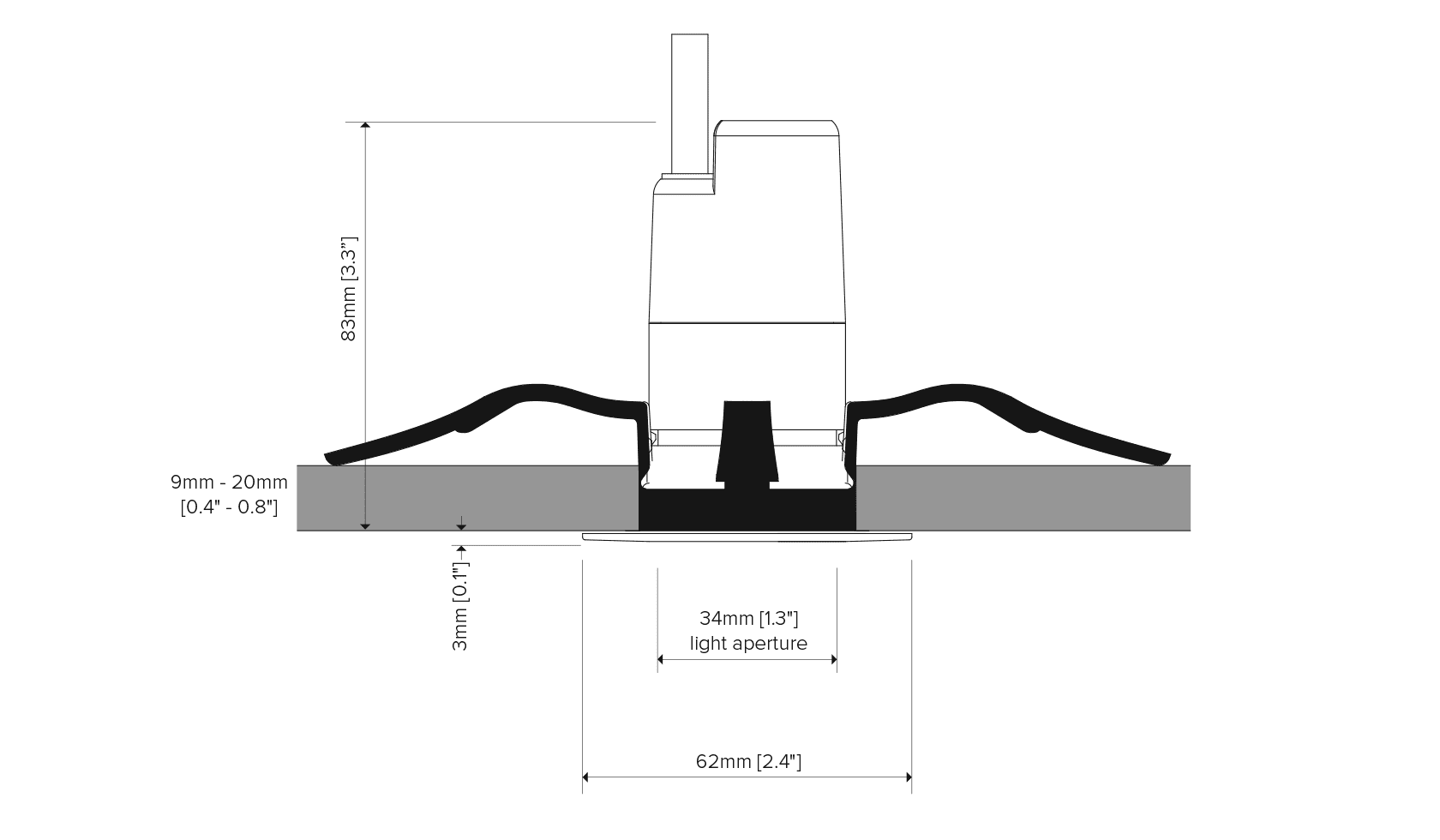

The LS9407LED Vedita provides a quick, simple and low-profile method of retaining the luminaire into a ceiling, and features advanced dimming and control via new Lumascape d5 driver technology: when high output is required, it can be deployed in its full output, 2W configuration; if a source of low intensity light is required, it can be set as low as 0.2W, (either by the factory or in the field). Alternatively, the luminaire can be dynamically dimmed. Constructed in part from either marine grade aluminum with powder-coated finish, or 316 marine grade stainless steel.

Specifications

Features

Lumen Output 180lm Power Consumption 2.8W Control Protocol PWM (0-10V, DMX, DALI) IP Rating IP65 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White

Product Configurator

Customise Vedita LED VE7 below

Power Consumption

Required

1W

1W

2W

2W

Light Source

Required

3,000 K (80 CRI)

3,000 K (80 CRI)

Warm White

4,000 K (80 CRI)

4,000 K (80 CRI)

Cool White

470nm

470nm

Blue

Finish

Required

316 Stainless Steel

316 Stainless Steel

Machine Finished

Black

Black

Black powdercoat on Stainless Steel

Anodic Silver

Anodic Silver

Anodic silver powdercoat on Stainless Steel

White

White

White powdercoat on Stainless Steel

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow

Narrow

14º

Medium

Medium

20º

Wide

Wide

30º

Linear Horizontal

Linear Horizontal

40º x 10º

Flood

Flood

Input Voltage

Required

12-15V 60Hz or 12-24V DC

12-15V 60Hz or 12-24V DC

PWM Dimmable Driver

Tilt

Required

Standard

Wall Wash

Not applicable with Flood (FL) beam

Cable Length

Required

6ft

6ft

Flexible rubber cable

Accessories

Power Supplies / Transformers

12W 24V Power Supply

12W 24V Power Supply

12W wet locations power supply with 24V output for use with LS6133 0-10V to PWM converter only.

96W 24V Power Supply

96W 24V Power Supply

96W power supply with 24V output for dimmable applications

Luminaire Control Protocols

Refer to wiring diagrams for compatability

0-10V to PWM Translator

0-10V to PWM Translator

Translate standard 0-10V to PWM control signals

DMX to PWM Translator

DMX to PWM Translator

Translate standard DMX-512 to PWM control signals
