Magnolia LED MA1

MA1
LS722LED
A compact and adjustable wall grazer
Configure this product

Product Overview

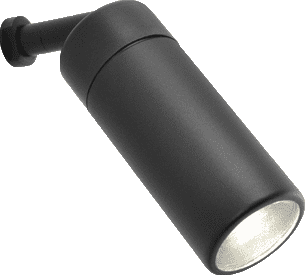

The LS722LED Magnolia is a compact, adjustable, direct or indirect accent used for grazing walls or other accent illumination tasks. Installation is via ½” NPT, making it ideal for halogen retrofit and new construction alike. The luminaire is constructed from either copper or powder coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

THIS LUMINAIRE IS ONLY AVAILABLE IN NORTH AMERICA

Features

Lumen Output 403lm Power Consumption 6W Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance ETL - USA & Canada Colour Options BIM Blue Cool White Warm White Download Datasheet

Product Configurator

Customise Magnolia LED MA1 below

Light Engine

Required

6W (6)

6W (6)

Light Source

Required

3,000K, 80 CRI (H6)

3,000K, 80 CRI (H6)

Warm White (80 CRI, 3 SDCM)

4,000K, 80 CRI (W4)

4,000K, 80 CRI (W4)

Cool White (80 CRI, 3 SDCM)

470nm (B4)

470nm (B4)

Blue

Beam Angles

Published angles may vary slightly to photo-metric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

Required

12V 60Hz or 12-24V DC (13)

12V 60Hz or 12-24V DC (13)

12-15V, 60Hz or 12-24V DC (23)

12-15V, 60Hz or 12-24V DC (23)

PWM Dimmable Driver

Finish

Required

Black (BL)

Black (BL)

Black powder coat

Anodic Silver (SL)

Anodic Silver (SL)

Anodic silver powder coat

Polished Copper (CU)

Polished Copper (CU)

Accessories

Tree Mount

Available in Black Powercoat finish

2 luminaires, tree dia up to 13" (LS6141-24-2)

Constructed of high-grade aluminium, the tree ring holds TWO luminaires and is suited for trees from 7”- 13” in diameter.

2 luminaires, tree dia up to 19" (LS6141-30-2)

Constructed of high-grade aluminium, the tree ring holds TWO luminaires and is suited for trees from 13”- 19” in diameter.

2 luminaires, tree dia up to 25" (LS6141-36-2)

Constructed of high-grade aluminium, the tree ring holds TWO luminaires and is suited for trees from 19”- 25” in diameter.

3 luminaires, tree dia up to 13" (LS6141-24-3)

Constructed of high-grade aluminium, the tree ring holds THREE luminaires and is suited for trees from 7”- 13” in diameter.

3 luminaires, tree dia up to 19" (LS6141-30-3)

Constructed of high-grade aluminium, the tree ring holds THREE luminaires and is suited for trees from 13”- 19” in diameter.

3 luminaires, tree dia up to 25" (LS6141-36-3)

Constructed of high-grade aluminium, the tree ring holds THREE luminaires and is suited for trees from 19”- 25” in diameter.

4 luminaires, tree dia up to 13" (LS6141-24-4)

Constructed of high-grade aluminium, the tree ring holds FOUR luminaires and is suited for trees from 7”- 13” in diameter.

4 luminaires, tree dia up to 19" (LS6141-30-4)

Constructed of high-grade aluminium, the tree ring holds FOUR luminaires and is suited for trees from 13”- 19” in diameter.

4 luminaires, tree dia up to 25" (LS6141-36-4)

Constructed of high-grade aluminium, the tree ring holds FOUR luminaires and is suited for trees from 19”- 25” in diameter.
